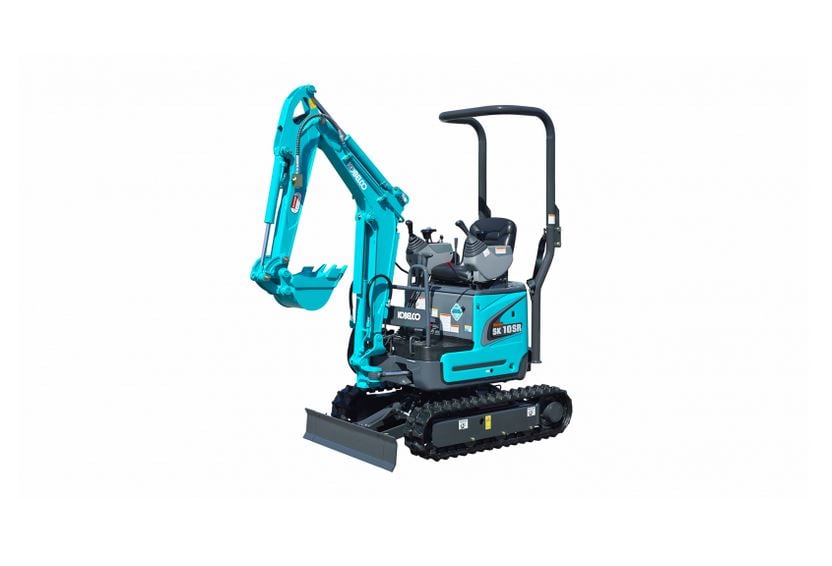

SK 10 SR 2E Kobelco excavator specs & dimensions (2019 - 2026)

Kobelco SK 10 SR 2E is a mini excavator manufactured since 2019. It has a weight of 1.07 tons and a track width of 180 mm. The tra…

Kobelco SK 10 SR 2E is a mini excavator manufactured since 2019. It has a weight of 1.07 tons and a track width of 180 mm. The transport dimensions are 2.88 meters in length, 0.75 meters in width, and 1.44 meters in height. The machine features a tear-out force of 6.2 kN, a dredging depth of 1.75 meters, and a maximum horizontal reach of 3.3 meters. The bucket capacity is 0.022 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Visit Kobelco live at

SK 10 SR 2E

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - SK 10 SR 2E Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.07 t

Transport length: 2.88 m

Transport width: 0.75 m

Transport height: 1.44 m

Bucket capacity max.: 0.022 m³

Track width: 180 mm

Driver protection: Ü

Max. Reach horizontal: 3.3 m

Dredging depth: 1.75 m

Tear-out force: 10.8 kN

Engine manuf.: Yanmar

Engine type: 2TNV70-WYB

Engine power: 6.1 kW

Displacement: 0.569 l

Revolutions at max torque: 1500 rpm

Max. torque: 31.7 Nm

No. of cylinders: 2

Emission level: V

More technical details, like: bucket capacity, bucket capacity min., bucket width, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Kobelco SK 10 SR 2E FAQ

When was the Kobelco SK 10 SR 2E manufactured?

The Kobelco SK 10 SR 2E was first produced in 2019.

How much does the Kobelco SK 10 SR 2E weigh?

The Kobelco SK 10 SR 2E weighs 1.07 tons.

What are the transport dimensions of the Kobelco SK 10 SR 2E mini excavator?

The Kobelco SK 10 SR 2E has a transport length of 2.88 meters, a transport width of 0.75 meters, and a transport height of 1.44 meters.

What is the track width of the Kobelco SK 10 SR 2E mini excavator?

The Kobelco SK 10 SR 2E mini excavator has a track width of 180 mm.

What are the dredging depth and maximum horizontal reach of the Kobelco SK 10 SR 2E mini excavator?

The Kobelco SK 10 SR 2E mini excavator has a dredging depth of 1.75 meters and a maximum horizontal reach of 3.3 meters.

What is the tear-out force of the Kobelco SK 10 SR 2E?

The Kobelco SK 10 SR 2E has a tear-out force of 6.2 kN.

What is the maximum bucket capacity of the Kobelco SK 10 SR 2E mini excavator?

The Kobelco SK 10 SR 2E mini excavator has a maximum bucket capacity of 0.02 cubic meters.

What operator safety features does the Kobelco SK 10 SR 2E have?

The Kobelco SK 10 SR 2E is equipped with a roll-over bar for driver protection.

How much is a Kobelco SK 10 SR 2E Mini excavator (2019u20132025) worth?

The residual value of the Kobelco SK 10 SR 2E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kobelco SK 10 SR 2E overview

Kobelco SK 10 SR 2E features overview

Compact yet Big Performance
The combination of side sticks digging function and short tail radius makes it easy to dig alongside walls with a compact operating footprint.
Retractable Crawlers
By operating a simple lever, crawlers can be easily retracted and retracted. The SK10SR is able to go through tight as 750 mm wide spaces that can be used on a variety of urban and industrial sites. Retracted: 750mm
Requires 1.8 m of Working Space Easy Extended/Retracted Blade
With a working radius of 180 m from 1.8 m, SK10SR only needs space for digging, swinging and loading continuously. Dozer blade with pin-type hinge can be easily pulled out/retracted. For residential areas and industrial spaces you need a machine that can maneuver and swing within a compact radius. The SK10SR is designed to do just that, with smooth, powerful control and great stability. Although small in size it gives you all the power and durability you'll expect and makes the job fast! Front overhang 38mm Swing left hand side

Dimensions and weight

hTravel Speed (high/low) km/h	3.7/2.0	Unnamed: 0	Unnamed: 1
Swing Speed min-1{rpm}	9.0
Swing Torque kN•m	1.61
Gradeability % (degree)	58 (30)
Drawbar Pulling Force kN	10.2
Bucket Digging Force kN	10.8
Arm Crowding Force kN	6.2	d
WEIGHT
Machine Mass kg	1	065"	e
Ground Pressure kPa	28.0
Shoe Width mm	180
Shoe Type	Rubber	f
ENGINE
			i
Model	YANMAR 2TNV70-WYB

Type	Swirl-chamber	water cooled	4-cycle
	2-cylinder	diesel engine"	gc
(ISO 9249) kW/min-1 (rpm)	5.9/2	000"
Power Output NET
(ISO 14396) kW/min-1 (rpm)	6.1/2	000"
(ISO 9249) N•m/min-1 (rpm)	31.2/1	500"
Max. Torque NET
(ISO 14396) N•m/min-1 (rpm)	31.7/1	500"
Displacement L	0.569
Fuel Tank L	10.0		Unit: mm
HYDRAULIC SYSTEM		MODEL	SK10SR

Pump	Two variable displacement pumps +		Standard

	Unit: mm
MODEL	SK10SR
Arm	Standard
0.925 m
a- Max. digging reach	3	300"
b- Max. digging reach at ground level	3	210"
c- Max. digging depth	1	750"
d- Max. digging height	3	160"
e- Max. dumping clearance	2	320"
f- Min. dumping clearance	740
g- Max. vertical wall digging depth	1	460"
h- Min. swing radius (at boom swing)	1	390 (1	050)"
i- Dozer blade (height/depth)	190/240

Tables

MODEL		SK10SR
Type		SK10SR-2E
PERFORMANCE
Bucket Capacity ISO heaped	m3	0.022
Travel Speed (high/low)	km/h	3.7/2.0
Swing Speed	min-1{rpm}	9.0
Swing Torque	kN•m	1.61
Gradeability	% (degree)	58 (30)
Drawbar Pulling Force	kN	10.2
Bucket Digging Force	kN	10.8
Arm Crowding Force	kN	6.2
WEIGHT
Machine Mass	kg	1	065"
Ground Pressure	kPa	28.0
Shoe Width	mm	180
Shoe Type	Rubber

Model		YANMAR 2TNV70-WYB
Type			Swirl-chamber	water cooled	4-cycle	2-cylinder	diesel engine"
Power Output NET	(ISO 9249)	kW/min-1 (rpm)	5.9/2	000"
(ISO 14396)	kW/min-1 (rpm)	6.1/2	000"
Max. Torque NET	(ISO 9249)	N•m/min-1 (rpm)	31.2/1	500"
(ISO 14396)	N•m/min-1 (rpm)	31.7/1	500"
Displacement		L	0.569
Fuel Tank		L	10.0


HYDRAULIC SYSTEM
Pump		Two variable displacement pumps + one gear pump
Max. Discharge Flow	L/min	2 x 11.0	6.0"
Relief Valve Setting	MPa	20.6
Hydraulic Oil Tank (system)	L	9.8 (14.2)
DOZER BLADE
Width x Height	mm	750/980 x 200
Working Ranges (height/depth)	mm	190/240
SIDE DIGGING MECHANISM
Type		Boom swing

SK10SR		Standard arm: 0.925 m	Bucket: without Rubber shoe: 180 mm Dozer blade: up
	A	1.0 m	1.5 m	2.0 m	2.5 m	At Max. Reach	Radius
B
2.5 m	kg									230	200	1.98 m
2.0 m	kg					*200	200			160	140	2.46 m
1.5 m	kg					220	190	150	130	130	110	2.73 m
1.0 m	kg			340	290	210	190	150	130	120	100	2.85 m
0.5 m	kg			310	270	200	170	140	120	120	100	2.86 m
G. L.	kg	*350	*350	300	260	200	170	140	120	120	100	2.76 m
-0.5 m	kg	650	520	300	260	190	170	140	120	140	120	2.52 m
-1.0 m	kg	660	530	310	260	200	170			190	160	2.09 m

SK10SR	Short arm: 0.75 m Bucket: without	Rubber shoe: 180	mm Dozer blade: up
	A	1.0 m	1.5 m	2.0 m	2.5 m	At Max. Reach	Radius

B
2.5 m	kg										*300	260	1.68 m
2.0 m	kg					230	200			180	160	2.25 m
1.5 m	kg			*310		*310	220	190	150	130	150	130	2.55 m
1.0 m	kg			340	290	210	190	150	130	130	120	2.68 m
0.5 m	kg			310	260	200	180	150	130	130	110	2.69 m
G. L.	kg			310	260	200	170	140	120	140	120	2.58 m
-0.5 m	kg	660	530	310	260	200	170			160	140	2.32 m
-1.0 m	kg			320	270					*230	200	1.81 m
