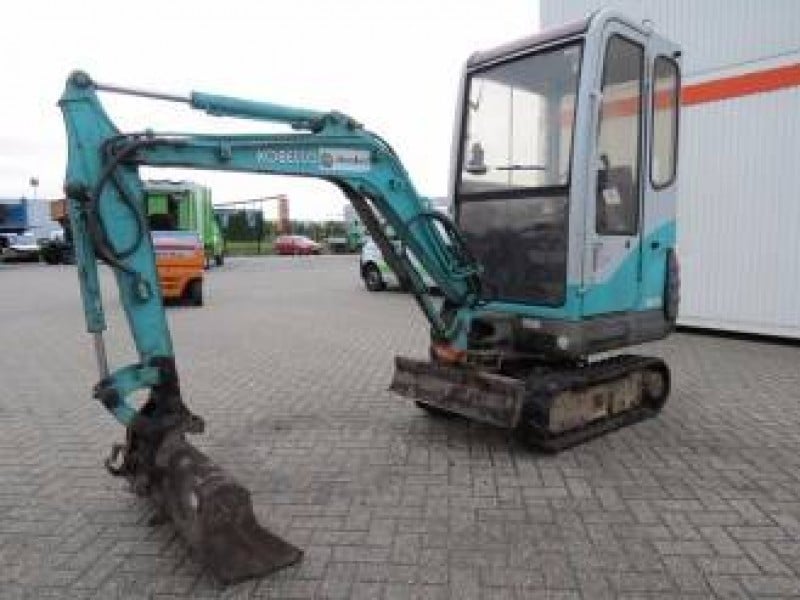

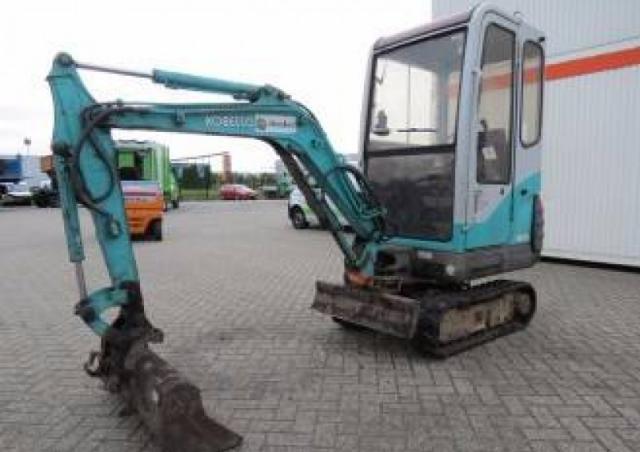

SK 015 Kobelco excavator specs & dimensions (2000 - 2003)

Kobelco SK 015 is a mini excavator manufactured from 2000 to 2003, with a weight of 1.55 t. It features a track width of 230 mm an…

Kobelco SK 015 is a mini excavator manufactured from 2000 to 2003, with a weight of 1.55 t. It features a track width of 230 mm and a transport width of 0.98 m. The bucket capacity is 0.04 m³. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Kobelco SK 015

Visit Kobelco live at

Technical specs - SK 015 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.55 t
Transport width
0.98 m
Bucket capacity
0.04 m³
Track width
230 mm
Engine manuf.
Yanmar
Engine type
3TNA72L
Engine power
12 kW
Displacement
0.88 l
Revolutions at max torque
2550 rpm

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh...

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Kobelco SK 015 FAQ

When was the Kobelco SK 015 manufactured?

The Kobelco SK 015 was manufactured from 2000 to 2003.

How much does the Kobelco SK 015 weigh?

The Kobelco SK 015 weighs 1.55 tons.

What is the transport width of the Kobelco SK 015 mini excavator?

The transport width of the Kobelco SK 015 mini excavator is 0.98 meters.

What is the track width of the Kobelco SK 015 mini excavator?

The Kobelco SK 015 mini excavator has a track width of 230 mm.

What is the bucket capacity of the Kobelco SK 015 mini excavator?

The Kobelco SK 015 mini excavator has a bucket capacity of 0.04 cubic meters.

How much is a Kobelco SK 015 Mini excavator (2000u20132003) worth?

The residual value of the Kobelco SK 015 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
