8055 ZTS JCB excavator specs & dimensions (2008 - 2017)

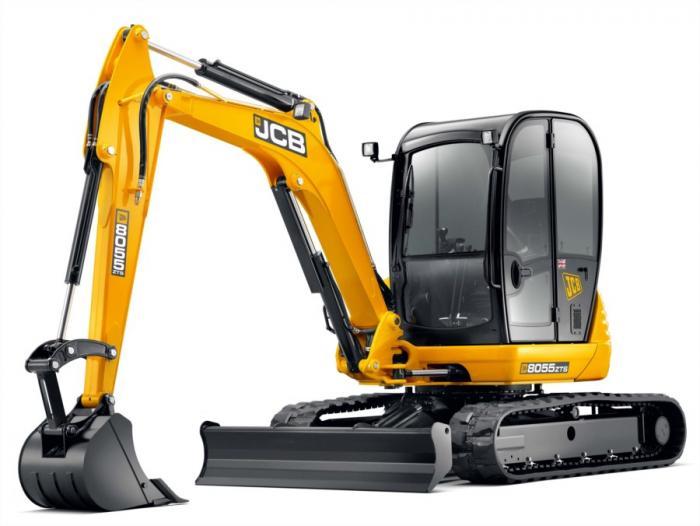

JCB 8055 ZTS is a mini excavator manufactured from 2008 to 2017, with a weight of 5 tons. It features a track width of 400 mm, a t…

JCB 8055 ZTS is a mini excavator manufactured from 2008 to 2017, with a weight of 5 tons. It features a track width of 400 mm, a transport length of 5.15 meters, a transport width of 2 meters, and a transport height of 2.56 meters. The dredging depth is 3.956 meters, and it comes equipped with a blade and rubber tracks.

Mini Excavators JCB 8055 ZTS

Visit JCB live at

Technical specs - 8055 ZTS JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5 t
Transport length
5.15 m
Transport width
2 m
Transport height
2.56 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.05 m
Dredging depth
3.956 m
Tear-out force
27.8 kN
Engine manuf.
Isuzu
Engine type
4 LE 1
Engine power
34.1 kW
Displacement
2.18 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 8055 ZTS FAQ

When was the JCB 8055 ZTS manufactured?

The JCB 8055 ZTS was manufactured from 2008 to 2017.

How much does the JCB 8055 ZTS weigh?

The JCB 8055 ZTS weighs 5 tons.

What are the transport dimensions of the JCB 8055 ZTS mini excavator?

The JCB 8055 ZTS has a transport length of 5.15 meters, a transport width of 2 meters, and a transport height of 2.56 meters.

What is the track width of the JCB 8055 ZTS mini excavator?

The JCB 8055 ZTS mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the JCB 8055 ZTS mini excavator?

The JCB 8055 ZTS mini excavator has a dredging depth of 3.956 meters and a maximum horizontal reach of 6.05 meters.

What is the power rating of the JCB 8055 ZTS mini excavator?

The power rating of the JCB 8055 ZTS mini excavator is not provided in the available data.

What operator safety features does the JCB 8055 ZTS have?

The JCB 8055 ZTS has a cabin for driver protection.

How much is a JCB 8055 ZTS Mini excavator (2008u20132017) worth?

The residual value of the JCB 8055 ZTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 8055 ZTS overview

Dimensions and weight

mm (ft-in)
A Sprocket idler centres – rubber1991 (6-6)
Sprocket idler centres – steel2006 (6-7)
B Undercarriage overall length – rubber2516 (8-3)
Undercarriage overall length – steel2531 (8-4)
C Kingpost clearance682 (2-3)
D Tailswing radius1055 (3-5)
E Overall width of superstructure1800 (5-11)
mm (ft-in)
F Height over cab2563 (8-5)
G Ground clearance340 (1-1)
H Track gauge1600 (5-3)
I Width over tracks2000 (6-7)
J Transport length with standard dipper5153 (16-11)
K Transport height2758 (9-1)
L Track height650 (2-2)
ExternalInternal
Cab/canopy height with FOGS guardmm (ft-in)2563 (8-5)1550 (5-1)
Cab/canopy height no FOGS guardmm (ft-in)2575 (8-5¼)1550 (5-1)
Cab height with air conditioningmm (ft-in)2706 (8-10½)1550 (5-1)
Cab height no air conditioningmm (ft-in)2575 (8-5¼)1550 (5-1)
Cab/canopy lengthmm (ft-in)1328 (4-4)1187 (3-11)
Cab/canopy widthmm (ft-in)980 (3-2½)933 (3-1)
Distance from seat base to roofmm (ft-in)1570 (5-2)1570 (5-2)
Door aperture widthmm (ft-in)564 (1-10)564 (1-10)
Operating weight*kg (lb)5300 (11660)
Transport weightkg (lb)5225 (11495)
With canopykg (lb)-80.0 (-176.0)
With FOGS guardkg (lb)+25 (+55)
With short 1500mm dipperkg (lb)-18 (-40)
DOZER BLADE
Max height (above ground)mm (ft-in)432 (1-5)
Dig depth (below ground)mm (ft-in)553 (1-9¾)
Approach angledegrees27.5
Widthmm (ft-in)2020 (6-7½)
Heightmm (ft-in)411 (1-4)
Reach in front of tracksmm (ft-in)721.4 (2-4½)
Boom lengthmm (ft-in)2500 (8-2)2500 (8-2)
Dipper lengthmm (ft-in)1500 (4-11)1900 (6-3)
A Max digging reachmm (ft-in)5754 (18-11)6142 (20-1)
B Max digging reach on groundmm (ft-in)5664 (18-7)6025 (19-9)
C Max digging depth – dozer upmm (ft-in)3357 (11-0)3764 (12-4)
C Max digging depth – dozer downmm (ft-in)3575 (11-9)3973 (13-3)
D Max digging heightmm (ft-in)5241 (17-2)5528 (18-1)
E Max dump heightmm (ft-in)3817 (12-6)4102 (13-5)
F Max height to dipper nose pivot pinmm (ft-in)4499 (14-9)4785 (15-8)
G Max vertical wallcut depthmm (ft-in)2159 (7-9)2510 (8-3)
H Min. front swing radius (no offset)mm (ft-in)2474 (8-2)2474 (8-2)
H Min. front swing radius (fully offset)mm (ft-in)2186 (7-2)2186 (7-2)
I Boom swing leftdegrees61
J Boom swing rightdegrees58
Bucket rotationdegrees193
Dipper rotationdegrees126
Bucket tearoutkN (lbf)42.2 (9486.9)42.2 (9486.9)
Dipper tearoutkN (lbf)32.8 (7373.7)27.8 (6249.7)
Slew speedrpm10

Tables

PumpLoad sensing variable displacement
Nominal output (@ rated)lpm163
Nominal outputUS gal/min43
Excavator/track main reliefbar (psi)250 (3626)
Slew main reliefbar (psi)220 (3191)
Auxiliary hydraulic flowlitres (US gal)90 (23.8)
Auxiliary low flowlitres (US gal)25 (6.6)
Auxiliary high flowlitres (US gal)140 (37)
Hydraulic motorsPiston
ModelIsuzu 4LE-1NA Tier 3
FuelDiesel
CoolingWater Cooled
Gross powerkW (hp) @ 2600 rpm35.9 (48.1)
Net powerkW (hp) @ 2600 rpm34.1 (45.7)
Gross torqueNm (lbf ft) @ 1800 rpm140 (103)
Net torqueNm (lbf ft) @ 1800 rpm134.4 (99.1)
Displacementcc2179
Gradeabilitydegrees35
Batteryvolt/Ah12 / 75
Alternatoramps80
SERVICE CAPACITIES
Fuel tanklitres (US gal)68 (18)
Engine coolantlitres (US gal)13.5 (3.56)
Engine oillitres (US gal)9 (2.3)
Hydraulic systemlitres (US gal)98 (25.88)
Hydraulic tanklitres (US gal)55 (14.52)
No of bottom rollers (per side)5
Track widthmm (in)400 (15¾)
Ground bearing pressurekg/cm² (psi)0.333 (4.73)
Ground clearancemm (in)340 (1-1)
Track tensioningGrease
Travel speed – lowkph (mph)2.7 (1.7)
Travel speed – highkph (mph)5.1 (3.2)
Tractive effortkN (lbf)60.7 (13645.9)
Load Point2.5m (8ft 2½in)3m (9ft 10in)3.5m (11ft 5in)4m (13ft 1in)4.5m (14ft 8in)Capacity at maximum reach
内点
HeightDozer upDozer downDozer upDozer downDozer upDozer downDozer upDozer downDozer upDozer downDozer upDozer down
m (ft-in)kgkgkgkgkgkgkgkgkgkgkgkgkgkgkgkgkgkgm (ft-in)
2.5 (8-2½)844*9788438361035836603*941513*5.1 (16-7)
2.0 (6-6)976*1235976*957*1191926723*1096723*613*950486*5.27 (17-3)
1.5 (4-11)1301164413871050*13941050*837*1248764*685*1157685*562*970476*5.31 (17-4)
1 (3-3)1306*19591146*1046*15681046*843*1358746*681*1238681*540*983468*5.37 (17-6)
0.5 (1-8)1157*21331086*1024*17331024*756*1453716*660*1287660*531*1004456*5.3 (17-4)
Ground Level1501*28231389*1220*23011070*1066*18661066*811*1567705*778*1388778*603*1025490*5.2 (17-0)
0.5 – (1-8) –1503*29041353*1260*23791020*1071*20531071*881*1638683*740*1359740*647*1033509*5.0 (16-4)
1 – (3-3) –1510*28751260*1091*2275973*996*1844996*752*1588655*696*1234696*570*1037525*4.8 (15-7½)
EEC NOISE LEVELS (95/27/EC DYNAMIC)
Cab / canopy externaldB (LwA)96
Cab internaldB (LpA)76
