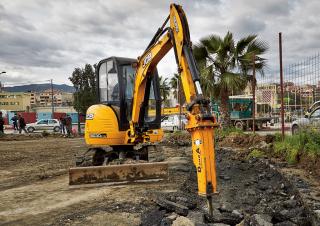

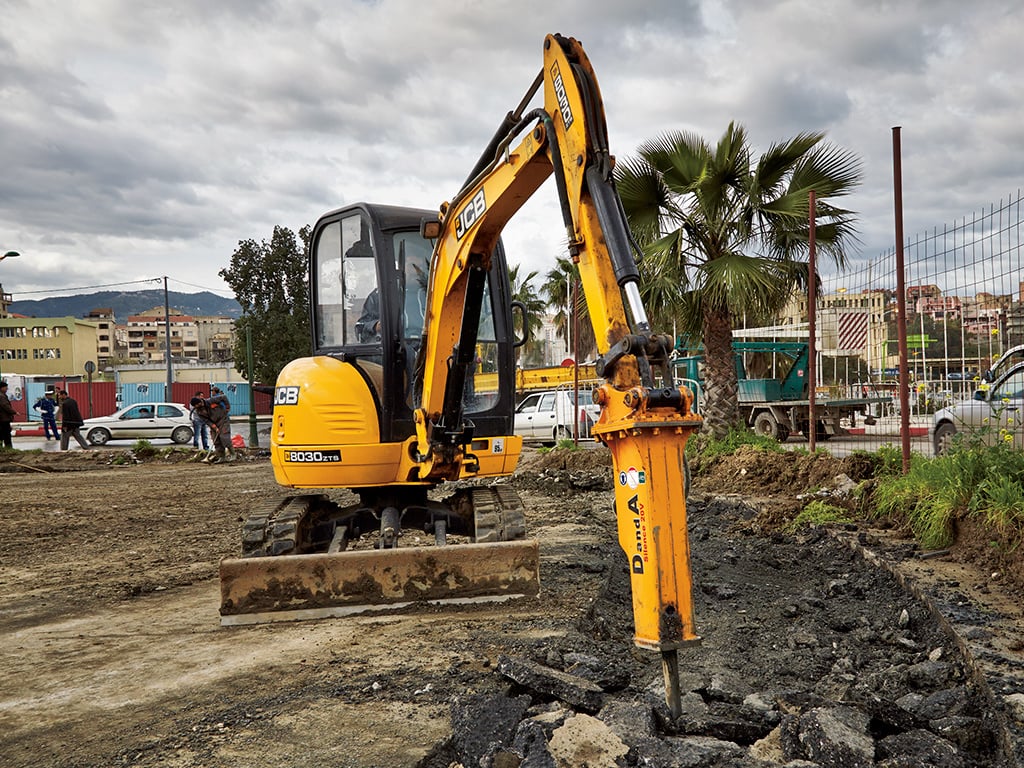

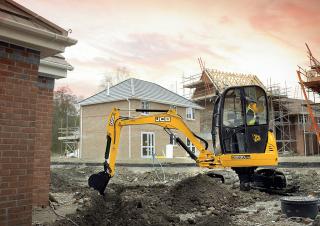

JCB 8030 ZTS is a mini excavator manufactured from 2006 to 2020, with a weight of 3.22 tons. It features a track width of 300 mm, …

JCB 8030 ZTS is a mini excavator manufactured from 2006 to 2020, with a weight of 3.22 tons. It features a track width of 300 mm, a transport length of 4.29 meters, a transport width of 1.65 meters, and a transport height of 2.43 meters. The machine has a tear-out force of 28 kN and a maximum horizontal reach of 4.9 meters. It comes with a bucket capacity of 0.11 cubic meters and includes special equipment such as a blade and rubber tracks.

Visit JCB live at

8030 ZTS

Years of manufacture: 2006—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 8030 ZTS JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.22 t

Transport length: 4.29 m

Transport width: 1.65 m

Transport height: 2.43 m

Bucket capacity: 0.11 m³

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 4.9 m

Dredging depth: 3.12 m

Tear-out force: 28 kN

Engine manuf.: Perkins

Engine type: 403D-15

Engine power: 20 kW

Displacement: 1.496 l

Revolutions at max torque: 1600 rpm

Max. torque: 92 Nm

Emission level: III A

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

JCB 8030 ZTS FAQ

When was the JCB 8030 ZTS manufactured?

The JCB 8030 ZTS was manufactured from 2006 to 2020.

How much does the JCB 8030 ZTS weigh?

The JCB 8030 ZTS weighs 3.22 tons.

What are the transport dimensions of the JCB 8030 ZTS mini excavator?

The JCB 8030 ZTS has a transport length of 4.29 meters, a transport width of 1.65 meters, and a transport height of 2.43 meters.

What is the track width of the JCB 8030 ZTS mini excavator?

The JCB 8030 ZTS mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the JCB 8030 ZTS mini excavator?

The JCB 8030 ZTS mini excavator has a dredging depth of 3.12 meters and a maximum horizontal reach of 4.9 meters.

What is the tear-out force of the JCB 8030 ZTS mini excavator?

The JCB 8030 ZTS mini excavator has a tear-out force of 28 kN.

What is the bucket capacity of the JCB 8030 ZTS mini excavator?

The JCB 8030 ZTS mini excavator has a bucket capacity of 0.11 cubic meters.

What operator safety and support features does the JCB 8030 ZTS have?

The JCB 8030 ZTS provides operator protection through a cabin.

How much is a JCB 8030 ZTS Mini excavator (2006u20132020) worth?

The residual value of the JCB 8030 ZTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 8030 ZTS overview

Dimensions and weight

Machine model		8025 ZTS	8030 ZTS	8035 ZTS	Machine model		8025 ZTS	8030 ZTS	8035 ZTS
A Sprocket idler centres	mm (ft-in)	1440 (4-8¾)	1597 (5-3)	1707 (5-6¼)	G Ground clearance	mm (ft-in)	300 (1-0)	300 (1-0)	300 (1-0)
B Undercarriage overall length	mm (ft-in)	1895 (6-2½)	2052 (6-8¾)	2176 (7-7)	H Track gauge	mm (ft-in)	1252 (5-1¼)	1352 (5-1¼)	1450 (4-7)
C Kingpost clearance	mm (ft-in)	615 (2-0¼)	615 (2-0¼)	600 (2-0)	I Width over tracks	mm (ft-in)	1502 (4-11)	1652 (5-5)	1750 (5-9)
D Tailswing radius	mm (ft-in)	750 (3-5½)	800 (3-7½)	850 (2-9½)	J Transport length	mm (ft-in)	4280 (14-0½)	4287 (14-0¾)	4462 (14-7¾)
E Overall width of superstructure	mm (ft-in)	1550 (5-1)	1650 (5-5)	1656 (5-5)	K Transport height	mm (ft-in)	2470 (8-1¼)	2470 (8-1¼)	2475 (8-1½)
F Height over cab	mm (ft-in)	2470 (8-1¼)	2470 (8-1¼)	2470 (8-1¼)	L Track height	mm (ft-in)	455 (1-6)	500 (1-7½)	470 (1-6½)

Machine Model		8025 ZTS
Boom length	mm (ft-in)	2130 (7-0)
Dipper length	mm (ft-in)	1100 (3-7¼)
A Max digging reach	mm (ft-in)	4828 (15-10)
B Max digging reach on ground	mm (ft-in)	4691 (15-4½)
C Max digging depth – dozer up	mm (ft-in)	2580 (8-5½)
Max digging depth – dozer down	mm (ft-in)	2832 (9-3½)
D Max digging height	mm (ft-in)	4333 (14-2½)
E Max dump height	mm (ft-in)	3158 (10-4¼)
F Max height to dipper nose pivot pin	mm (ft-in)	3700 (12-1½)
G Max vertical wallcut depth	mm (ft-in)	1542 (5-0¾)
H Min. front swing radius (no offset)	mm (ft-in)	2125 (6-11½)
Min. front swing radius (fully offset)	mm (ft-in)	1912 (6-3¼)
I Boom swing left	degrees	45
J Boom swing right	degrees	60
Bucket rotation	degrees	189
Dipper rotation	degrees	118.5
Bucket tearout	kN (lbf)	24 (5395)
Dipper tearout	kN (lbf)	15 (3372)
Slew speed	rpm	9.6

Machine Model		8030 ZTS
Boom length	mm (ft-in)	2130 (7-0)
Dipper length	mm (ft-in)	1300 (4-2¼)
A Max digging reach	mm (ft-in)	5031 (16-6)
B Max digging reach on ground	mm (ft-in)	4901 (16-1)
C Max digging depth – dozer up	mm (ft-in)	2794 (9-2)
Max digging depth – dozer down	mm (ft-in)	3119 (10-2¾)
D Max digging height	mm (ft-in)	4453 (14-71 ⁄4)
E Max dump height	mm (ft-in)	3205 (10-6)
F Max height to dipper nose pivot pin	mm (ft-in)	3808 (12-6)
G Max vertical wallcut depth	mm (ft-in)	1741 (5-8½)
H Min. front swing radius (no offset)	mm (ft-in)	2150 (7-0½)
Min. front swing radius (fully offset)	mm (ft-in)	2010 (6-7)
I Boom swing left	degrees	45
J Boom swing right	degrees	60
Bucket rotation	degrees	186
Dipper rotation	degrees	119
Bucket tearout	kN (lbf)	28 (6295)
Dipper tearout	kN (lbf)	17 (3822)
Slew speed	rpm	9.6

Machine Model		8035 ZTS
Boom length	mm (ft-in)	2330 (7-8)
Dipper length	mm (ft-in)	1525 (4-0)
A Max digging reach	mm (ft-in)	5436 (17-9½)
B Max digging reach on ground	mm (ft-in)	5315 (17-5)
C Max digging depth – dozer up	mm (ft-in)	3179 (10-5)
Max digging depth – dozer down	mm (ft-in)	3512 (11-6½)
D Max digging height	mm (ft-in)	4601 (15-2)
E Max dump height	mm (ft-in)	3482 (11-5)
F Max height to dipper nose pivot pin	mm (ft-in)	4009 (13-8¾)
G Max vertical wallcut depth	mm (ft-in)	2165 (7-1¼)
H Min. front swing radius (no offset)	mm (ft-in)	2492 (8-2)
Min. front swing radius (fully offset)	mm (ft-in)	1630 (5-4½)
I Boom swing left	degrees	45
J Boom swing right	degrees	60
Bucket rotation	degrees	186
Dipper rotation	degrees	119
Bucket tearout	kN (lbf)	32 (7193)
Dipper tearout	kN (lbf)	20 (4496)
Slew speed	rpm	9.6

MACHINE WEIGHTS
Machine model		8025 ZTS	8030 ZTS	8035 ZTS
Operating weight*	kg (lb)	2685 (5919)	3217 (7092)	3651 (8032)
Transport weight	kg (lb)	2610 (5754)	3142 (6927)	3576 (7868)
With canopy	kg (lb)	100 - (220.5) -	100 - (220.5) -	100 - (220.5) -
With FOGS guard	kg (lb)	+ 36 + (79)	+ 36 + (79)	+ 36 + (79)
With steel tracks	kg (lb)	+ 60 + (132)	+ 70 + (154)	+ 70 + (154)
With long dozer	kg (lb)	+ 24 + (53)	N/A	N/A
With suspension seat	kg (lb)	+ 12 + (26.5)	N/A	N/A

Machine model		8025 ZTS	8030 ZTS	8035 ZTS
Max height (above ground)	mm (ft-in)	340 (1-1½)	414 (1-4¼)	413 (1-4)
Dig depth (below ground)	mm (ft-in)	398 (1-3½)	622 (2-0½)	629 (2-0¾)
Approach angle	degrees	35	24.5	24.5
Width	mm (ft-in)	1550 (5-1)	1650 (5-5)	1734 (5-8)
Height	mm (ft-in)	335 (1-1)	335 (1-1)	326 (1-0¾)
Reach in front of tracks	mm (ft-in)	322 (1-0½)	681 (2-2¾)	668 (2-2½)

Tables

	8025 ZTS	8030 ZTS	8035 ZTS
Pump		2 Variable & 1 Gear	2 Variable & 1 Gear	2 Variable & 1 Gear
Nominal output	lpm	102	102	110
Nominal output	US gal/min	26.9	26.9	29.1
Excavator/track main relief	bar (psi)	220 (3191)	245 (3553)	245 (3553)
Slew main relief	bar (psi)	190 (2756)	190 (2756)	190 (2756)
Auxiliary hydraulic flow	litres (US gal)	58 (15.3)	58 (15.3)	69 (18.2)
Hydraulic motors		Piston	Piston	Piston

Machine Model	8025 & 8030 ZTS	8035 ZTS
Model	403D-IS Tier 3	403D-IS Tier 3
Fuel		Diesel	Diesel
Cooling		Water cooled	Water cooled
Gross power	kW (hp) @ 2200 rpm	20.9 (28)	23.6 (38.5)
Nett power	kW (hp) @ 2200 rpm	20 (26.8)	22.7 (30.44)
Gross torque	Nm (lbf ft) @ 1600 rpm	96 (70.8)	106.3 (78.4)
Nett torque	Nm (lbf ft) @ 1600 rpm	92 (67.9)	102.3 (75.45)
Displacement	cc	1496	1663
Gradeability	degrees	36	36
Starter motor	kW (hp)	2 (2.68)	2 (2.68)
Battery	volt/Ah	12 / 75	12 / 75
Alternator	amps	65	65

Machine model		8025 ZTS	8030 ZTS	8035 ZTS
No of bottom rollers		3	4	4
Track width	mm (in)	250 (10)	300 (12)	300 (12)
Ground bearing pressure	kg/cm2	0.31	0.33	0.36
Ground clearance	mm (in)	300 (12)	300 (12)	300 (12)
Track tensioning		Grease	Grease	Grease
Travel speed – low	kph (mph)	2.4 (1.5)	2.4 (1.5)	2.4 (1.5)
Travel speed – high	kph (mph)	4.3 (2.7)	4.3 (2.7)	4.3 (2.7)
Tractive effort	kN (lbf)	24.6 (5530)	27.3 (6137)	32 (7194)

Height	Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down
m (ft-in)	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg
2.0 (6-7)				593*	610*	626*	578*	617*	606*	390	623*	431	315	596*	330
1.5 (4-11)	954*	1031*	996*	617	846*	676	490	755*	522	386	697*	414	312	668*	315
1 (3-3)	800	1366*	846	606	1061*	614	465	878*	486	388	854*	407	306	711*	307
0.5 (1-8)	720	1579*	800	534	1205*	636	476	996*	481	367	849*	397	315	741*	313
Ground Level	660	1679*	787	529	1444*	604	438	1066*	483	361	883*	386	301	740*	522
-0.5 -(1-8)	684	1804*	759	555	1466*	577	446	1125*	475	378	922*	390	337	819*	337
-1 -(3-3)	691	1693*	772	499	1321*	585	401	1117*	481	361	935*	399	362	859*	385

Load Point	2.5m (8ft 2½in)	3.0m (9ft 10in)	3.5m (11ft 6in)	4.0m (13ft 1in)	Capacity at maximum reach

Height	Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down
m (ft-in)	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	mm (ft-in)
2.0 (6-7)				390	627*	372	281	599*	278				218	599*	222	3900 (12-9½)
1.5 (4-11)	473	987*	454	360	783*	338	270	675*	259	210	635*	207	210	635*	207	4000 (13-1)
1 (3-3)	458	1218*	420	326	863*	319	259	735*	243	199	655*	199	190	647*	188	4100 (13-5½)
0.5 (1-8)	420	1342*	399	323	1019*	307	259	811*	237	214	711*	188	214	711*	188	4100 (13-5½)
Ground Level	420	1422*	398	326	1107*	302	259	871*	239		735*		214	735*	207	4100 (13-5½)
-0.5 -(1-8)	401	1302*	405	326	1103*	306	259	851*	240				235	775*	225	3650 (12-0)
-1 -(3-3)	420	1286*	390	319	959*	294							270	767*	257	3300 (10-10)

Load Point	2.5m (8ft 2½in)	3.0m (9ft 10in)	3.5m (11ft 6in)	4.0m (13ft 1in)	Capacity at maximum reach
					山										内50
Height	Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down
m (ft-in)	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	mm (ft-in)
2.0 (6-7)							450	587*	405	356	605*	323	353	600*	323	4000 (13-1)
1.5 (4-11)	717	1188*	660	544	840*	518	428	675*	405	353	639*	319	319	635*	319	4000 (13-1)
1 (3-3)	728	1266*	653	544	917*	503	420	774*	386	341	683*	315	303	666*	293		4280 (14-0½)
0.5 (1-8)	690	1543*	608	521	1068*	458	420	866*	371	341	746*	308	300	696*	293		4220 (13-10)
Ground Level	638	1531*	596	495	1157*	454	413	940*	364	338	761*	304	323	770*	304	4100 (13-5½)
-0.5 -(1-8)	602	1509*	570	473	1187*	446	405	922*	364				343	783*	323		3880 (12-8¾)
-1 -(3-3)	615	1488*	563	495	1262*	420	413	848*	353				413	848*	353		3500 (11-6)

Load Point

2.5m (8ft 2½in)

3.0m (9ft 10in)

3.5m (11ft 6in)

4.0m (13ft 1in)

Capacity at maximum reach

Machine model		8025 ZTS	8030 ZTS	8035 ZTS
Fuel tank	litres (US gal)	40 (10.6)	40 (10.6)	40 (10.6)
Engine coolant	litres (US gal)	8.5 (2.5)	8.5 (2.5)	8.5 (2.5)
Engine oil	litres (US gal)	4.5 (1.2)	4.5 (1.2)	4.5 (1.2)
Hydraulic system	litres (US gal)	70 (18.5)	70 (18.5)	70 (18.5)
Hydraulic tank	litres (US gal)	45 (11.9)	45 (11.9)	45 (11.9)

Machine Model		8025	8030 & 8035 ZTS"
Cab/canopy height	mm (ft-in)	1517 (4-11¾)
Cab/canopy length	mm (ft-in)	1205 (3-11½)
Cab/canopy width	mm (ft-in)	980 (3-2½)
Door aperture width	mm (ft-in)	532 (1-9)

Machine model		8025 ZTS	8030 ZTS	8035 ZTS
Cab / canopy external	dB (LwA)	95	95	95
Cab internal	dB (LpA)	77	77	77

Events

Visit JCB live at

SteinExpo 2026

Homberg/Nieder-Ofleiden, Germany

September 2 — 5

Machine inspection

Ask for inspection of your JCB 8030 ZTS from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we monitor price information since 40 years and using this infromation, we can support you with price comparison of used mini excavators, such as JCB 8030 ZTS.

Check what new and used models of mini excavators you can get in each price range:

Data provided by

Compare JCB 8030 ZTS with similar Mini Excavators

JCB 8030 ZTS

Weight:: 3.22 t

Transport length:: 4.29 m

Transport width:: 1.65 m

Transport height:: 2.43 m

Develon DX35Z

Weight:: 3.66 t

Transport length:: 4.645 m

Transport width:: 1.5 m

Transport height:: 2.515 m

Liugong 9035E

Weight:: 3.86 t

Transport length:: 4.81 m

Transport width:: 1.7 m

Transport height:: 2.5 m

Sunward SWE 38

Weight:: 3.8 t

Transport length:: 4.92 m

Transport width:: 1.74 m

Transport height:: 2.54 m

PowerPlus PP35E-IX

Weight:: 3.08 t

Transport length:: 4.51 m

Transport width:: 1.45 m

Transport height:: 2.4 m

Do you want to see more detailed comparison?

Show me!

Check other popular models from Mini Excavators

JCB 8014

Weight:: 1.45 t

JCB 8018

Weight:: 1.75 t

JCB 8008

Weight:: 0.95 t

JCB 8030 ZTS

Weight:: 3.22 t

New Holland E30C

Weight:: 3 t

New Holland E60C

Kubota U17

Weight:: 1.73 t

Kubota K008-3

Weight:: 1 t

John Deere Construction 260

Weight:: 3.584 t

John Deere Construction 50

Weight:: 4.3 t

John Deere Construction 70

Yanmar SV40

Weight:: 4.32 t

Sell JCB 8030 ZTS

Mini Excavators appraisal with LECTURA Valuation

Whether you need to know value of your JCB 8030 ZTS or valuation of your Mini Excavators fleet, LECTURA Valuation will help. Simply fill the equipment details and see the price for Mini Excavators in few clicks.

Valuate right now!

Data provided by

Spare parts & Components

Get spare parts for JCB 8030 ZTS easily from our partners

Do your lookup for high quality parts for JCB 8030 ZTS online!
With a few, easy steps, you will find generic and genuine parts and replacements in well-catalogued lists. Wether you are dealer or an owner, LECTURA can lead you to the right direction.
Check the best offers from our partners and order the Mini Excavators spare parts easily today - worldwide.

Get parts for JCB 8030 ZTS now!

Transport

Mini Excavators Transport & Shipping Services

In case you want to transport your machine, apply our services. Seek for the most appropriate transport quotes for Mini Excavators based on transport dimensions and weights. Our partners offer large-scale services to satisfy your needs.

Ask for transport price

Data provided by

News

Construction News by LECTURA 21.06.2026
