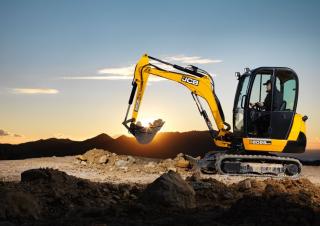

8026 CTS JCB excavator specs & dimensions (2021 - 2024)

JCB 8026 CTS is a mini excavator manufactured since 2021, with a weight of 2.87 tons. It features a track width of 250 mm, a trans…

JCB 8026 CTS is a mini excavator manufactured since 2021, with a weight of 2.87 tons. It features a track width of 250 mm, a transport length of 4.08 meters, a transport width of 1.55 meters, and a transport height of 2.4 meters. The machine has a tear-out force of 23 kN, a dredging depth of 3.05 meters, and a maximum horizontal reach of 4.66 meters. The bucket width is 0.3 meters, and it comes equipped with a blade and rubber tracks.

Mini Excavators JCB 8026 CTS

Visit JCB live at

Technical specs - 8026 CTS JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.87 t
Transport length
4.08 m
Transport width
1.55 m
Transport height
2.4 m
Bucket width
0.3 m
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.66 m
Dredging depth
3.05 m
Tear-out force
23 kN
Engine manuf.
Perkins
Engine type
403J-17
Engine power
18.4 kW
Displacement
1.496 l
Revolutions at max torque
1800 rpm
Max. torque
90.4 Nm
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 8026 CTS FAQ

When was the JCB 8026 CTS manufactured?

The JCB 8026 CTS was manufactured from 2021 to 2024.

How much does the JCB 8026 CTS mini excavator weigh?

The JCB 8026 CTS mini excavator weighs 2.87 tons.

What are the transport dimensions of the JCB 8026 CTS mini excavator?

The JCB 8026 CTS has a transport length of 4.08 meters, a transport width of 1.55 meters, and a transport height of 2.4 meters.

What is the track width of the JCB 8026 CTS mini excavator?

The JCB 8026 CTS mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the JCB 8026 CTS?

The JCB 8026 CTS has a dredging depth of 3.05 meters and a maximum horizontal reach of 4.66 meters.

What is the tear-out force of the JCB 8026 CTS mini excavator?

The JCB 8026 CTS mini excavator has a tear-out force of 23 kN.

What is the bucket width of the JCB 8026 CTS mini excavator?

The bucket width of the JCB 8026 CTS mini excavator is 0.3 meters.

What driver protection feature does the JCB 8026 CTS have?

The JCB 8026 CTS has a cabin for driver protection.

How much is a JCB 8026 CTS Mini excavator (2021u20132024) worth?

The residual value of the JCB 8026 CTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
