JCB 8014 CTS excavator specs (2005 - 2017)

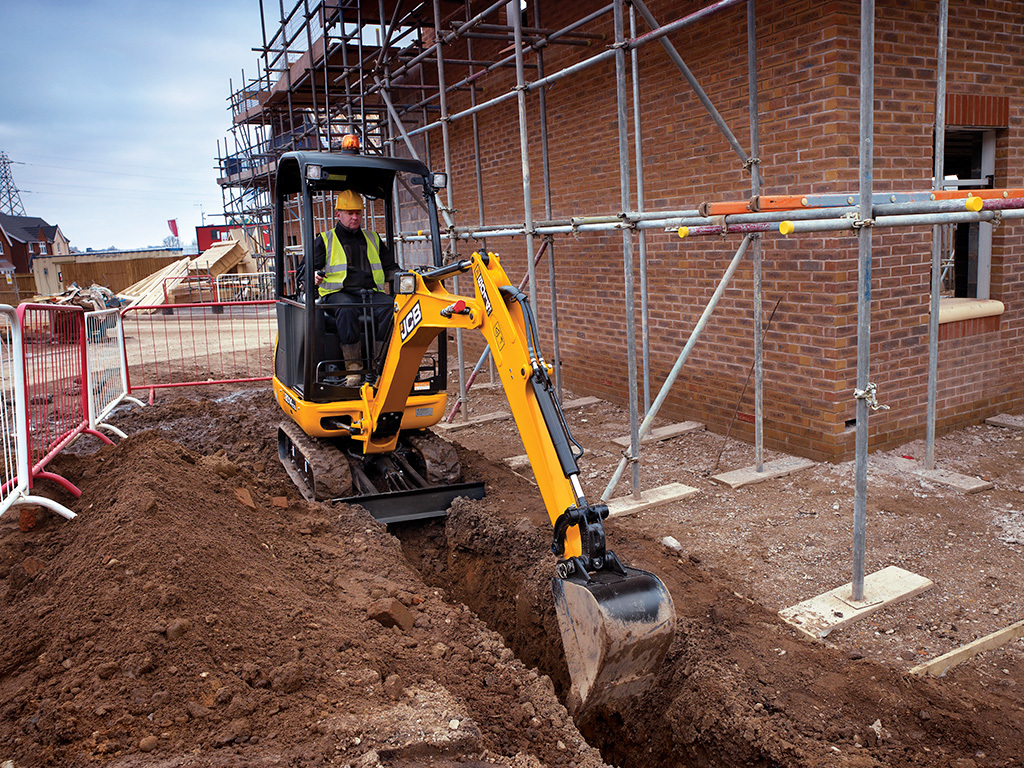

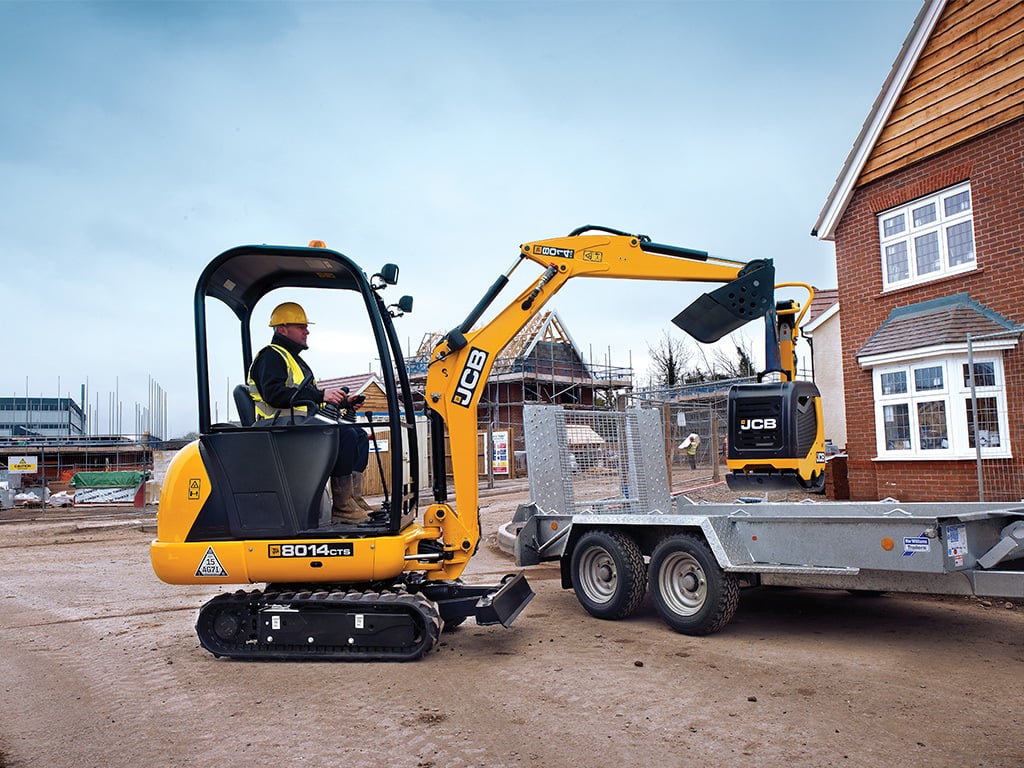

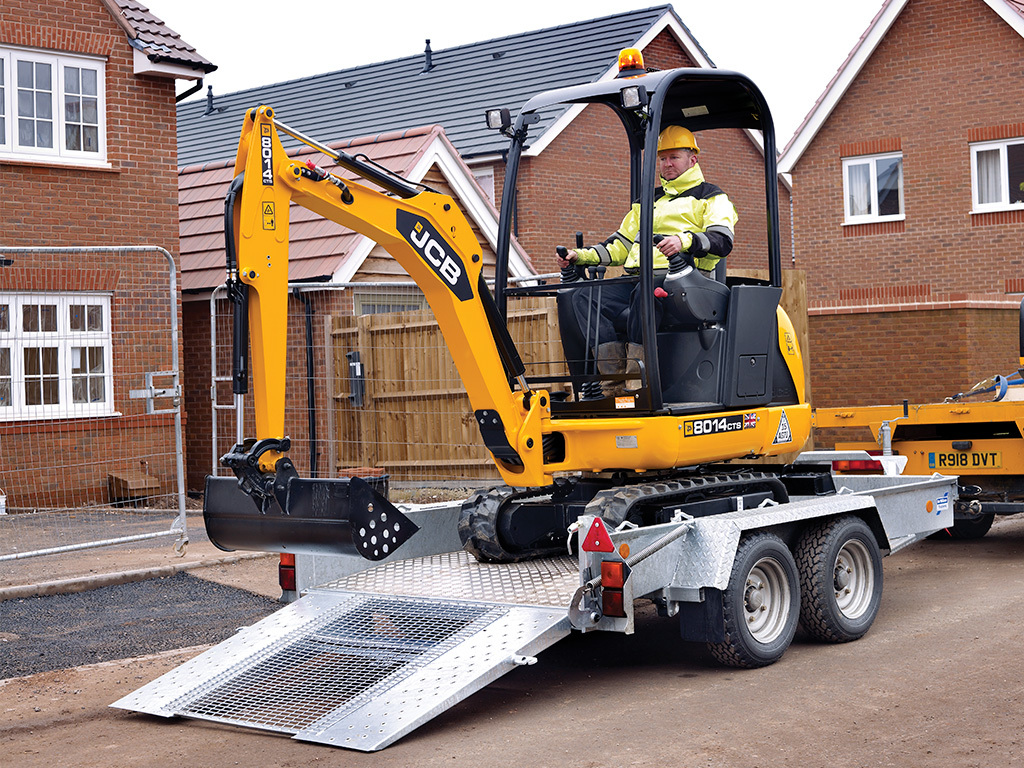

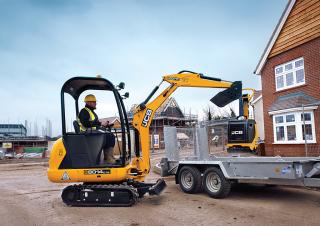

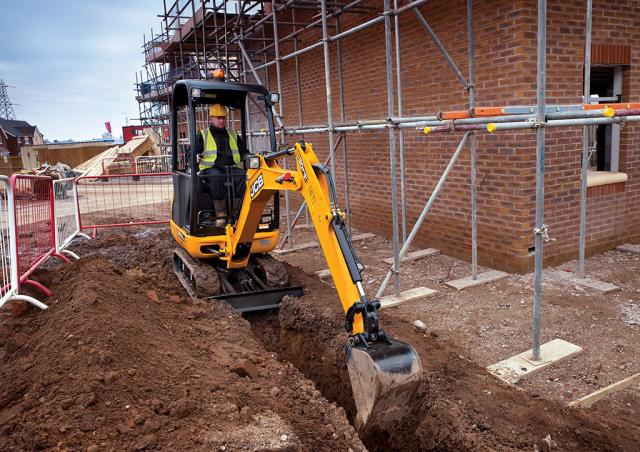

Manufactured by JCB, this is the 8014 CTS mini excavator. Find and download detailed specs and data sheets for this machine here. ... Read more

Manufactured by JCB, this is the 8014 CTS mini excavator. Find and download detailed specs and data sheets for this machine here.

This mini excavator is built to provide up to 14.2kW or 19 horse power, delivered from its powerful Perkins engine to the 1.56t 8014 CTS machine. The 8014 CTS is categorised in the smallest machine segment in the mini excavators category. The model's dimensions are 3.35m x 0.97m x 2.32m. The bucket capacity of 8014 CTS is 0.02m³, which is above average for this type of machine.

The 8014 CTS is manufactured and distributed with Rubber track and Blade. Track adaption, Quick hitch mech. And Quick hitch hydr. Are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original JCB 8014 CTS specs data sheet. Specification sheet is available for a free download in Spanish, French, Italian and English - providing the machine descriptions and more detailed specs about this particular model.

The production is still going in 2017, where this 8014 CTS is available at a new list price between €27000 and €35000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed JCB models of this type on LECTURA Specs are the 8018 CTS, 8030 ZTS and 8026 CTS, and 19 other mini excavators, which currently range from 0.9t up to 5.4t are also available. Ranked in the LECTURA index at #25, this 8014 CTS mini excavator has models that date from 2005 to 2017. Currently, 19 models of the 8014 CTS mini excavator exist, at an average sale value of €11000 at 7 years of age. Want more detailed specifications? Download the latest JCB 8014 CTS specs data sheet on LECTURA Specs today!

Read less

Technical specs
Buy & Rent
Valuate & Sell
Parts & Components
Events & News
Transport
Contacts & Help
Machine inspection

JCB 8014 CTS

Data sheet

Buy & Rent

Valuate & Sell

Spare parts

Reviews

Transport

Events & News

Technical specs - 8014 CTS JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

Weight 1.63 t
Transport length 3.41 m
Transport width 0.97 m
Transport height 2.34 m
Bucket capacity max. 0.02 m³
Bucket width 0.3 m
Track width 230 mm
Driver protection Kb
Max. Reach horizontal 3.97 m
Dredging depth 2.65 m
Tear-out force 13.5 kN
Engine manuf. Perkins
Engine type 403D-11
Engine power 14.2 kW
Displacement 1.131 l
Revolutions at max torque 1600 rpm
Max. torque 64.2 Nm
Emission level Stufe III A

More technical details, like: average fuel consumption, fuel consumption range (min - max), bucket capacity, bucket capacity min., standard tyres, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Rubber track
Blade
Aircondition
Quick hitch hydr.
Quick hitch mech.

Carbon footprint calculator for Mini Excavators

See the ERA equipment CO2 Calculator to find out the CO2 footprint per hour of use of the JCB 8014 CTS or alternative Mini Excavators.

The carbon emission calculation can be carried out using different biofuel scenarios or other variables.

Enter the fuel consumption:

or go to the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

service provided by ERA

Download datasheets (PDF)

Show all 5 Show less

Reviews

8,19/10

Strong little machine

JCB 8014 CTS user from Canada

It's great handy tool

JCB 8014 CTS user from Poland

Because it is yellow

JCB 8014 CTS user from Spain

easy to handle

JCB 8014 CTS user from Sweden

Machine is very good, poverful and economic, cab is very confortable and you can work with it long time.

JCB 8014 CTS user from Croatia

It can keep up with the big boys with ease and very smooth, fast and strong

JCB 8014 CTS user from

Show more reviews for JCB 8014 CTS

Add review

JCB 8014 CTS overview

JCB 8014 CTS features overview

OPTIONAL EQUIPMENT – 8020 CTS
ROPS & TOPS certified fully glazed cab (includes heater, interior light, cigar lighter, door holder with internal/outdoor release, gas-assisted front screen), dual pattern controls (ISO/SAE refit), double acting auxiliary circuit, cabin/canopy mounted work lights, engine fan protection kit, FOPS roof guard, yellow roof strips, 9 digging shovels (160mm to 760mm (6in to 30in)), 2 dig/grading buckets (900mm & 1000mm (35in and 39in)), hydraulic breaker, earth bores, mechanical quickhitch, hydraulic notch lift screw, bookster kingpost, rotating or strob lamp, toolkit and grease gun, heavy duty track tension, JCB Impact Protection Front strainer. ROPS & TOPS certified fully glazed cab (including heating, interior light, cigarette lighter, door hold flap with inner/exter unlockable front shield), saddle seat / two compartmental design checks u ISO
Engine / Driveline and transmission

STANDARD EQUIPMENT – 8020 CTS
ROPS & TOPS certified canopy, full audio/visual warning systems, slewing travel lock, control isolator, external lockable toolbox, 12V power socket, lift points, rubber tracks, ISO servo controls, vinyl static seat, boom working lights, boom stick guard, dozer blade, 1161mm (3ft-10in) dipper. ROPS & TOPS certified canopy, complete audio/visual warning systems, pivoted travel lock, control isolator, external locked tool box, 12v electrical socket, lifting points, rubber tracks, 2-speed autoshift tracking, hydraulically extending undercarriage, ISO servo, variable gear pump, unit spring tensioner, jack kingpost.
STANDARD EQUIPMENT – 8016 CTS
ROPS & TOPS certified canopy, full audio/visual warning systems, slewing travel lock, control isolator, external lockable toolbox, 12V power socket, lift points, rubber tracks, ISO servo controller, static seat, boom working lights, double acting auxiliary circuit, boom stick guard, three-section gear pump, dozer blade, 1161mm (3ft-10in) dipper.
STANDARD EQUIPMENT – 8018 CTS
ROPS & TOPS certified canopy, full audio/visual warning systems, slewing travel lock, control isolator, external lockable toolbox, 12V power socket, lift points, rubber tracks, 2speed auto shift tracking, hydraulically extending undercarriage, ISO servo controller, static seat, boom work lights, double acting auxiliary circuit, boom stick guard, three-section gear pump, extendible dozer blade, 1161mm (3ft-10in) dipper.

Dimensions and weight

Machine model	8014 CTS	8016 CTS	8018 CTS	8020 CTS
	mm (ft-in)	mm (ft-in)	mm (ft-in)	mm (ft-in)
A Sprocket idler centres	1027 (3-4)	1127 (3-8)	1127 (3-8)	1362 (4-5½)
B Undercarriage overall length	1384 (4-7)	1484 (5-10)	1484 (5-10)	1724 (5-8)
C Kingpost clearance	376 (1-3)	376 (1-3)	376 (1-3)	376 (1-2¼)
D Tailswing radius	1028 (3-4½)	1028 (3-4½)	1028 (3-4½)	1127 (3-8½)
E Overall width of superstructure	980 (3-2½)	980 (3-2½)	980 (3-2½)	980 (3-2½)
F Height over cab	2318 (7-7)	2318 (7-7)	2318 (7-7)	2318 (7-7¼)
G Ground clearance	158 (0-6)	158 (0-6)	158 (0-6)	148 (5½)
H Track gauge	742 (2-5)	742 (2-5)	750 to 1110 (2-5½ to 3-7¾)	752 to 1112 (2-5½ to 3-7¾)

Machine model	8014 CTS	8016 CTS	8018 CTS	8020 CTS
	mm (ft-in)	mm (ft-in)	mm (ft-in)	mm (ft-in)
I Width over tracks (retracted)	972 (3-2)	972 (3-2)	980 (3-2½)	1002 (3-3½)
Width over tracks (extended)	N/A	N/A	1340 (4-5)	1362 (4-5½)
J Transport length – Standard dipper	3346 (10-11¾)	3346 (10-11¾)	3418 (11-2½)	3656 (12-0)
J Transport length – Long dipper	N/A	3261 (10-8¼)	3352 (11-0)	N/A
J Transport length – Gravemaster dipper	N/A	N/A	3219 (10-6¾)	N/A
K Transport height with FOGS guard	2318 (7-7)	2318 (7-7)	2318 (7-7)	2318 (7-7¼)
K Transport height without FOGS guard	2304 (7-6½)	2304 (7-6½)	2304 (7-6½)	2304 (7-6¾)
L Track height	366 (1-2)	366 (1-2)	366 (1-2)	366 (1-2½)

Machine model	8014 CTS	8016 CTS	8018 CTS	8020 CTS
No of bottom rollers	3	3	3	4
Track width mm (in)	230 (9)	230 (9)	230 (9)	250 (9¾)
Ground bearing pressure kg/cm² (lb/in²)	0.33 (4.69)	0.3 (4.27)	0.32 (4.55)	0.36 (5.12)
Ground clearance mm (in)	158 (6)	158 (6)	158 (6)	148 (5¾)
Track tensioning	Screw	Grease	Grease	Grease
Travel speed – low kph (mph)	2 (1.24)	2 (1.24)	2 (1.24)	2.3 (1.4)
Travel speed – high kph (mph)	N/A	3.8 (2.36)	3.8 (2.36)	4 (2.49)
Tractive effort kN (lbf)	11.08 (2491)	11.3 (2540)	11.3 (2540)	16.18 (3638)

Machine model		8016 CTS
Boom length	mm (ft-in)	1560 (5-2)	1560 (5-2)
Dipper length	mm (ft-in)	1161 (3-10)	1261 (4-2)
A	Max digging reach	mm (ft-in)	3837 (12-7)	3933 (12-11)
B	Max digging reach on ground	mm (ft-in)	3764 (12-4)	3847 (12-7½)
C	Max digging depth – dozer up	mm (ft-in)	2044 (6-8½)	2144 (7-0½)
	Max digging depth – dozer down	mm (ft-in)	2357 (7-9)	2457 (8-1)
D	Max digging height	mm (ft-in)	3393 (11-2)	3454 (11-4)
E	Max dump height	mm (ft-in)	2501 (8-2½)	2559 (8-5)
F	Max height to dipper nose pivot pin	mm (ft-in)	2921 (9-7)	2965 (9-9)
G	Max vertical wallcut depth	mm (ft-in)	1659 (5-5)	1754 (5-9)
H	Min. front swing radius (no offset)	mm (ft-in)	1641 (5-4½)	1665 (5-6)
	Min. front swing radius (fully offset)	mm (ft-in)	1457 (4-9)	1481 (4-10)
I	Boom swing left	degrees	55	55
J	Boom swing right	degrees	75	75
	Bucket rotation	degrees	198	198
	Dipper rotation	degrees	112	112
	Bucket tearout	kN (lbf)	16.2 (3642)	16.2 (3642)
	Dipper tearout	kN (lbf)	8 (1798)	7.25 (1630)
	Slew speed	rpm	10	10

Machine model		8014 CTS
Boom length	mm (ft-in)	1560 (5-2)
Dipper length	mm (ft-in)	1161 (3-10)
A Max digging reach	mm (ft-in)	3837 (12-7)
B Max digging reach on ground	mm (ft-in)	3764 (12-4)
C Max digging depth – dozer up	mm (ft-in)	2044 (6-8½)
Max digging depth – dozer down	mm (ft-in)	2357 (7-9)
D Max digging height	mm (ft-in)	3393 (11-2)
E Max dump height	mm (ft-in)	2501 (8-2½)
F Max height to dipper nose pivot pin	mm (ft-in)	2921 (9-7)
G Max vertical wallcut depth	mm (ft-in)	1659 (5-5)
H Min. front swing radius (no offset)	mm (ft-in)	1641 (5-4½)
Min. front swing radius (fully offset)	mm (ft-in)	1457 (4-9)
I Boom swing left	degrees	55
J Boom swing right	degrees	75
Bucket rotation	degrees	198
Dipper rotation	degrees	112
Bucket tearout	kN (lbf)	13.5 (3035)
Dipper tearout	kN (lbf)	8 (1798)
Slew speed	rpm	10

Machine model		8018 CTS
Boom length	mm (ft-in)	1680 (5-5)	1680 (5-5)	1680 (5-5)
Dipper length	mm (ft-in)	1161 (3-10)	1261 (4-2)	1500 (4-11)
A Max digging reach	mm (ft-in)	3933 (12-11)	4028 (13-2½)	4254 (13-11½)
B Max digging reach on ground	mm (ft-in)	3865 (12-8)	3949 (12-11)	4184 (13-8¾)
C Max digging depth – dozer up	mm (ft-in)	2142 (7-0)	2242 (7-4)	2477 (8-1½)
Max digging depth – dozer down	mm (ft-in)	2470 (8-1)	2570 (8-5)	2805 (9-2½)
D Max digging height	mm (ft-in)	3460 (11-4)	3519 (11-6½)	3660 (12-0)
E Max dump height	mm (ft-in)	2568 (8-5)	2626 (8-7)	2765 (9-0¾)
F Max height to dipper nose pivot pin	mm (ft-in)	2973 (9-9)	3032 (9-11)	3172 (10-4¾)
G Max vertical wallcut depth	mm (ft-in)	1750 (5-9)	1845 (6-0½)	2082 (6-10)
H Min. front swing radius (no offset)	mm (ft-in)	1715 (5-7½)	1739 (5-8½)	1791 (5-10½)
Min. front swing radius (fully offset)	mm (ft-in)	1529 (5-0)	1552 (5-1)	1574 (5-2)
I Boom swing left	degrees	55	55	55
J Boom swing right	degrees	75	75	75
Bucket rotation	degrees	198	198	198
Dipper rotation	degrees	112	112	112
Bucket tearout	kN (lbf)	16.2 (3642)	16.2 (3642)	–
Dipper tearout	kN (lbf)	9.2 (2068)	8.3 (1866)	–
Slew speed	rpm	10	10	10

Machine model		8020 CTS
Boom length	mm (ft-in)	1792 (5-8)
Dipper length	mm (ft-in)	1261 (4-2)
A	Max digging reach	mm (ft-in)	4158 (13-7¾)
B	Max digging reach on ground	mm (ft-in)	4065 (13-4)
C	Max digging depth – dozer up	mm (ft-in)	2430 (7-11¾)
	Max digging depth – dozer down	mm (ft-in)	2621 (8-7¼)
D	Max digging height	mm (ft-in)	3665 (12¼)
E	Max dump height	mm (ft-in)	2772 (9-1)
F	Max height to dipper nose pivot pin	mm (ft-in)	3178 (10-5)
G	Max vertical wallcut depth	mm (ft-in)	1921 (6-3½)
H	Min. front swing radius (no offset)	mm (ft-in)	1842 (6½)
	Min. front swing radius (fully offset)	mm (ft-in)	1049 (3-5¼)
I	Boom swing left	degrees	55
J	Boom swing right	degrees	75
	Bucket rotation	degrees	198
	Dipper rotation	degrees	112
	Bucket tearout	kN (lbf)	19.0* (3214.77)
	Dipper tearout	kN (lbf)	9.3 (2090.7)
	Slew speed	rpm	9.6

Machine model		8014 CTS	8016 CTS	8018 CTS	8020 CTS
Operating weight*	kg (lb)	1564 (3448)	1590 (3505)	1662 (3664)	1999 (4407)
Transport weight	kg (lb)	1489 (3283)	1515 (3340)	1587 (3499)	1924 (4241)
With canopy	kg (lb)	-80 (-176)	-80 (-176)	-80 (-176)	-80 (-176)
With FOGS guard	kg (lb)	+25 (+55)	+25 (+55)	+25 (+55)	+25 (+55)
With long dipper	kg (lb)	N/A	+2 (+41 ⁄2)	+2 (+41 ⁄2)	N/A
With Gravemaster dipper	kg (lb)	N/A	N/A	+7 (+151 ⁄2)	N/A

Machine model	8018 CTS	8020 CTS
		Standard	Long	Long as standard
Max height (above ground)	mm (ft-in)	178 (0-7)	270 (0-10½)	270 (0-10½)
Dig depth (below ground)	mm (ft-in)	292 (0-11½)	438 (1-5¼)	438 (1-5¼)
Approach angle	degrees	26.5	22.5	22.5
Width	mm (ft-in)	1000 (3-3)	1000 (3-3)	1000 (3-3)
Width (extended)	mm (ft-in)	1380 (4-6¼)	1380 (4-6¼)	1380 (4-6¼)
Height	mm (ft-in)	225 (0-9)	273 (0-10¾)	273 (0-10¾)
Reach in front of tracks	mm (ft-in)	202 (0-8)	442 (1-5½)	442 (1-5½)

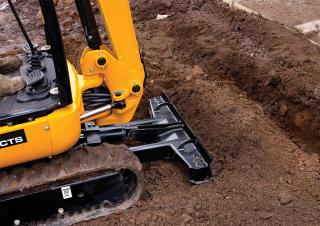

DOZER BLADE
Machine model		8014 CTS	8016 CTS
		Standard	Standard	Long
Max height (above ground)	mm (ft-in)	178 (0-7)	178 (0-7)	270 (0-10½)
Dig depth (below ground)	mm (ft-in)	292 (0-11½)	292 (0-11½)	438 (1-5¼)
Approach angle	degrees	26.5	26.5	22.5
Width	mm (ft-in)	1000 (3-3)	1000 (3-3)	1000 (3-3)
Width (extended)	mm (ft-in)	N/A	N/A	N/A
Height	mm (ft-in)	225 (0-9)	225 (0-9)	273 (0-10¾)
Reach in front of tracks	mm (ft-in)	202 (0-8)	202 (0-8)	442 (1-5½)

		External	Internal
Cab/canopy height with FOGS guard	mm (ft-in)	2318 (7-7)	2269 (7-5)
Cab/canopy height no FOGS guard	mm (ft-in)	2304 (7-6½)	2269 (7-5)
Cab/canopy length	mm (ft-in)	1171 (3-11)	1073 (3-6)
Cab/canopy width	mm (ft-in)	974 (3-2)	888 (2-11)
Distance from seat base to roof	mm (ft-in)	1223	(4-0)
Door aperture width	mm (ft-in)	624	(2-0½)

Tables

		Standard variable pump
Pump		1 Variable (2 Ports) / 1 Gear
Nominal output	lpm	55.4 (22 x 22 x 11.4)
Nominal output	US gal/min	14.6 (5.8 x 5.8 x 3.0)
Excavator/track main relief	bar (psi)	230 (3336)
Slew main relief	bar (psi)	160 (2321)
Auxiliary hydraulic flow	lpm (US gal/min)	44 (11.6)
Hydraulic motors		Piston

	Standard gear pump	Optional variable pump
Pump		Triple section Gear	1 Variable (2 Ports) / 1 Gear
Nominal output	lpm	43.6 (15.7 x 15.7 x 12.2)	46.9 (17.1 x 17.1 x 12.7)
Nominal output	UK gal/min	11.5 (3.6 x 3.6 x 3.2)	12.4 (4.5 x 4.5 x 3.4)
Excavator/track main relief	bar (psi)	230 (3336)	230 (3336)
Slew main relief	bar (psi)	160 (2321)	160 (2321)
Auxiliary hydraulic flow	litres (UK gal)	31.3 (8.3)	34.2 (9.0)
Hydraulic motors		Piston	Piston

Machine Model	8014 / 8016 / 8018 / 8020 CTS
Model	403D-11 Tier III
Fuel		Diesel
Cooling		Water cooled
Gross power ISO 14396	kW (hp) @ 2200 rpm	14.7 (19.7)
Nett power	kW (hp) @ 2200 rpm	14.2 (19)
Gross torque ISO 14396	Nm (lbf ft) @ 1600 rpm	66.8 (49.27)
Nett torque	Nm (lbf ft) @ 1600 rpm	64.2 (47.35)
Displacement	cc / litres	1131 / 1.131
Gradeability	degrees	35
Starter motor	kW (hp)	1.1 (1.48)
Battery volt / Ah	12v / 60
Alternator	amps	40

		Standard gear pump
Pump		Triple section Gear
Nominal output	lpm	39.2 (13.5 x 13.5 x 12.2)
Nominal output	US gal/min	10.4 (3.6 x 3.6 x 3.2)
Excavator/track main relief	bar (psi)	230 (3336)
Slew main relief	bar (psi)	160 (2321)
Auxiliary hydraulic flow	lpm (US gal/min)	26.9 (7.1)
Hydraulic motors		Piston

	Standard gear pump	Optional variable pump
Pump		Triple section Gear	1 Variable (2 Ports) / 1 Gear
Nominal output	lpm	39.2 (13.5 x 13.5 x 12.2)	42.5 (14.9 x 14.9 x 12.7)
Nominal output	US gal/min	10.4 (3.6 x 3.6 x 3.2)	11.2 (3.9 x 3.9 x 3.4)
Excavator/track main relief	bar (psi)	230 (3336)	230 (3336)
Slew main relief	bar (psi)	160 (2321)	160 (2321)
Auxiliary hydraulic flow	lpm (US gal)	26.9 (7.1)	29.8 (7.9)
Hydraulic motors		Piston	Piston

Load Point	1.2m (3ft 11in)	1.5m (4ft 11in)	2m (6ft 7in)	2.5m (8ft 21 ⁄2in)	Capacity at maximum reach
					EE		문	中			山
Height	Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down
m (ft-in)	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	mm (ft-in)
1.5 (4-11)										242*	252*	247*	188	266*	161	3240 (10-71 ⁄2)
1 (3-3)				499*	532*	499*	360*	370*	240	297*	314*	196	168	289*	177	3300 (10-10)
0.5 (1-8)				505	819*	392	338	526*	241	247	388*	200	167	314*	149	3300 (10-10)
Ground Level	593	1029*	495	449	857*	378	319	567*	266	249	439*	217	167	342*	183	3150 (10-4)
0.5 – (1-8) –	581	1062*	502	443	879*	351	317	615*	258	246	462*	215	204	370*	173	3000 (9-10)
1 – (3-3) –	566	1037*	574	407	758*	409	308	566*	244	236	398*	200	224	349*	161	2650 (8-8)


Height	Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down		Dozer up	Dozer down
m (ft-in)	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	mm (ft-in)
1.5 (4-11)										228*	238*	224*	172	252*	136	3240 (10-71 ⁄2)
1 (3-3)				492*	506*	434*	304*	350*	303*	284*	298*	194	152	271*	115	3300 (10-10)
0.5 (1-8)				465	744*	359	312	479*	248	224	376*	188	142	288*	115	3300 (10-10)
Ground Level	368	914*	416	344	845*	315	240	532*	206	158	384*	166	135	296*	116	3150 (10-4)
0.5 – (1-8) –	353	966*	386	315	809*	273	210	548*	212	150	400*	158	124	322*	127	3000 (9-10)
1 – (3-3) –	308	853*	436	374	679*	300	270	535*	206	210	394*	154	195	349*	139	2650 (8-8)

Height

Dozer up

Dozer down

Retracted

Extended

Dozer up

Dozer down

Retracted

Extended

Dozer up

Dozer down

Retracted

Extended

Dozer up

Dozer down

Retracted

Extended

Dozer up

Dozer down

Retracted

Extended

Distance

m (ft-in)

mm (ft-in)

1.5 (4-11)

200*

203*

218*

217*

173

232*

144

235*

3430 (11-3)

1 (3-3)

345*

365*

345*

346*

305*

315*

305*

306*

259*

270*

251*

252*

201

247*

128

252*

3500 (11-53 ⁄4)

0.5 (1-8)

480*

567*

319

510*

393

465*

264

416*

276

335*

211

310*

173

271*

125

198

3500 (11-53 ⁄4)

Ground Level

477

760*

384

638

400

645*

316

524

330

501*

241

478*

261

378*

196

365*

164

273*

138

216

3360 (11-01 ⁄4)

0.5 – (1-8) –

464

940*

376

545

395

693*

314

502

307

544*

234

406

225

376*

182

308

173

294*

152

233

3140 (10-31 ⁄2)

1 – (3-3) –

438

723*

373

558

332

618*

284

471

288

557*

236

384

222

393*

179

298

188

324*

151

255

2900 (9-6)


Height	Dozer up	Dozer down	90°	Dozer up	Dozer down	90°	Dozer up	Dozer down	90°	Dozer up	Dozer down	90°	Dozer up	Dozer down	90°
m (ft-in)	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	m (ft-in)
2.0 (6-6)										211.4	211.4	216.6	243.6	243.6	245.3	3.4 (11-2)
1.5 (4-11)							241.8	250.5	243.6	245.3	2505	249.6	261.8	272.3	267.0	3.5 (11-6)
1.0 (3-3)	488.9	434.2*	468.0	405.4	418.4	388.8	327.1	328.8	311.4	280.1	287.9	281.0	266.2	279.2	275.7	3.6 (11-10)
0.5 (1-8)	740.3	680.2*	756.6	632.4	589.8	573.3	414.1	433.2	408.9	333.2	348.0	342.7	277.5	301.8*	250.5*	3.58 (11-9)
Ground level	751.5*	1049.2	795.7*	555.0*	682.9	553.5*	416.2*	507.2	434.2*	339.0*	413.2	337.5*	263.2*	339.3*	261.7*	3.5 (11-6)
–0.5 (–1-8)	763.5*	1041.3	857.2*	543.7*	750.8	546.0*	401.2*	555.0	406.5*	302.2*	416.7	326.2*	260.2*	364.5*	275.2*	3.3 (10-10)
–1.0 (–3-3)	722.2*	1083.1	836.2	491.1*	715.1	522.7*	367.5*	539.4	408.8*	286.5*	388.8	317.2*	286.5*	388.8*	317.2*	3.0 (9-10)

Machine model		8014 CTS	8016 CTS	8018 CTS	8020 CTS
Fuel tank	litres (US gal)	23.5 (6.2)	23.5 (6.2)	23.5 (6.2)	23.5 (6.2)
Engine coolant	litres (US gal)	5 (1.3)	5 (1.3)	5 (1.3)	5 (1.3)
Engine oil	litres (US gal)	4 (1.0)	4 (1.0)	4 (1.0)	4 (1.0)
Hydraulic system	litres (US gal)	28 (7.4)	28 (7.4)	28 (7.4)	30 (7.9)
Hydraulic tank	litres (US gal)	25 (6.6)	25 (6.6)	25 (6.6)	25 (6.6)

Machine model		8014 CTS	8016 CTS	8018 CTS	8020 CTS
Cab external sound	dB (LwA)	93	93	93	93
Cab internal sound	dB (LpA)	76	77	77	79

Machine inspection

Ask for inspection of your JCB 8014 CTS from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas

Buy & Rent

Used JCB Mini Excavators for sale

LECTURA gathers current offers from many sources about Mini Excavators.
Find current offers on trusted classified websites presenting second hand Mini Excavators for sale in many countries.

Get in touch for more details:

Go to the offers

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we collect sales offers since 40 years and based on this data, we can support buyers with price information of used mini excavators, such as JCB 8014 CTS.

Check what new and used models of mini excavators you can get in each price range:

Data provided by

Compare JCB 8014 CTS with similar Mini Excavators

JCB 8014 CTS

Weight: 1.63 t

Transport length: 3.41 m

Transport width: 0.97 m

Transport height: 2.34 m

Wacker Neuson ET 18

Weight: 1.74 t

Transport length: 3.8 m

Transport width: 0.99 m

Transport height: 2.29 m

Caterpillar 301.7D

Weight: 1.72 t

Transport length: 3.855 m

Transport width: 0.99 m

Transport height: 2.29 m

JCB 801

Weight: 1.43 t

Transport width: 0.98 m

Terex-Schaeff HR 02

Weight: 1.37 t

Transport width: 0.98 m

Do you want to see more detailed comparison?

Show me!

Sell JCB 8014 CTS

Mini Excavators appraisal with LECTURA Valuation

Whether you need to get value of your JCB 8014 CTS or valuation of your Mini Excavators fleet, LECTURA Valuation will help. Simply fill the machine details and see the values for Mini Excavators in few clicks.

Valuate right now!

Data provided by

Spare parts & Components

Get spare parts for JCB 8014 CTS easily from our partners

Inquire the spare part you search for from our partners with a few easy steps and choose the best offer. Wether you are a dealer or an owner, LECTURA can lead you to the right direction. Order the Mini Excavators spare parts easily today - worldwide.

Inquire for JCB 8014 CTS parts now!

Events & News

Construction News by LECTURA 30.11.2023

Double Pack for High Level of Accuracy

The “Königsteiner Höfe” is a new residential and commercial quarter being constructed in the middle of Königstein im Taunus in the German state of Hesse.

CASE launches F-Series Evolution compact wheel loaders with enhanced control and higher speeds

Spectacular race track construction in the mountains of Japan

CECE is committed to spearhead reconstruction efforts in Ukraine

More industry news

What do you think about this machine?

JCB 8014 CTS excavator specs (2005 - 2017)

Technical specs - 8014 CTS JCB

Specification

Special equipment

Carbon footprint calculator for Mini Excavators

Download datasheets (PDF)

Reviews

JCB 8014 CTS overview

JCB 8014 CTS features overview

Engine / Driveline and transmission

Dimensions and weight

Tables

Machine inspection

Ask for inspection of your JCB 8014 CTS from experts

Buy & Rent

Used JCB Mini Excavators for sale

Get in touch for more details:

Mini Excavator Buyers Guide - price ranges of new and used models

Compare JCB 8014 CTS with similar Mini Excavators

Sell JCB 8014 CTS

Mini Excavators appraisal with LECTURA Valuation

Spare parts & Components

Get spare parts for JCB 8014 CTS easily from our partners

Events & News

Construction News by LECTURA 30.11.2023

JCB products
