56Z-2 JCB excavator specs & dimensions (2021 - 2026)

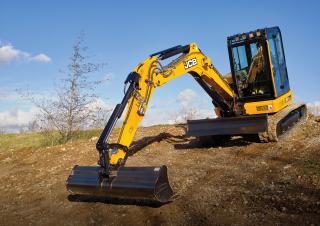

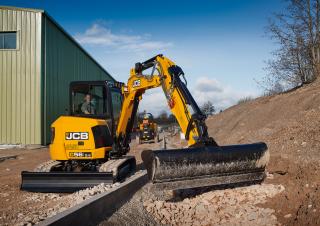

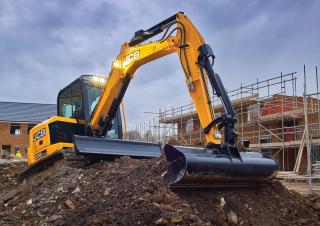

JCB 56Z-2 is a mini excavator manufactured since 2021. It has a weight of 5.37 tons and a track width of 400 mm. The transport dim…

JCB 56Z-2 is a mini excavator manufactured since 2021. It has a weight of 5.37 tons and a track width of 400 mm. The transport dimensions are 5.52 meters in length, 1.95 meters in width, and 2.55 meters in height. The machine features a tear-out force of 42 kN, a dredging depth of 3.84 meters, and a maximum horizontal reach of 5.99 meters. Special equipment includes air conditioning, a blade, and rubber tracks.

Visit JCB live at

56Z-2

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 56Z-2 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.37 t

Transport length: 5.52 m

Transport width: 1.95 m

Transport height: 2.55 m

Track width: 400 mm

Driver protection: Kb

Max. Reach horizontal: 5.99 m

Dredging depth: 3.84 m

Tear-out force: 42 kN

Engine manuf.: Perkins

Engine type: 403J-17

Engine power: 34 kW

Displacement: 1.663 l

Revolutions at max torque: 1600 rpm

No. of cylinders: 3

Emission level: V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

JCB 56Z-2 FAQ

When was the JCB 56Z-2 manufactured?

The JCB 56Z-2 was first produced in 2021.

How much does the JCB 56Z-2 mini excavator weigh?

The JCB 56Z-2 mini excavator weighs 5.37 tons.

What are the transport dimensions of the JCB 56Z-2 mini excavator?

The JCB 56Z-2 has a transport length of 5.52 meters, a transport width of 1.95 meters, and a transport height of 2.55 meters.

What is the track width of the JCB 56Z-2 mini excavator's undercarriage?

The JCB 56Z-2 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the JCB 56Z-2 mini excavator?

The JCB 56Z-2 mini excavator has a dredging depth of 3.84 meters and a maximum horizontal reach of 5.99 meters.

What power ratings are available for the JCB 56Z-2 mini excavator?

The source data does not provide power ratings for the JCB 56Z-2 mini excavator.

What operator safety features does the JCB 56Z-2 have?

The JCB 56Z-2 has a cabin for driver protection.

How much is a JCB 56Z-2 Mini excavator (2021u20132025) worth?

The residual value of the JCB 56Z-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 56Z-2 overview

JCB 56Z-2 features overview

Choose conventional rear swing for greater stability and strength, or zero tail swings for greater manoeuvrability.

Engine / Driveline and transmission

TOUGH TO BEAT FOR PERFORMANCE.
The new stage v perkins 36kw engine offers up to 5% fuel economy with zero compromise for machine performance and no adblue needed.
THE POWER TO SAVE
4 Power modes allow the operator to choose the right power for use, saving even more fuel.
TOUGH TO BEAT FOR COST OF OWNERSHIP.
Minimum downtime, with a machine health check displayed on the screen before starting. Fuel saving features include one touch idle, programmable auto idling & engine shutdown.

Environment

TOUGH TO BEAT FOR COMFORT.
Increased productivity comes from a comfortable operating environment: a large, quiet cab, thumb-controlled boom swing and auxiliary as well as a hands-free bluetooth radio.

Tyres / Tracks

TOUGH TO BEAT FOR SERVICEABILITY
Unrivalled service access with easy to remove panels, fully opening side & rear hoods and grouped check points.
BUILT TO LAST
The 100% steel body and bolt grapple are harder and easier to repair.

Dimensions and weight

MODEL	50Z-2	56Z-2	60C-2
Dig depth,"3,327/3,447mm	3,606mm	3,856mm"
Service intervals		500 hours
Transport length,"5,353mm	5,520mm	5,505mm"
Transport height,"2,551mm	2,551mm	2,561mm"
Shipping weight,"4,798kg	5,310kg	5,448kg"
Width over tracks		1	950mm"

Other features

INFORMATION AT YOUR FINGERTIPS
The 7" intuitive colour display allows easy access to vital machine information.
TOUGH TO BEAT FOR EASE OF USE.
7 colour screen with slew selector control, programmable flow for up to 10 attachments and auto auxiliary ventilation allows easy attachment replacement.

Safety

TOUGH TO BEAT FOR SAFETY.
Improved visibility, integrated rear camera, follow me home LED lights, unique 2GO system and 5 years subscription from JCB Livelink contributes to safer work.
