55Z-I JCB excavator specs & dimensions (2022 - 2026)

JCB 55Z-I is a mini excavator manufactured since 2022. It has a weight of 5.366 tons and a track width of 400 mm. The transport di…

JCB 55Z-I is a mini excavator manufactured since 2022. It has a weight of 5.366 tons and a track width of 400 mm. The transport dimensions are 5.518 meters in length, 1.95 meters in width, and 2.561 meters in height. The dredging depth is 3.606 meters, and the maximum horizontal reach is 5.995 meters. This model is equipped with a rubber track.

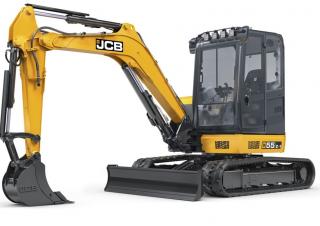

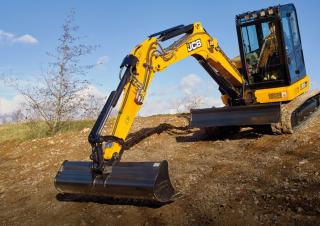

Mini Excavators JCB 55Z-I
Mini Excavators JCB 55Z-I
Mini Excavators JCB 55Z-I
Mini Excavators JCB 55Z-I

Visit JCB live at

Technical specs - 55Z-I JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.366 t
Transport length
5.518 m
Transport width
1.95 m
Transport height
2.561 m
Track width
400 mm
Driver protection
KbR
Max. Reach horizontal
5.995 m
Dredging depth
3.606 m
Engine manuf.
Kohler
Engine type
KDI1903
Engine power
36 kW
Displacement
1.903 l
Revolutions at max torque
1500 rpm
Max. torque
225 Nm
Emission level
Tier 4 Final

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 55Z-I FAQ

When was the JCB 55Z-I manufactured?

The JCB 55Z-I was first produced in 2022.

How much does the JCB 55Z-I mini excavator weigh?

The JCB 55Z-I mini excavator weighs 5.37 tons.

What are the transport dimensions of the JCB 55Z-I mini excavator?

The JCB 55Z-I mini excavator has a transport length of 5.52 meters, a transport width of 1.95 meters, and a transport height of 2.56 meters.

What is the track width of the JCB 55Z-I mini excavator?

The JCB 55Z-I mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the JCB 55Z-I mini excavator?

The JCB 55Z-I mini excavator has a dredging depth of 3.606 meters and a maximum horizontal reach of 5.995 meters.

What operator safety and support features does the JCB 55Z-I have?

The JCB 55Z-I is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a JCB 55Z-I Mini excavator (2022u20132025) worth?

The residual value of the JCB 55Z-I depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
