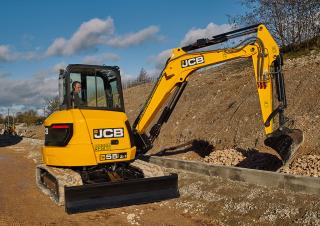

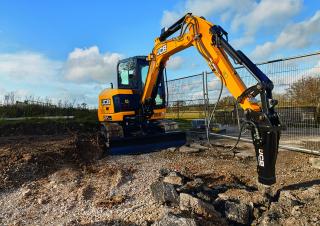

51R-I JCB excavator specs & dimensions (2017 - 2021)

JCB 51R-I is a mini excavator manufactured from 2017 to 2021, with a weight of 5.11 tons. It features a track width of 400 mm, a t…

JCB 51R-I is a mini excavator manufactured from 2017 to 2021, with a weight of 5.11 tons. It features a track width of 400 mm, a transport length of 5.35 meters, a transport width of 1.95 meters, and a transport height of 2.55 meters. The machine has a tear-out force of 38 kN, a dredging depth of 3.65 meters, and a maximum horizontal reach of 5.83 meters. Special equipment includes air conditioning, a blade, and rubber tracks.

Mini Excavators JCB 51R-I
Mini Excavators JCB 51R-I
Mini Excavators JCB 51R-I
Mini Excavators JCB 51R-I
Mini Excavators JCB 51R-I
Mini Excavators JCB 51R-I

Visit JCB live at

Technical specs - 51R-I JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.11 t
Transport length
5.35 m
Transport width
1.95 m
Transport height
2.55 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.83 m
Dredging depth
3.65 m
Tear-out force
38 kN
Engine manuf.
Perkins
Engine type
404D-22
Engine power
35.7 kW
Displacement
2.179 l
Revolutions at max torque
1800 rpm
Max. torque
143 Nm
Emission level
III A

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 51R-I FAQ

When was the JCB 51R-I manufactured?

The JCB 51R-I was manufactured from 2017 to 2021.

How much does the JCB 51R-I mini excavator weigh?

The JCB 51R-I mini excavator weighs 5.11 tons.

What are the transport dimensions of the JCB 51R-I mini excavator?

The JCB 51R-I has a transport length of 5.35 meters, a transport width of 1.95 meters, and a transport height of 2.55 meters.

What is the track width of the JCB 51R-I mini excavator?

The JCB 51R-I mini excavator has a track width of 400 mm.

What are the dredging depth and maximum horizontal reach of the JCB 51R-I mini excavator?

The JCB 51R-I mini excavator has a dredging depth of 3.65 meters and a maximum horizontal reach of 5.83 meters.

What is the tear-out force of the JCB 51R-I mini excavator, and is its power rating available?

The JCB 51R-I mini excavator has a tear-out force of 38 kN. The source data does not provide any power rating information for this model.

What driver protection feature does the JCB 51R-I have?

The JCB 51R-I has a cabin for driver protection.

How much is a JCB 51R-I Mini excavator (2017u20132021) worth?

The residual value of the JCB 51R-I depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
