JCB 50Z-2 excavator specs & dimensions (2021 - 2026) | Diggers

Technical specs - 50Z-2 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.9 t

Transport length: 5.35 m

Transport width: 1.95 m

Transport height: 2.55 m

Track width: 400 mm

Driver protection: Kb

Max. Reach horizontal: 5.71 m

Dredging depth: 3.53 m

Tear-out force: 38 kN

Engine manuf.: Perkins

Engine type: 403J-17

Engine power: 34 kW

Displacement: 1.663 l

Revolutions at max torque: 1600 rpm

No. of cylinders: 3

Emission level: V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

JCB 50Z-2 FAQ

When was the JCB 50Z-2 manufactured?

The JCB 50Z-2 was first produced in 2021.

How much does the JCB 50Z-2 weigh?

The JCB 50Z-2 weighs 4.9 tons.

What are the transport dimensions of the JCB 50Z-2 mini excavator?

The JCB 50Z-2 has a transport length of 5.35 meters, a transport width of 1.95 meters, and a transport height of 2.55 meters.

What is the track width of the JCB 50Z-2 mini excavator's undercarriage?

The JCB 50Z-2 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the JCB 50Z-2 mini excavator?

The JCB 50Z-2 mini excavator has a dredging depth of 3.53 meters and a maximum horizontal reach of 5.71 meters.

What is the tear-out force of the JCB 50Z-2 mini excavator?

The JCB 50Z-2 mini excavator has a tear-out force of 38 kN.

What type of driver protection does the JCB 50Z-2 have?

The JCB 50Z-2 has a driver protection cabin.

How much is a JCB 50Z-2 Mini excavator (2021u20132025) worth?

The residual value of the JCB 50Z-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 50Z-2 overview

Engine / Driveline and transmission

TOUGH TO BEAT FOR PERFORMANCE.
The new stage v Perkins 36kw engine offers up to 5% fuel savings at zero compromise for machine performance and no adblue need. 50Z-2 / 56Z-2 / 60C-2 MINI EXCAVATOR

Environment

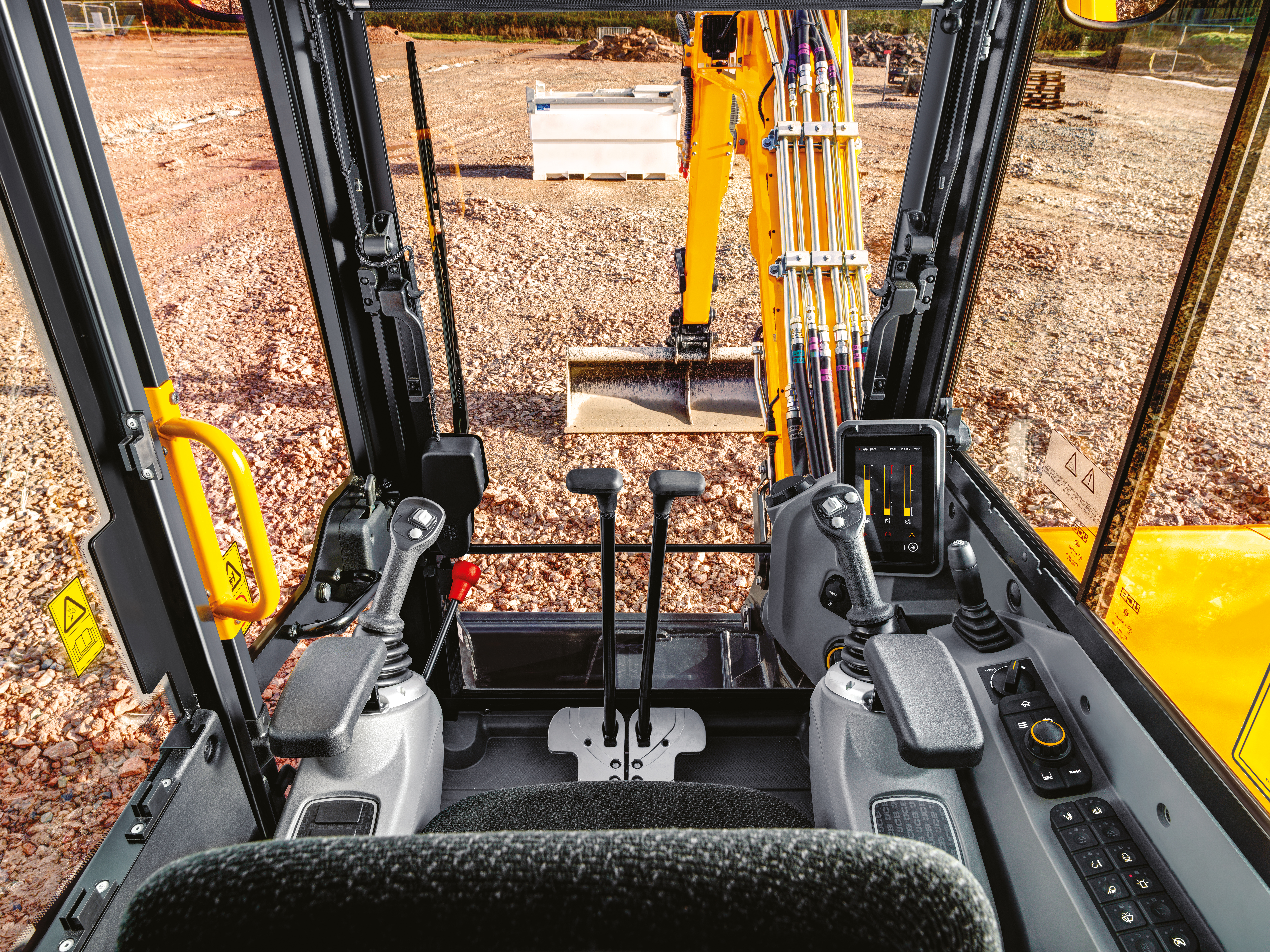

TOUGH TO BEAT FOR COMFORT.
Increased productivity comes from a comfortable operating environment: a large, quiet cab, thumb-controlled boom swing and auxiliary as well as a hands-free bluetooth radio.

Dimensions and weight

STATIC DIMENSIONS
			50Z-2	56Z-2	60C-2
A	Sprocket idler centres	mm	1985	1985	1985
B	Track length on ground	mm	1985	1985	1985
C	Undercarriage overall length – rubber	mm	2490	2490	2490
	Undercarriage overall length – steel	mm	2490	2490	2490
D	Kingpost clearance	mm	631	631	631
E	Tailswing radius (standard / heavy counterweight)	mm	975 / 1030	1000	1300
F	Overall width of superstructure	mm	1845	1845	1845
G	Height over cab	mm	2551	2551	2561
H	Ground clearance	mm	300	300	300
I	Track gauge	mm	1550	1550	1550
J	Width over tracks	mm	1950	1950	1950
K	Transport length with standard dipper	mm	5353	5520	5505
L	Track height	mm	560	560	560
M	Counterweight clearance	mm	618	618	618

ENGINE
Manufacturer	Perkins
Model	403J-E17T
Type	Turbo Charged 3 Cylinder
Emissions standard	Stage V
Fuel		Diesel
Cooling		Water Cooled
Capacity	ltr	1.663
Gross power ISO 14396	kW	36
Net power	kW	34
Max operating speed		2000rpm
Max. torque ISO 14396	Nm	166.5
Displacement	cc	1663
Gradeability	degrees	35
Starter motor	kW	2
Battery	V / amps	12 / 80Ah or 750CCA
Alternator	V / amps	12 / 120

UNDERCARRIAGE
			50Z-2		56Z-2		60C-2
No of top rollers		1		1		1
No of bottom rollers		4		4		4
Track width rubber (STD)	mm		400		400		400
Track width steel	mm	400		400		400
Ground bearing pressure (400mm tracks)	kg / cm2	0.32		0.35		0.36
Track tensioning		Grease		Grease		Grease
Travel speed – low	kph	3		3		3
Travel speed – high	kph	4.6		4.6		4.6
Tractive effort	kN	35.7		38.1		40

HYDRAULIC SYSTEM
			50Z-2		56Z-2		60C-2
Pump	cc		63		63		63
Nominal output @ max rpm	lpm	126		126		126
Excavator/track main relief pressure	bar	240		265		265
Slew main relief pressure	bar	216		216		216
Auxiliary hydraulic pressure (low)	bar	190		190		190
Auxiliary hydraulic pressure (high)	bar	190		190		190
Auxiliary hydraulic flow (low)	lpm	40		40		40
Auxiliary hydraulic flow (high)	lpm		95		95		95
Hydraulic pump					Variable Displacement Piston

WEIGHTS
			50Z-2		56Z-2		60C-2
Operating weight*	kg		5030		5542		5680
Shipping weight**	kg		4798		5310		5448
Machine with 400mm steel tracks	kg		(+)151		(+)151		(+)151
Machine with 550mm steel tracks	kg	(+)279		(+)279		(+)279
Machine with 400mm geogrip tracks	kg	(+)287		(+)287		(+)287
Machine with heavy duty counterweight	kg	(+)310		-		-
Machine with 1450mm dipper	kg	-		(-)39		-
Machine with 1570mm dipper	kg	(+)39		-		-
Machine with 1820mm dipper	kg	(+)59		-		-
Machine with Hydraulic Quick Hitch- Lift	kg	(+)9		(+)9		(+)9
Machine with Mechanical Quick Hitch- Lift	kg	(-)13		(-)13		(-)13
Machine with FOPS roof guard - Stage 1	kg	(+)17		(+)17		(+)17
Ground bearing pressure (400mm tracks)	kg / cm3	0.32		0.35		0.36

DOZER
		50Z-2	56Z-2	60C-2
Dozer Type		2-way	2-way	2-way
Dozer length	mm	1141	1141	1141
Max height above ground	mm	433	433	433
Dig depth below ground	mm	464	464	464
Approach angle degrees	degrees	31	31	31
Width	mm	1962	1962	1962
Height	mm	400	400	400

		50Z-2	56Z-2	60C-2
	Dipper length	mm	1470 / 1570	1570	1820
	Boom length	mm	2700	2866	2866
A	Max. digging reach	mm	5486 / 5962	6119	6260
B	Max. digging reach on ground	mm	5714 / 5832	5995	6140
C	Max. digging depth – dozer up	mm	3327 / 3447	3606	3856
	Max. digging depth – dozer down	mm	3532 / 3652	3843	4077
D	Max. digging height	mm	5387 / 5473	5664	5846
E	Max. dump/load-over height	mm	4001 / 4088	4274	4456
F	Max. height to dipper nose pivot pin	mm	4679 / 4764	4970	5152
G	Max. vertical wallcut depth	mm	1971 / 2069	2052	2254
H	Min. front swing radius (no offset)	mm	2599 / 2631	2641	2608
	Min. front swing radius (fully offset)	mm	2123 / 2151	2160	2155
I	Boom swing left	degrees	70	70	70
J	Boom swing right	degrees	55	55	55
Bucket rotation	degrees	181	181	181
	Dipper rotation	degrees	121	121	121
	Bucket tearout (power position)	kN	38	42	42
	Dipper tearout	kN	22 / 21	29	26
Slew speed	rpm	8.3	8.3	8.3

OPERATOR ENVIRONMENT
		50Z-2	56Z-2	60C-2
Cab/canopy height	mm	2551	2551	2561
Cab/canopy height with FOGS guard LEVEL 1	mm	2575	2575	2585
Cab/canopy length	mm	1291	1291	1491
Cab/canopy width	mm	1020	1020	1020
Door aperture	mm	552	552	595

Other features

TOUGH TO BEAT FOR COST OF OWNERSHIP.
7 colour screen with slew selector control, programmable flow for up to 10 attachments and auto auxiliary ventilation allows easy plant changeover. Minimum downtime, in case of a machine health check displayed on the screen before opening. Fuel saving features include touch idle, programmable self-lease & engine shutdown.

Safety

TOUGH TO BEAT FOR SAFETY.
Improved visibility, integrated rear camera, follow me home LED lights, unique 2GO system and 5 years subscription from JCB Livelink contributes to safer work.

Tables

SERVICE CAPACITIES
		50Z-2	56Z-2	60C-2
Fuel tank	ltr	76	76	76
Engine coolant	ltr	12	12	12
Engine oil	ltr	5	5	5
Hydraulic system	ltr	100	100	100
Hydraulic tank	ltr	55	55	55

Load Point	2.0m	3.0m	4.0m	5.0m	Capacity at maximum reach
								山
Height	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Distance
m	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	m
4.0													842*	842*	606	3.88
3.5							852	959*	582				739	784*	501	4.3
3.0				1190*	1190*	922	847	964*	577				651	777*	438	4.6
2.5				1321	1442*	873	832	1016*	564				594	747*	396	4.82
2.0				1260	1719*	820	812	1098*	546				556	706*	367	4.97
1.5				1208	1949*	775	790	1192*	525	544	899*	357	536	761*	352	5.04
1.0				1174	2085*	744	768	1280*	505	536	1009*	350	526	751*	343	5.06
0.5				1155	2125*	727	750	1347*	489	530	883*	345	529	812*	344	5.01
0.0				1148	2084*	721	738	1379*	477				544	866*	353	4.9
-0.5	1975*	1975*	1415	1150	1965*	723	731	1365*	471				574	922*	373	4.72
-1.0	2493	2824*	1425	1161	1756*	733	732	1288*	472				628	992*	408	4.46
-1.5	2517	2907*	1444	1184	1400*	753	743	1090*	483				720	1009*	469	4.1
-2.0	2269*	2269*	1476										898	958*	585	3.59
-2.5													754*	754*	754*	2.83
-3.0

Height	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Distance
m	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	m
4.0							874*	874*	683				792*	792*	669	4.04
3.5							899*	899*	691				697*	697*	562	4.45
3.0							913*	913*	685				682*	682*	499	4.74
2.5							970*	970*	672				666*	666*	456	4.95
2.0				1361*	1361*	1036	951	1055*	653	652	941*	444	631	657*	428	5.09
1.5				1477	1645*	982	928	1154*	632	645	964*	437	609	636*	411	5.17
1.0				1423	1892*	935	905	1249*	611	636	988*	429	601	681*	404	5.18
0.5				1384	2052*	901	886	1324*	594	629	1003*	422	605	742*	405	5.13
0.0				1362	2115*	881	872	1366*	581	625	886*	418	619	742*	415	5.03
-0.5	1869*	1869*	1686	1352	2095*	873	864	1365*	574				653	856*	437	4.85
-1.0	2622*	2622*	1696	1352	1996*	872	863	1306*	572				707	885*	473	4.6
-1.5	2929	3086*	1714	1360	1811*	880	870	1152*	579				799	971*	535	4.26
-2.0	2485*	2485*	1743	1380	1497*	897							933*	933*	648	3.78
-2.5	1578*	1578*	1578*	879*	879*	879*							790*	790*	790*	3.09
-3.0

Load Point	2.0m 3.0m	4.0m		5.0m Capacity at maximum reach

Height	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Distance
m	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	m
4.5													1100*	1100*	816	3.74
4.0							1059	1356*	738				939	976*	651	4.26
3.5							1060	1322*	739				807	905*	557	4.64
3.0							1049	1368*	729				725	869*	497	4.92
2.5				1681	1756*	1142	1030	1466*	712	702	1280*	480	671	859*	457	5.12
2.0				1616	2141*	1085	1006	1597*	690	694	1375*	473	636	881*	354	5.25
1.5				1546	2544*	1023	979	1738*	665	684	1416*	463	616	910*	414	5.32
1.0				1487	2862*	971	954	1866*	642	673	1455*	453	605	893*	405	5.34
0.5				1448	3032*	937	932	1960*	622	664	1476*	444	608	983*	406	5.29
0.0				1426	3066*	917	917	2003*	608	657	1464*	438	622	1020*	414	5.19
-0.5	2355*	2355*	1763	1416	2992*	909	907	1987*	599	655	1235*	436	652	1138*	434	5.02
-1.0	3048	3342*	1771	1416	2826*	909	904	1897*	597				701	1215*	467	4.78
-1.5	3069	4098*	1787	1424	2560*	915	909	1706*	601				784	1341*	523	4.45
-2.0	3104	3398*	1814	1441	2158*	931	929	1289*	619				926	1277*	618	4.01
-2.5	2334*	2334*	1858	1475	1499*	960							1115*	1115*	810	3.39
-3.0

LIFT CAPACITIES,– 400MM RUBBER,"TRACKS, 2866MM	BOOM, 1820MM DIPPER, NO BUCKET.",,,,,60C-2
Load Point		2.0m			3.0m		4.0m	5.0m	Capacity at maximum reach
				山	中			山
Height	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Dozer Up	Dozer Down	Over Side	Distance
m	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	m
4.5													1067*	1116*	962	3949
4.0							1055*	1081*	957				976*	1021*	806	4413
3.5							1039*	1064*	956				901	965*	712	4761
3.0							1076*	1102*	946	830	1007*	656	823	933*	651	5022
2.5							1153*	1181*	930	827	1124*	654	771	918*	610	5211
2.0				1554*	1590*	1400	1164	1286*	910	820	1151*	647	738	916*	583	5337
1.5				1790	1903*	1345	1139	1404*	886	811	1190*	638	718	927*	566	5405
1.0				1732	2184*	1294	1116	1517*	865	801	1228*	629	711	950*	560	5418
0.5				1690	2380*	1258	1096	1610*	847	793	1256*	622	715	987*	562	5376
0.0				1665	2479*	1236	1081	1668*	833	787	1262*	616	731	1043*	574	5278
-0.5	1933*	1978*	1933*	1654	2486*	1226	1072	1681*	826	786	1226*	616	763	1123*	598	5121
-1.0	2662*	2724*	2314	1654	2410*	1226	1071	1640*	824				814	1166*	638	4895
-1.5	3521	3644*	2335	1662	2252*	1233	1077	1527*	830				896	1157*	700	4592
-2.0	3112*	3189*	2366	1681	1991*	1249	1094	1285*	845				1033	1130*	802	4186
-2.5	2421*	2483*	2411	1529*	1569*	1277							1031*	1059*	988	3640
-3.0	1381*	1420*	1381*										816*	840*	816*	2835

Events

Visit JCB live at

SteinExpo 2026

Homberg/Nieder-Ofleiden, Germany

September 2 — 5

Machine inspection

Ask for inspection of your JCB 50Z-2 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we collect price lists since 40 years and thanks to this data, we can support buyers with price lists of used mini excavators, such as JCB 50Z-2.

Check what new and used models of mini excavators you can get in each price range:

Data provided by

Compare JCB 50Z-2 with similar Mini Excavators

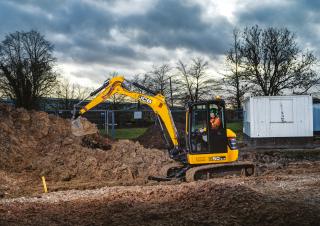

JCB 50Z-2

Weight:: 4.9 t

Transport length:: 5.35 m

Transport width:: 1.95 m

Transport height:: 2.55 m

Mecalac 6MCR

Weight:: 5.7 t

Transport length:: 2.76 m

Transport width:: 2.03 m

Transport height:: 2.59 m

Hyundai R 55-3

Weight:: 5.25 t

Transport width:: 1.87 m

Terex TC 50

Weight:: 4.82 t

Transport length:: 5.39 m

Transport width:: 1.99 m

Transport height:: 2.55 m

Zeppelin ZM 6 B

Weight:: 5.3 t

Check other popular models from Mini Excavators

JCB 8014

Weight:: 1.45 t

JCB 8018

Weight:: 1.75 t

JCB 8008

Weight:: 0.95 t

JCB 8030 ZTS

Weight:: 3.22 t

New Holland E30C

Weight:: 3 t

New Holland E60C

Kubota U17

Weight:: 1.73 t

Kubota K008-3

Weight:: 1 t

John Deere Construction 260

Weight:: 3.584 t

John Deere Construction 50

Weight:: 4.3 t

John Deere Construction 70

Yanmar SV40

Weight:: 4.32 t

Sell JCB 50Z-2

Mini Excavators appraisal with LECTURA Valuation

Whether you need to get value of your JCB 50Z-2 or appraisal of your Mini Excavators fleet, LECTURA Valuation will help. Simply fill the machine details and see the values for Mini Excavators in few clicks.

Valuate right now!

Data provided by

Spare parts & Components

Get spare parts for JCB 50Z-2 easily from our partners

Do your lookup for high quality parts for JCB 50Z-2 online!
With a few, easy steps, you will find generic and genuine parts and replacements in well-catalogued lists. Wether you are dealer or an owner, LECTURA can lead you to the right direction.
Check the best offers from our partners and order the Mini Excavators spare parts easily today - worldwide.

Get parts for JCB 50Z-2 now!

Transport

Mini Excavators Transport & Shipping Services

In case you look into transport options for your machine, take advantage of our services. Enquire the ideal transport quotes for Mini Excavators built on transport dimensions and machine's weight. Our partners provide various options and services to meet your demands.

Ask for transport price

Data provided by

News

Construction News by LECTURA 21.06.2026
