48Z-I JCB excavator specs & dimensions (2022 - 2026)

JCB 48Z-I is a mini excavator manufactured since 2022, with a weight of 4.481 tons. It features a track width of 350 mm, a transpo…

JCB 48Z-I is a mini excavator manufactured since 2022, with a weight of 4.481 tons. It features a track width of 350 mm, a transport length of 5.353 meters, a transport width of 1.9 meters, and a transport height of 2.561 meters. The dredging depth is 3.327 meters, and the maximum horizontal reach is 5.714 meters. This model is equipped with a rubber track.

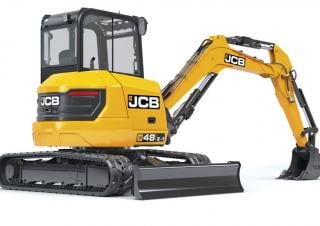

Mini Excavators JCB 48Z-I
Mini Excavators JCB 48Z-I
Mini Excavators JCB 48Z-I
Mini Excavators JCB 48Z-I

Visit JCB live at

Technical specs - 48Z-I JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.481 t
Transport length
5.353 m
Transport width
1.9 m
Transport height
2.561 m
Track width
350 mm
Driver protection
KbR
Max. Reach horizontal
5.714 m
Dredging depth
3.327 m
Engine manuf.
Kohler
Engine type
KDI1903
Engine power
36 kW
Displacement
1.903 l
Revolutions at max torque
1500 rpm
Max. torque
225 Nm
Emission level
Tier 4 Final

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 48Z-I FAQ

When was the JCB 48Z-I manufactured?

The JCB 48Z-I was first produced in 2022.

How much does the JCB 48Z-I mini excavator weigh?

The JCB 48Z-I mini excavator weighs 4.48 tons.

What are the transport dimensions of the JCB 48Z-I mini excavator?

The JCB 48Z-I has a transport length of 5.35 meters, a transport width of 1.9 meters, and a transport height of 2.56 meters.

What is the track width of the JCB 48Z-I mini excavator?

The JCB 48Z-I mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the JCB 48Z-I mini excavator?

The JCB 48Z-I mini excavator has a dredging depth of 3.327 meters and a maximum horizontal reach of 5.714 meters.

What operator safety and support features does the JCB 48Z-I have?

The JCB 48Z-I is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a JCB 48Z-I Mini excavator (2022u20132025) worth?

The residual value of the JCB 48Z-I depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
