30 PLUS JCB excavator specs & dimensions (2020 - 2026)

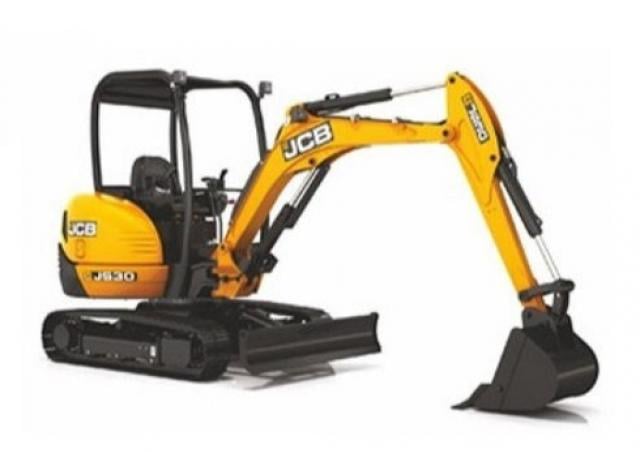

JCB 30 PLUS is a mini excavator manufactured since 2020, with a weight of 2.9 tons. It features a track width of 250 mm, a transpo…

JCB 30 PLUS is a mini excavator manufactured since 2020, with a weight of 2.9 tons. It features a track width of 250 mm, a transport length of 4.08 meters, a transport width of 1.5 meters, and a transport height of 2.4 meters. The machine has a dredging depth of 4.66 meters and a maximum horizontal reach of 4.77 meters. The bucket width is 0.23 meters. Special equipment includes a blade and rubber tracks.

Mini Excavators JCB 30 PLUS

Visit JCB live at

Technical specs - 30 PLUS JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.9 t
Transport length
4.08 m
Transport width
1.5 m
Transport height
2.4 m
Bucket width
0.23 m
Track width
250 mm
Driver protection
FD
Max. Reach horizontal
4.77 m
Dredging depth
4.66 m
Engine manuf.
Perkins
Engine type
403D-l5
Engine power
18.4 kW
Displacement
1.5 l
Revolutions at max torque
1800 rpm
Max. torque
96 Nm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, tear-out force, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 30 PLUS FAQ

When was the JCB 30 PLUS manufactured?

The JCB 30 PLUS was first produced in 2020.

How much does the JCB 30 PLUS weigh?

The JCB 30 PLUS weighs 2.9 tons.

What are the transport dimensions of the JCB 30 PLUS mini excavator?

The JCB 30 PLUS has a transport length of 4.08 meters, a transport width of 1.5 meters, and a transport height of 2.4 meters.

What is the track width of the JCB 30 PLUS mini excavator?

The JCB 30 PLUS mini excavator has a track width of 250 mm.

What are the dredging depth and maximum horizontal reach of the JCB 30 PLUS mini excavator?

The JCB 30 PLUS mini excavator has a dredging depth of 4.66 meters and a maximum horizontal reach of 4.77 meters.

What is the bucket width of the JCB 30 PLUS mini excavator?

The JCB 30 PLUS mini excavator has a bucket width of 0.23 meters.

What operator safety and support features does the JCB 30 PLUS have?

The JCB 30 PLUS is equipped with a canopy for driver protection.

How much is a JCB 30 PLUS Mini excavator (2020u20132025) worth?

The residual value of the JCB 30 PLUS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 30 PLUS overview

JCB 30 PLUS features overview

The new JCB 30PLUS features a number of enhancement that improve the operator comfort.
Bottle holder, face fan, rubber foot track pedals, rear view mirror, 12V loading point, underseat tool box, Improved seat options, wipe clean roof

Engine / Driveline and transmission

Versatility
26% more auxiliary flow than the competitor offers ultimate attachment force. The bucket-to-grab auxiliary change switches oil flow from a bucket cylinder to an additional set of quick release auxiliary plugs, extending its versatility to specialized attachments, such as a auger. The machine is available with a variety of attachments including Quickhitch, Ground Bore and JCB Hammermaster HM 140.

Tyres / Tracks

High strength undercarriage
The high quality 250mm wide steel tracks on the JCB 30PLUS with locking links perform in the toughest applications. High-strength track legs feature three-piece fabrication to maximize rigidity and improve track retention. Tamped edges reduce spoiler retention, making it easier for undercarriage cleaning. JCB 30PLUS' open rail frame design also prevents plush build up. Our new undercarriage features a top mounted roller improving track durability.
The heavy-duty track idler guides and grease tensioners give greater strength and durability.
Box section dozer arms provide ultimate strength and robustness for all dozer tasks.
Safe and sound
All JCB 30PLUS services, including tracking and dozer, are isolated when the control pod is raised.

Dimensions and weight

Machine modelJCB 30PLUS
A Sprocket idler centresmm1440
B Undercarriage overall lengthmm1870
C Kingpost clearancemm528
D Tailswing radiusmm1220
E Overall width of superstructuremm1550
F Height over canopymm2400
G Ground clearancemm270
H Track gaugemm1252
I Width over tracksmm1502
J Transport lengthmm4080
K Transport heightmm2400
L Track heightmm455

Other features

Reliable and robust
The JCB 30PLUS features colour-coded hydraulic hoses for quick hose identification and is characterized by the latest in industrial technology O-Ring Face Seal (ORFS) hydraulic fittings that provide excellent sealing capabilities.
6
The new JCB 30PLUS casting section plate helps prevent paint damage when accessing the cab. recessed engine hoods and a robust rear counterweight provide added damage protection.
Maintenance made easy
The new hydraulic valve block is easily accessed under the side-opening engine hood. All hoses are color coded for quick and easy identification in case of accidental damage. Tinted casting section plate allows simple battery access only with one coin or a screwdriver to unlock. Pin end lubrication makes greasing the digging end fast and easy. A large 56 litre fuel tank enables continuous operation over long hours. New cab mounted work lights provide effective illumination of the working area.

Safety

Built to last
The modern manufacturing of JCB is 100% focused on building quality, reliability and durability to maximise service life and machine availability. Our in-house paint process guarantees quality and lasting protection.

Tables

Bulk material handlingDigging bucketOffset diggingService accessPipeline and lifting
Bucket TypeWidth (mm)Capacity (cum)
General Purpose2300.023
4500.054
6000.074
Ditching Bucket10000.076
Canopy heightmm1517
Canopy lengthmm1205
Canopy widthmm980
Fuel tanklitres56
Engine coolantlitres8.5
Engine oillitres4.5
Hydraulic systemlitres71
Hydraulic tanklitres45
Track gear box (side)
ModelPerkins 403D-l5
FuelDiesel
CoolingWater cooled
Gross powerkW (hp) @ 2100 rpm18.4 (24.7)
Net powerkW (hp) @ 2100 rpm16.5 (22.1)
Gross torqueNm (lbf ft) @ 1800 rpm96 (70.8)
Nett torqueNm (lbf ft) @ 1800 rpm90.4 (66.7)
Displacementcc1496
Gradeabilitydegrees36
Starter motorkW(hp)2 (2.68)
Batteryvolt/Ah12 / 75
Alternatoramps65
Hydraulic pump2 Variable & I Gear
Gear pump @ 2250 rpmIpm70.21/min
Nominal output @ 2250 rpm25.875/min
Excavator/track main reliefbar (psi)235 (3408)
Slew main reliefbar (psi)190 (2756)
Auxiliary hydraulic flowlitres59 (15.6)
