19C-I JCB excavator specs & dimensions (2021 - 2026)

JCB 19C-I is a Mini Excavator manufactured since 2021. It has a weight of 1.83 tons and a track width of 230 mm. The transport dim…

JCB 19C-I is a Mini Excavator manufactured since 2021. It has a weight of 1.83 tons and a track width of 230 mm. The transport dimensions are 3.86 m in length, 0.98 m in width, and 2.345 m in height. The machine features a tear-out force of 18 kN, a dredging depth of 2.426 m, and a maximum horizontal reach of 3.834 m. The bucket width is 0.3 m, and it is equipped with a blade.

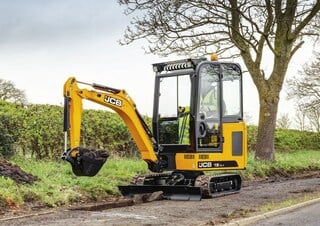

Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I
Mini Excavators JCB 19C-I

Visit JCB live at

Technical specs - 19C-I JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.83 t
Transport length
3.86 m
Transport width
0.98 m
Transport height
2.345 m
Bucket width
0.3 m
Track width
230 mm
Max. Reach horizontal
3.834 m
Dredging depth
2.426 m
Tear-out force
18 kN
Engine manuf.
Perkins
Engine type
403J-07
Engine power
11.7 kW
Displacement
0.762 l
Revolutions at max torque
2000 rpm
Max. torque
45.6 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, driver protection, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 19C-I FAQ

When was the JCB 19C-I manufactured?

The JCB 19C-I was first produced in 2021.

How much does the JCB 19C-I mini excavator weigh?

The JCB 19C-I mini excavator weighs 1.83 tons.

What are the transport dimensions of the JCB 19C-I mini excavator?

The JCB 19C-I mini excavator has a transport length of 3.86 meters, a transport width of 0.98 meters, and a transport height of 2.35 meters.

What is the track width of the JCB 19C-I mini excavator?

The JCB 19C-I mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the JCB 19C-I mini excavator?

The JCB 19C-I mini excavator has a dredging depth of 2.426 meters and a maximum horizontal reach of 3.834 meters.

What is the tear-out force of the JCB 19C-I mini excavator?

The JCB 19C-I mini excavator has a tear-out force of 18 kN.

What is the bucket width of the JCB 19C-I mini excavator?

The JCB 19C-I mini excavator has a bucket width of 0.3 meters.

How much is a JCB 19C-I Mini excavator (2021u20132025) worth?

The residual value of the JCB 19C-I depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
