792D John Deere Construction excavator specs & Dimensions (1995 - 2021)

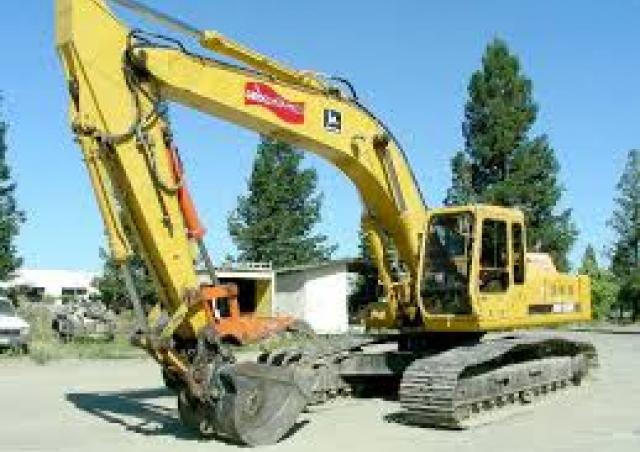

John Deere Construction 792D is a Crawler Excavator manufactured from 1995 to 2021. It has a weight of 27.32 tons and a track widt…

John Deere Construction 792D is a Crawler Excavator manufactured from 1995 to 2021. It has a weight of 27.32 tons and a track width of 600 mm. The transport dimensions are 10.45 meters in length, 2.59 meters in width, and 3.17 meters in height. The machine features a tear-out force of 149 kN, a dredging depth of 7.05 meters, and a maximum horizontal reach of 10.52 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 792D

Technical specs - 792D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.32 t
Transport length
10.45 m
Transport width
2.59 m
Transport height
3.17 m
Track width
600 mm
Max. Reach horizontal
10.52 m
Dredging depth
7.05 m
Tear-out force
149 kN
Model series
D
Engine manuf.
John Deere
Engine type
6076A
Engine power
123 kW
Displacement
7.63 l
Max. torque
820 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

John Deere Construction 792D FAQ

When was the John Deere Construction 792D manufactured?

The John Deere Construction 792D was manufactured from 1995 to 2021.

How much does the John Deere Construction 792D weigh?

The John Deere Construction 792D weighs 27.32 tons.

What are the transport dimensions of the John Deere Construction 792D?

The John Deere Construction 792D has a transport length of 10.45 meters, a transport width of 2.59 meters, and a transport height of 3.17 meters.

What is the track width of the John Deere Construction 792D's undercarriage?

The John Deere Construction 792D has a track width of 600 mm.

What are the excavation performance specifications of the John Deere Construction 792D?

The John Deere Construction 792D has a dredging depth of 7.05 meters and a maximum horizontal reach of 10.52 meters.

What is the tear-out force of the John Deere Construction 792D?

The John Deere Construction 792D has a tear-out force of 149 kN.

How much is a John Deere Construction 792D Crawler excavator (1995u20132021) worth?

The residual value of the John Deere Construction 792D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
