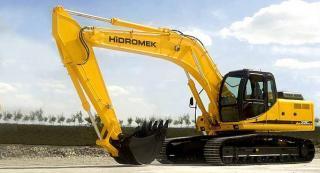

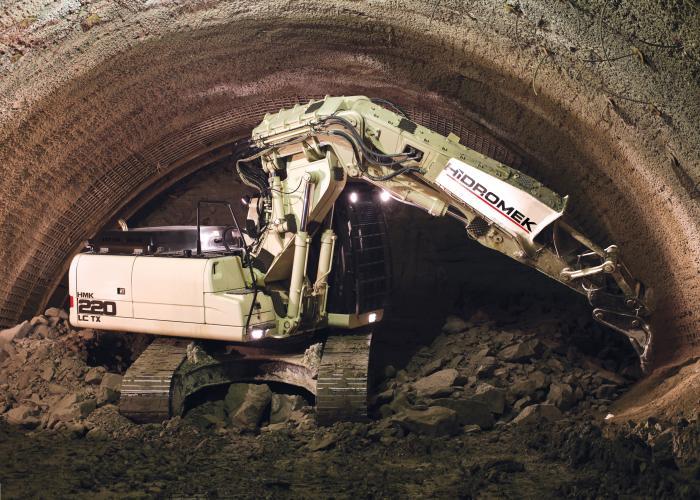

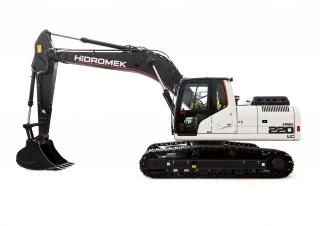

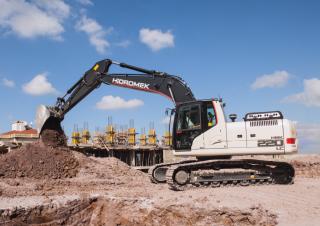

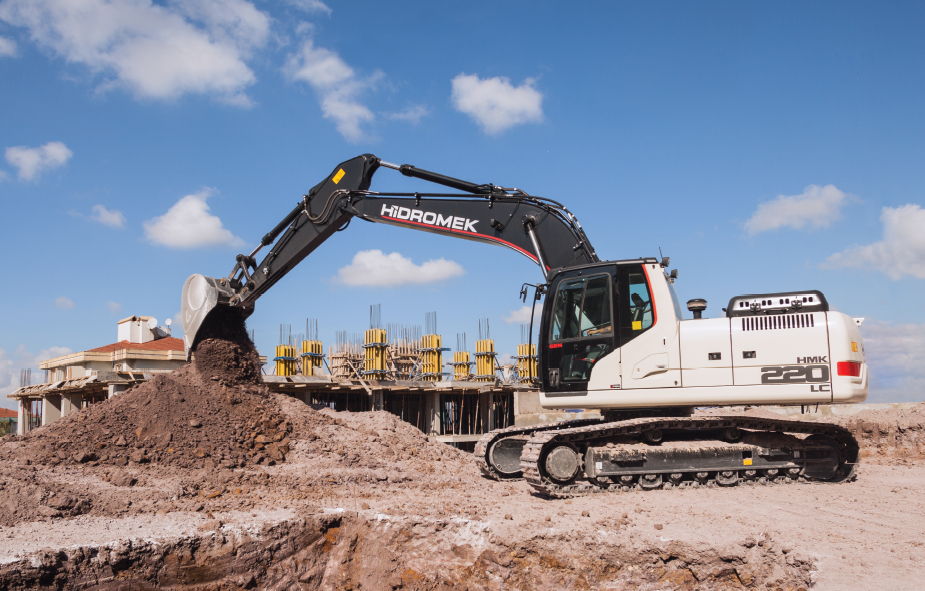

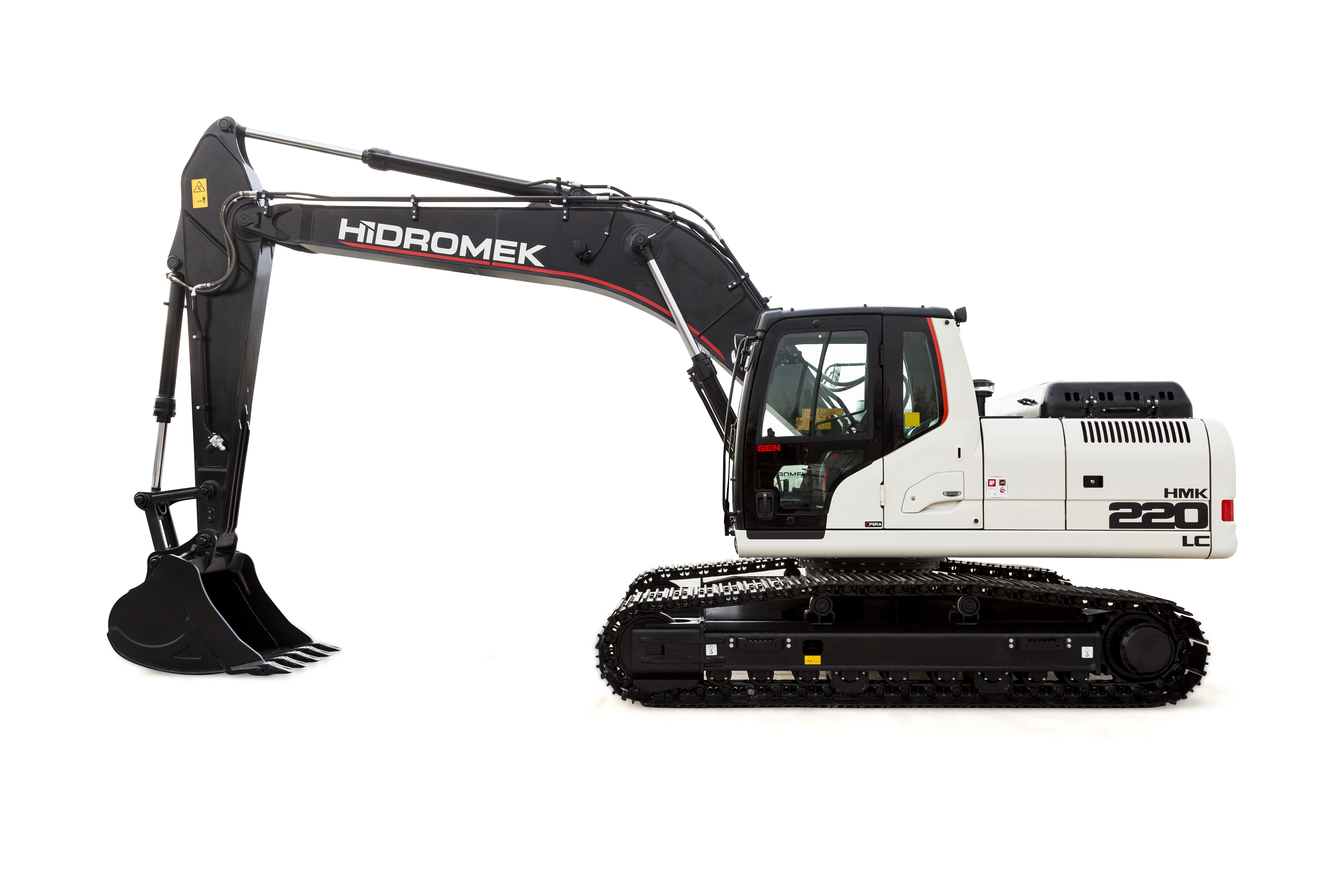

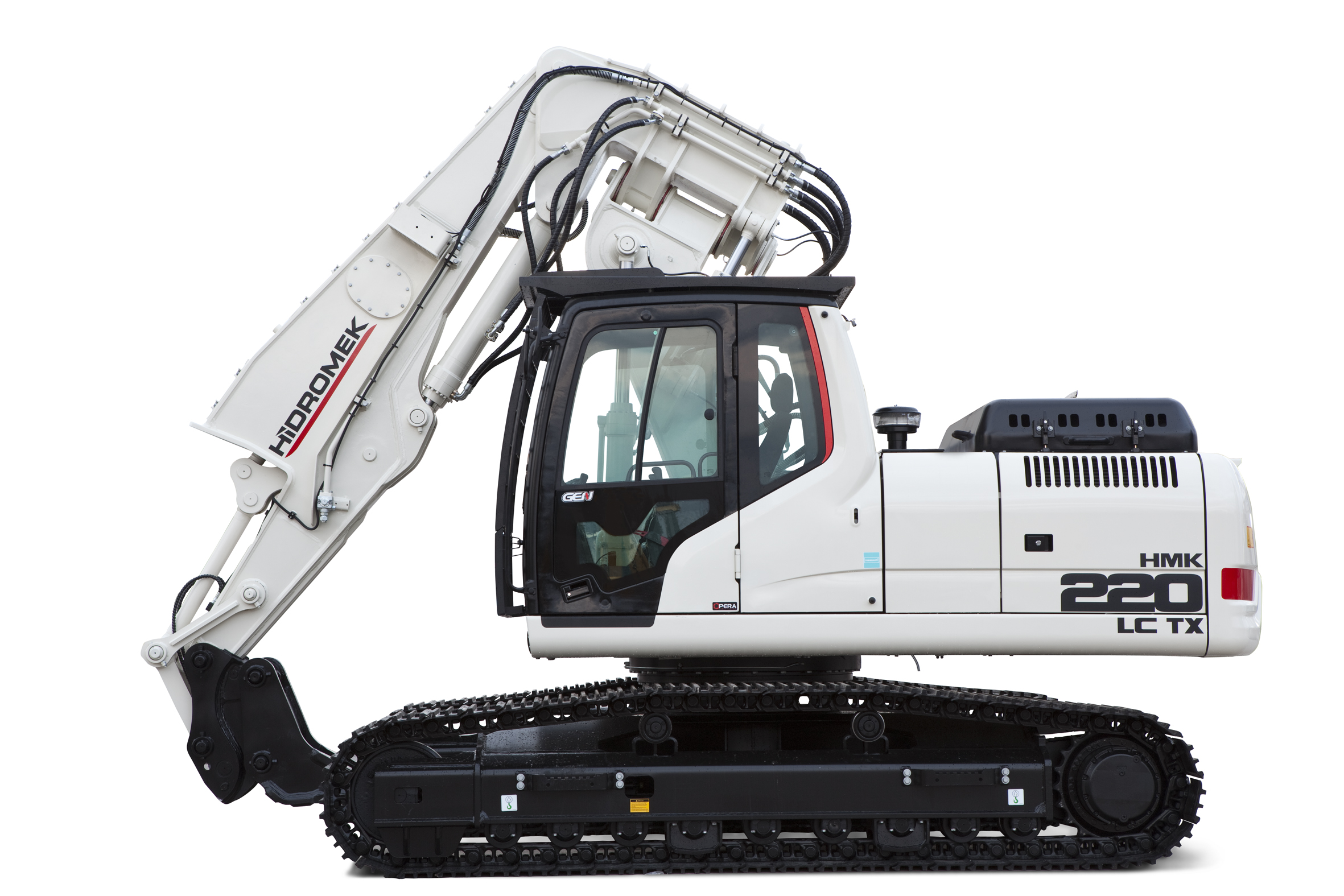

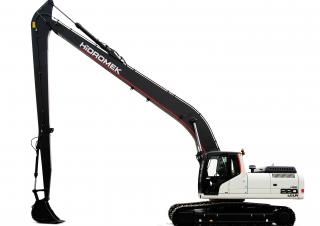

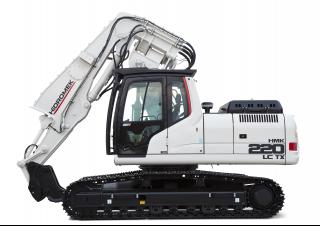

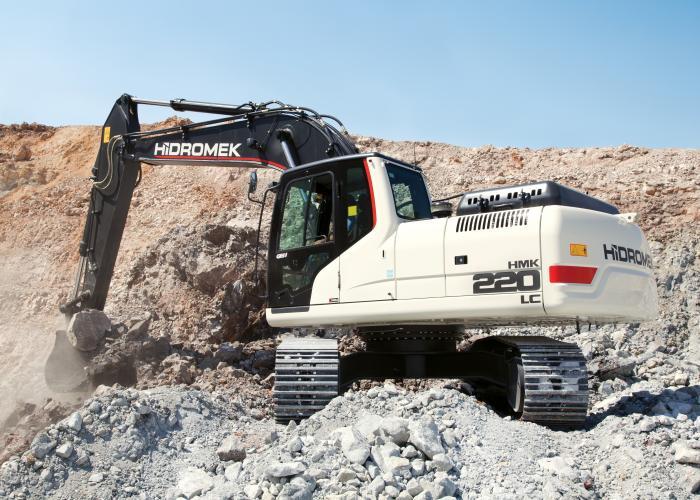

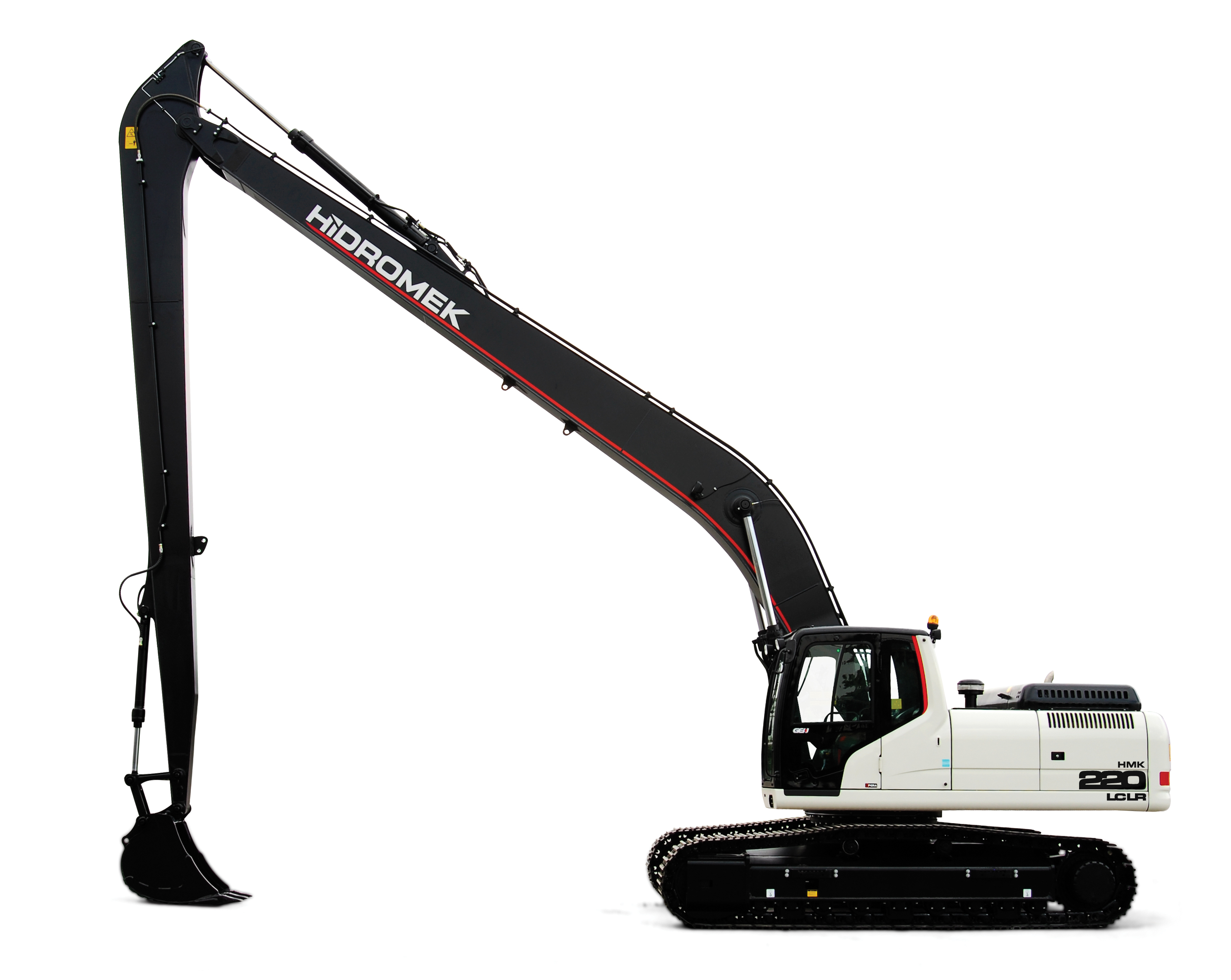

HMK 220 LC Hidromek excavator specs & Dimensions (2002 - 2010)
-
Model rating
- 9,33 / 10
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Hidromek live at
Technical specs - HMK 220 LC Hidromek
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 22.3 t
- Bucket capacity
- 1 m³
- Undercarriage
- LC
- Track width
- 600 mm
- Boom
- MB
- Max. Reach horizontal
- 10.05 m
- Dredging depth
- 6.5 m
- Tear-out force
- 16.7 kN
- Bucket width
- 0.6 m
- Model series
- HMK
- Engine manuf.
- Mitsubishi
- Engine type
- 6 D 32
- Engine power
- 114 kW
- Displacement
- 5.9 l
- Revolutions at max torque
- 1500 rpm
More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
No
- Track adjustment
-
No
- Blade
-
No
- Cabin adjustment
-
Yes
- Overload alert
-
Yes
- Material Handling Excavator
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
