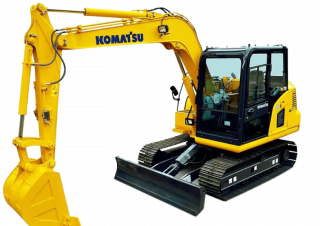

PC70-8 Komatsu excavator specs & Dimensions (2015 - 2022)

Komatsu PC70-8 is a Crawler Excavator manufactured from 2015 to 2022, with a weight of 6.59 t. It features a track width of 450 mm…

Komatsu PC70-8 is a Crawler Excavator manufactured from 2015 to 2022, with a weight of 6.59 t. It features a track width of 450 mm, a transport length of 6.08 m, a transport width of 2.225 m, and a transport height of 2.5 m. The machine has a tear-out force of 54.8 kN, a dredging depth of 4.1 m, and a maximum horizontal reach of 6.22 m. The bucket width is 0.655 m, with a bucket capacity ranging from 0.3 m³ to 0.37 m³. It is equipped with air conditioning.

Crawler Excavators Komatsu PC70-8

Visit Komatsu live at

Technical specs - PC70-8 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.59 t
Transport length
6.08 m
Transport width
2.225 m
Transport height
2.5 m
Bucket capacity min.
0.3 m³
Bucket capacity max.
0.37 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.22 m
Dredging depth
4.1 m
Tear-out force
54.8 kN
Bucket width
0.655 m
Engine manuf.
Komatsu
Engine type
SAA4D95LE-5
Engine power
50.7 kW
Displacement
3.26 l
No. of cylinders
4
Cylinder bore x stroke
95x115 mm
Emission level
Tier 3/Stage IIIA

More technical details, like: bucket capacity, undercarriage, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Komatsu PC70-8 FAQ

When was the Komatsu PC70-8 manufactured?

The Komatsu PC70-8 was manufactured from 2015 to 2022.

How much does the Komatsu PC70-8 weigh?

The Komatsu PC70-8 weighs 6.59 tons.

What are the transport dimensions of the Komatsu PC70-8?

The Komatsu PC70-8 has a transport length of 6.08 meters, a transport width of 2.23 meters, and a transport height of 2.5 meters.

What is the track width of the Komatsu PC70-8's undercarriage?

The Komatsu PC70-8 has a track width of 450 mm.

What are the excavation performance specifications of the Komatsu PC70-8?

The Komatsu PC70-8 has a dredging depth of 4.1 meters, a maximum horizontal reach of 6.22 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Komatsu PC70-8?

The Komatsu PC70-8 has a tear-out force of 54.8 kN.

What are the bucket specifications of the Komatsu PC70-8 excavator?

The Komatsu PC70-8 excavator has a bucket with a maximum capacity of 0.37 cubic meters, a minimum capacity of 0.3 cubic meters, and a width of 0.655 meters.

How much is a Komatsu PC70-8 Crawler excavator (2015u20132022) worth?

The residual value of the Komatsu PC70-8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
