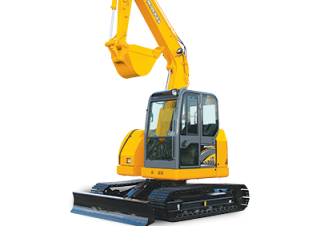

HD308US-6A Kato excavator specs & Dimensions (2017 - 2023)

Kato HD308US-6A is a crawler excavator manufactured since 2017, with a weight of 7.3 tons. It features a track width of 450 mm, a …

Kato HD308US-6A is a crawler excavator manufactured since 2017, with a weight of 7.3 tons. It features a track width of 450 mm, a transport length of 5.82 meters, a transport width of 2.3 meters, and a transport height of 2.6 meters. The excavator has a tear-out force of 61.4 kN, a dredging depth of 4.12 meters, and a maximum horizontal reach of 6.47 meters. The bucket width is 0.77 meters, and the bucket capacity is 0.5 cubic meters.

Crawler Excavators Kato HD308US-6A

Technical specs - HD308US-6A Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.3 t
Transport length
5.82 m
Transport width
2.3 m
Transport height
2.6 m
Bucket capacity
0.5 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.47 m
Dredging depth
4.12 m
Tear-out force
61.4 kN
Bucket width
0.77 m
Model series
HD
Engine manuf.
Isuzu
Engine type
CP-4LE2X
Engine power
43 kW
Displacement
2.179 l
Revolutions at max torque
1800 rpm
Max. torque
215 Nm
No. of cylinders
4
Cylinder bore x stroke
85x96 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD308US-6A FAQ

When was the Kato HD308US-6A manufactured?

The Kato HD308US-6A was manufactured from 2017 to 2023.

How much does the Kato HD308US-6A weigh?

The Kato HD308US-6A weighs 7.3 tons.

What are the transport dimensions of the Kato HD308US-6A crawler excavator?

The Kato HD308US-6A has a transport length of 5.82 meters, a transport width of 2.3 meters, and a transport height of 2.6 meters.

What is the track width of the Kato HD308US-6A crawler excavator?

The Kato HD308US-6A crawler excavator has a track width of 450 mm.

What are the excavation performance specifications of the Kato HD308US-6A crawler excavator?

The Kato HD308US-6A has a dredging depth of 4.12 meters, a maximum horizontal reach of 6.47 meters, and features a monobloc boom.

What are the power ratings of the Kato HD308US-6A?

The source data does not provide any power rating information for the Kato HD308US-6A.

What are the bucket specifications of the Kato HD308US-6A crawler excavator?

The Kato HD308US-6A has a bucket capacity of 0.5 cubic meters and a bucket width of 0.77 meters.

How much is a Kato HD308US-6A Crawler excavator (2017u20132023) worth?

The residual value of the Kato HD308US-6A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
