230C John Deere Construction excavator specs & Dimensions (2004 - 2021)

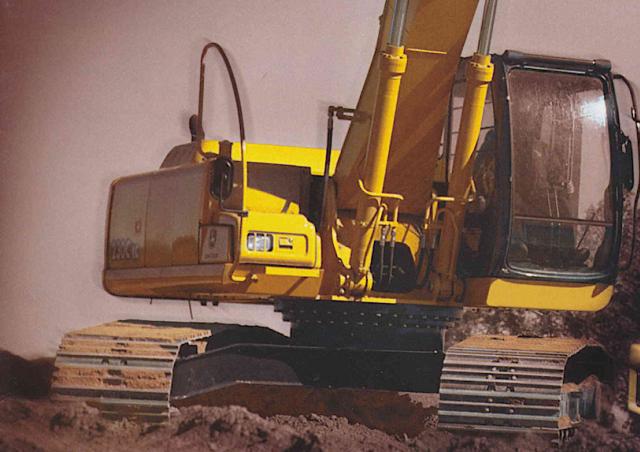

John Deere Construction 230C is a crawler excavator manufactured from 2004 to 2021. It has a weight of 24.5 tons and a track width…

John Deere Construction 230C is a crawler excavator manufactured from 2004 to 2021. It has a weight of 24.5 tons and a track width of 600 mm. The transport dimensions are 10.1 meters in length, 2.59 meters in width, and 3.1 meters in height. The machine features a tear-out force of 167 kN, a dredging depth of 6.84 meters, and a maximum horizontal reach of 9.99 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 230C

Technical specs - 230C John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.5 t
Transport length
10.1 m
Transport width
2.59 m
Transport height
3.1 m
Track width
600 mm
Max. Reach horizontal
9.99 m
Dredging depth
6.84 m
Tear-out force
167 kN
Model series
C
Engine manuf.
John Deere
Engine type
6068H
Engine power
126 kW
Displacement
6.8 l
Max. torque
700 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 230C FAQ

When was the John Deere Construction 230C manufactured?

The John Deere Construction 230C was manufactured from 2004 to 2021.

How much does the John Deere Construction 230C weigh?

The John Deere Construction 230C weighs 24.5 tons.

What are the transport dimensions of the John Deere Construction 230C crawler excavator?

The John Deere Construction 230C has a transport length of 10.1 meters, a transport width of 2.59 meters, and a transport height of 3.1 meters.

What is the track width of the John Deere Construction 230C's undercarriage?

The John Deere Construction 230C has a track width of 600 mm.

What are the excavation performance specifications of the John Deere Construction 230C?

The John Deere Construction 230C has a dredging depth of 6.84 meters and a maximum horizontal reach of 9.99 meters.

What is the tear-out force of the John Deere Construction 230C?

The John Deere Construction 230C has a tear-out force of 167 kN.
