135G John Deere Construction excavator specs & Dimensions (2012 - 2026)

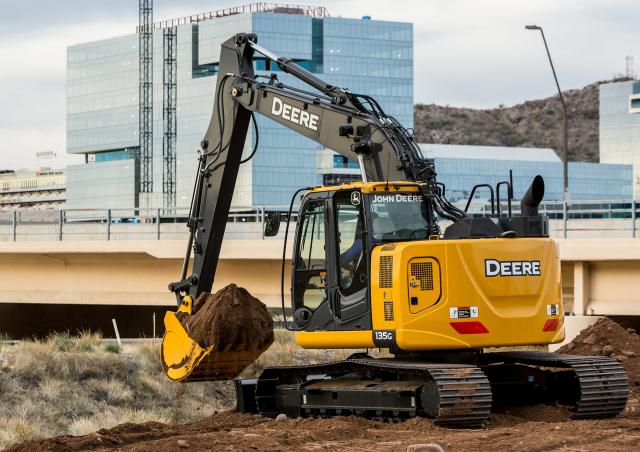

John Deere Construction 135G is a crawler excavator manufactured since 2012. It has a weight of 13.9 tons and a track width of 600…

John Deere Construction 135G is a crawler excavator manufactured since 2012. It has a weight of 13.9 tons and a track width of 600 mm. The transport dimensions are 7.37 meters in length, 2.79 meters in width, and 2.49 meters in height. The machine features a tear-out force of 96 kN, a dredging depth of 5.98 meters, and a maximum horizontal reach of 8.24 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 135G

Technical specs - 135G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.9 t
Transport length
7.37 m
Transport width
2.79 m
Transport height
2.49 m
Track width
600 mm
Max. Reach horizontal
8.24 m
Dredging depth
5.98 m
Tear-out force
96 kN
Model series
G
Engine manuf.
Isuzu
Engine type
4JJ1
Engine power
72 kW
Displacement
3 l
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 135G FAQ

When was the John Deere Construction 135G manufactured?

The John Deere Construction 135G was first produced in 2012.

How much does the John Deere Construction 135G weigh?

The John Deere Construction 135G weighs 13.9 tons.

What are the transport dimensions of the John Deere Construction 135G crawler excavator?

The John Deere Construction 135G has a transport length of 7.37 meters, a transport width of 2.79 meters, and a transport height of 2.49 meters.

What is the track width of the John Deere Construction 135G crawler excavator?

The John Deere Construction 135G crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the John Deere Construction 135G?

The John Deere Construction 135G has a dredging depth of 5.98 meters and a maximum horizontal reach of 8.24 meters.

What is the tear-out force of the John Deere Construction 135G?

The John Deere Construction 135G has a tear-out force of 96 kN.

How much is a John Deere Construction 135G Crawler excavator (2012u20132025) worth?

The residual value of the John Deere Construction 135G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
