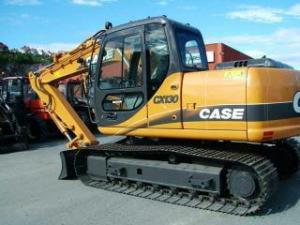

CX 130 Case excavator specs & Dimensions (2001 - 2005)

Model rating: 9,00 / 10

Case CX 130 is a Crawler Excavator manufactured from 2001 to 2005, with a weight of 12.6 t. It features a track width of 700 mm, a…

Case CX 130 is a Crawler Excavator manufactured from 2001 to 2005, with a weight of 12.6 t. It features a track width of 700 mm, a transport length of 7.49 m, a transport width of 2.69 m, and a transport height of 2.74 m. The excavator is equipped with air conditioning and an overload alert system.

CX 130

Years of manufacture: 2001—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CX 130 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.6 t

Transport length: 7.49 m

Transport width: 2.69 m

Transport height: 2.74 m

Bucket capacity: 0.54 m³

Undercarriage: LC

Track width: 700 mm

Boom: MB

Max. Reach horizontal: 8.90 m

Dredging depth: 5.16 m

Tear-out force: 80.2 kN

Bucket width: 0.9 m

Engine manuf.: Isuzu

Engine type: BB-4BG1T

Engine power: 69 kW

Displacement: 4.329 l

Revolutions at max torque: 2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case CX 130 FAQ

When was the Case CX 130 manufactured?

The Case CX 130 was manufactured from 2001 to 2005.

How much does the Case CX 130 weigh?

The Case CX 130 weighs 12.6 tons.

What are the transport dimensions of the Case CX 130 crawler excavator?

The Case CX 130 has a transport length of 7.49 meters, a transport width of 2.69 meters, and a transport height of 2.74 meters.

What are the undercarriage specifications of the Case CX 130?

The Case CX 130 has a long undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Case CX 130?

The Case CX 130 has a dredging depth of 5.16 meters, a maximum horizontal reach of 8.9 meters, and features a Monobloc boom.

What is the tear-out force of the Case CX 130?

The Case CX 130 has a tear-out force of 80.2 kN.

What are the specifications of the primary work tool bucket on the Case CX 130?

The primary work tool bucket of the Case CX 130 has a capacity of 0.54 cubic meters and a width of 0.9 meters.
