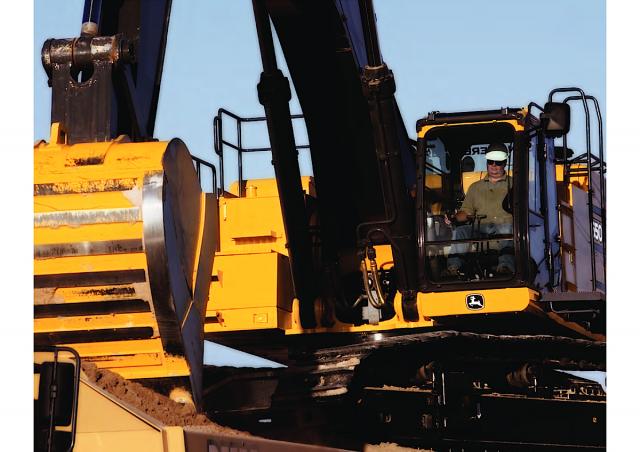

650D John Deere Construction excavator specs & Dimensions (2007 - 2021)

John Deere Construction 650D is a crawler excavator manufactured from 2007 to 2021. It has a weight of 69 tons and a track width o…

John Deere Construction 650D is a crawler excavator manufactured from 2007 to 2021. It has a weight of 69 tons and a track width of 700 mm. The transport dimensions are 13.21 meters in length, 4.19 meters in width, and 4.47 meters in height. The machine features a tear-out force of 290 kN, a dredging depth of 8.53 meters, and a maximum horizontal reach of 13 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 650D

Technical specs - 650D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
69 t
Transport length
13.21 m
Transport width
4.19 m
Transport height
4.47 m
Track width
700 mm
Max. Reach horizontal
13 m
Dredging depth
8.53 m
Tear-out force
290 kN
Model series
D
Engine manuf.
Isuzu
Engine type
AHGWG1XYSA02
Engine power
345 kW
Displacement
15.6 l
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 650D FAQ

When was the John Deere Construction 650D manufactured?

The John Deere Construction 650D was manufactured from 2007 to 2021.

How much does the John Deere Construction 650D weigh?

The John Deere Construction 650D weighs 69 tons.

What are the transport dimensions of the John Deere Construction 650D?

The John Deere Construction 650D has a transport length of 13.21 meters, a transport width of 4.19 meters, and a transport height of 4.47 meters.

What is the track width of the John Deere Construction 650D crawler excavator?

The John Deere Construction 650D crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the John Deere Construction 650D?

The John Deere Construction 650D has a dredging depth of 8.53 meters and a maximum horizontal reach of 13 meters.

What is the tear-out force of the John Deere Construction 650D?

The John Deere Construction 650D has a tear-out force of 290 kN.

How much is a John Deere Construction 650D Crawler excavator (2007u20132021) worth?

The residual value of the John Deere Construction 650D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
