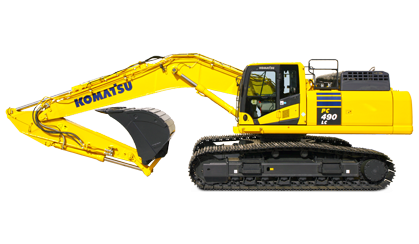

PC490LC-10 Komatsu excavator specs & Dimensions (2012 - 2016)

Komatsu PC490LC-10 is a Crawler Excavator manufactured from 2012 to 2016, with a weight of 47.91 tons. It features a track width o…

Komatsu PC490LC-10 is a Crawler Excavator manufactured from 2012 to 2016, with a weight of 47.91 tons. It features a track width of 800 mm, a transport length of 11.91 meters, a transport width of 3.69 meters, and a transport height of 3.875 meters. The excavator is equipped with air conditioning and an overload alert system.

Crawler Excavators Komatsu PC490LC-10
Crawler Excavators Komatsu PC490LC-10

Visit Komatsu live at

Technical specs - PC490LC-10 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
47.91 t
Transport length
11.91 m
Transport width
3.69 m
Transport height
3.875 m
Bucket capacity
3.5 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
11.08 m
Dredging depth
6.78 m
Model series
PC
Engine manuf.
Komatsu
Engine type
SAAD125E-6A
Engine power
270 kW
Displacement
11.04 l
Revolutions at max torque
1900 rpm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC490LC-10 FAQ

When was the Komatsu PC490LC-10 manufactured?

The Komatsu PC490LC-10 was manufactured from 2012 to 2016.

How much does the Komatsu PC490LC-10 weigh?

The Komatsu PC490LC-10 weighs 47.91 tons.

What are the transport dimensions of the Komatsu PC490LC-10?

The Komatsu PC490LC-10 has a transport length of 11.91 meters, a transport width of 3.69 meters, and a transport height of 3.88 meters.

What are the undercarriage specifications of the Komatsu PC490LC-10?

The Komatsu PC490LC-10 has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the Komatsu PC490LC-10?

The Komatsu PC490LC-10 has a dredging depth of 6.78 meters, a maximum horizontal reach of 11.08 meters, and features a monobloc boom.

What is the bucket capacity of the Komatsu PC490LC-10?

The bucket capacity of the Komatsu PC490LC-10 is 3.5 cubic meters.

How much is a Komatsu PC490LC-10 Crawler excavator (2012u20132016) worth?

The residual value of the Komatsu PC490LC-10 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Events

Visit Komatsu live at

NordBau 2026

Holstenhallen Neumünster, Germany

September —
NordBau 2026

Machine inspection

Ask for inspection of your Komatsu PC490LC-10 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Compare Komatsu PC490LC-10 with similar Crawler Excavators

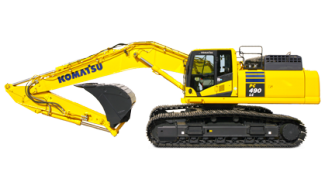

Komatsu PC490LC-10
