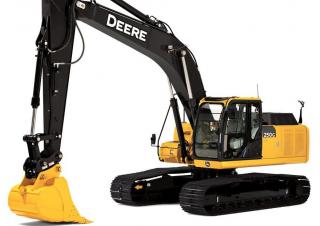

250G LC John Deere Construction excavator specs & Dimensions (2017 - 2026)

John Deere Construction 250G LC is a crawler excavator manufactured since 2017. It has a weight of 25.46 tons and a track width of…

John Deere Construction 250G LC is a crawler excavator manufactured since 2017. It has a weight of 25.46 tons and a track width of 800 mm. The transport dimensions are 10.41 meters in length, 3.39 meters in width, and 3.37 meters in height. The machine features a tear-out force of 189 kN, a dredging depth of 6.5 meters, and a maximum horizontal reach of 10.75 meters. It is equipped with air conditioning.

Crawler Excavators John Deere Construction 250G LC

Technical specs - 250G LC John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.46 t
Transport length
10.41 m
Transport width
3.39 m
Transport height
3.37 m
Track width
800 mm
Model series
G
Engine manuf.
John Deere
Engine type
PowerTech PVS 6.8L
Engine power
140 kW
Displacement
6.8 l
Revolutions at max torque
2100 rpm
No. of cylinders
6
Emission level
Tier 4f/EU IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 250G LC FAQ

When was the John Deere Construction 250G LC manufactured?

The John Deere Construction 250G LC was first produced in 2017.

How much does the John Deere Construction 250G LC weigh?

The John Deere Construction 250G LC weighs 25.46 tons.

What are the transport dimensions of the John Deere Construction 250G LC?

The John Deere Construction 250G LC has a transport length of 10.41 meters, a transport width of 3.39 meters, and a transport height of 3.37 meters.

What is the track width of the John Deere Construction 250G LC crawler excavator?

The John Deere Construction 250G LC crawler excavator has a track width of 800 mm.

How much is a John Deere Construction 250G LC Crawler excavator (2017u20132025) worth?

The residual value of the John Deere Construction 250G LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
