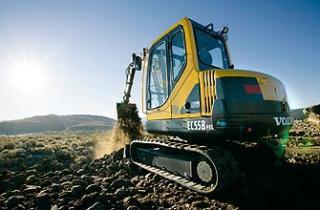

EC55B Pro Volvo excavator specs & dimensions (2003 - 2009)

Power where you need it
The EC55B Pro features a larger lift cylinder and increased hydraulic system pressure for greater lifting force and higher productivity. The high quality hydraulic system is available up to heavy, long cycle tests with reliability for the daily attack of your work. Increased hydraulic pressure in the auxiliary line increases attachment performance, faster cycle times and better operating economy.
We're strong and stable
The EC55B Pro offers an improved conventional design for more digging performance. The larger, longer counterweight ensures increased balance and lifting force. The combination of increased hydraulic pressure and a heavier counterweight boosts slope swinging for fast cycle times during incline work. For higher reliability and greater resale value, boom support resistance has been enhanced by a large 80 mm pin diameter and an additional bushing.

Start your engines
The EC55B Pro model features a proven 16-valve, 37 kw volvo engine for performance, power and low fuel consumption. And the machine is built to dig offering impressive bucket digging forces.
Made easy to service
Open the wide rear cover for overall access to all critical check points. Plus, it is quick and easy to check service levels and change oil. Powerful 16-valve STEP 2/TIER 2 Volvo engine. Two stage air filtration system eliminates pre-air cleaner needs and helps increase engine life. Larger lift cylinders for greater lifting capacity.
Low-emission engine meeting step 2
Environmental regulations. Two stage air filter with blinding indicators. Electric heating device. Diesel filter and sediment chamber. Electro fuel tank fill pump (35 l/min). Oil sump sheet metal. Smooth-sounding double housing muffler.
Monitoring and warning light for the
following functions: preheating, engine oil pressure, water temperature, battery charge, air filter clogging. Internal and external fuel readings. Hour meter.

Controls at your fingertips
The joystick controls are mounted close to the armrests for convenience and power-assisted for smooth, precise movements.There is also ergonomic forward and reverse travel pedals allowing you to reposition the machine while controlling equipment with the joysticks. In addition, the instrument panel can be angled at-a-glance monitoring. Ergonomic position towards front and backward travel pedals. Instrument panel can be sloping. Wide cab offers plenty of legroom for better comfort.
Precise, smooth movement
The dipper movement is extremely fast for more productive cycle times. In addition, the Total Power Control hydraulic system provides total independence of movement for smooth, productive work cycles.
Hydraulic system
ISO power-assisted hydraulic control. Cylinder cushions with contamination seals. Total Power Control System. Boom dumping device. Multiple filtration system (30 μm). Double acting hydraulic circuit for accessories fitted to the boom. Force assisted control of the hydraulic offset point of the boom by the left manipulator. Auxiliary hydraulic valve port for Hammer. Control of forward and reverse movement by two levers coupled to pedals.

All-day comfort
The windscreen features a gas support point, making it easy to open and attach. There are also tinted windows and standard air conditioning with five vents for excellent cabin cooling. A standard radio/cassette player with two speakers increases comfort. Noise reducing seals and insulation dramatically reduce noise levels in and out of the cab.Operators appreciate reduced fatigue while those working nearby will experience a safer environment.
A versatile approach
A standard double impact circuit is available for use with hydraulic attachments such as breakers and aggregators. The exclusive Volvo quick-change coupler makes it easy to change buckets or attachments without leaving the cab.

A sturdy, rigid design
The center of the undercarriage is X-shaped for better load distribution and more stable operation in extreme conditions.The undercarriage is also very longfor incredible stability, performance and comfort.The blade cylinder and connections are well protected.Vibration protection tracks provide smooth travel even at higher speeds. The counterweight is rounded out and wraps around the sides to protect the engine cover which is reset from the counterweight to help protect it even more.
Undercarriage
(4, mm wide rubber tracks. Dozer blade. Remote lubrication of the turning ring. Ashtray. Cigarette lighter.
Handling and earthwork equipment
(3 030 mm) long monoblock boom. (1 540 mm). Remote lubrication of the offset and dipper arm cylinders. Windshield washer on front window. 3471/SAE J 1040.

Electrical system
Maintenance-free 12 V - 100 AH battery. Starter motor 12 v, 3 kw. Halogen working lights (2 on the tower and 1 on the boom). Heater and air conditioner. Tinted windows. ROPS (Roll-Over Protective Structure). TOPS (Tilt-Over Protective Structure). Fabric-covered multi-adjustable jump seat. Non-slip floor and grab handle for access to the driver's cab. Seat belt. Adjustable control console. Removable front window. Removable lower side window. Rear view mirror in cab. Rubber mounting. Radio/cassette player with 2 speakers. Flexible air routing. Interior lighting. Intermittent windscreen wipers and anti-aircraft controls.

Helping you work safely
The wide door and retractable console provide safe, easy access to the operator station.The machine is only started when the console and safety lever are in position as well as locking off the controls whenever raised to prevent accidental movement.A safety valve on the dozer blade maintains the selected blade position. In addition, the instrument panel has a monitoring system that closes the engine with a big problem.
Safety
Device for locking the controls when the left console is raised or safety levers are down to gain access to the driver's cab. Safety valve on the blade cylinder. Pressure accumulator on the power assist circuit to be able to put the equipment onto the ground when the engine is turned off. Window breaker hammer (cab).
