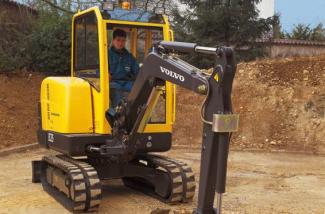

EC25 Volvo excavator specs & dimensions (2000 - 2008)

Your top performer
We always look for the best and go further back because we know that the best always delivers. Look at the Volvo EC25 and EC30, and hit your new top performer: get into the spacious cab, take a look around to receive a visual command of the entire job site with excellent visibility and clear line of sight down to the bucket. Immerse yourself in with the powerful Volvo Bucket and get the power you demand with a wide range of movements spanning over 200 revolutions. It is the kind of shovel performance you would expect from a full-fledged excavator guaranteeing a good entry angle and square trenching on all depths. And since many of today's jobsites are tight and stowed away, you will appreciate the hydraulic offset of the boom which reduces the overall dimensions of the excavator and makes it possible to work alongside a wall, building or road side.
An efficient use of your resources
Let's get the job done and save some of your valuable resources – such as time and fuel. The new generation Volvo engine offers proven power, superior fuel efficiency and power for fast cycle times that allow you to enter into the next profitable job. With strong bucket breakage and digging depth deep enough to get the factory completed, EC25 and EC30 fit perfectly with the job. The powerful load-sensing hydraulic system uses the best available technology. And it is not only easy to operate but also gives you a powerful, smooth operation and total independence of all movements. The hydraulic load-sensing circuit allows use of two or more hydraulic functions without loss of power or movement. Get ready for increased productivity because it has never been easier to finish even more.
Make quick work of multiple jobs
With compact equipment, you want the flexibility to tackle a wide range of tasks for maximum profits with speed and ease. Volvo EC25 and EC30 Compact Excavators help you develop more with the exclusive Volvo Quick Coupler attachment bracket. Move from job to work place, switch buckets and attachments easily - all out of the operator's cab. When next working call doesn‘t require an entire fleet of machines. The Volvo Quick Coupler Mount completes the job, Large movement: over 200th Wide range of available attachments. Quick coupler for quick, easy changes.

Engine
Dry air filter. Electric preheating device. Fuel water trap with sediment bowl. Sink candles under the diesel oil tank. Oil pan guard. Continuous adjustment of engine speed.
Electrical system
12 V - 70 Ah battery. 12 V power socket for inspection lamp.
Cab and canopy versions
Monitoring and warning light for: preheating, engine oil pressure, water temperature, battery charge, hydraulic filter restriction, air filter restriction. Fuel gauge. Hour meter. Automatic shutdown of the engine in case of overheating or drop oil pressure.
Official approval
FOPS 1 to ISO standard 3449 and SAE J1043. TOPS to ISO standard 12117. ROPS to SAE J1040 and ISO 3471. Engine in accordance with US EPA regulations. Maintenance tool kit.

Rear impact protected counterweight. Optimum load-sensing efficiency. Easy to operate, smooth precise controls.
Built for big performance
The design is compact, but the performance is greater than you might expect. Just like larger Volvo Excavators, Volvo EC25 and EC30 compact excavators are also built on a permanent basis, with durable frames and components. Direct swing transmission is driven directly by a hydraulic motor. Direct-motor drive eliminates intermediate carriers commonly used in compact excavators. There's no wear, play or maintenance costs associated with a carrier powered machine. Long-lasting robust tracks offer exceptional stability, higher safety and reduced ground pressure.
Built for today's jobsites
Durability means long service life and greater uptime. The sturdy upper frame features a twin-yoke boom pivot point that doubles the wear area in the frame. This allows to use a longer pin. This ensures better distribution of stress, with less wear and reduced pin to bearing play. The X-shaped undercarriage provides better load distribution on the side elements for more rigidity and robustness. The top part of the side member slope avoiding debris collection and easy cleaning. And for safe operation on today's narrow jobsites, the enveloping shape of the counterweight offers excellent protection against rear impacts. Spacious and comfortable cab. Full day comfort ergonomic armrests. Large floor space and plenty of leg clearance.
All access availability
The best way to achieve higher productivity and greater profitability is through reliable machines that are in operation. Volvo helps you avoid unscheduled downtime with machines built for simple, easy servicing. The key to this is accessibility, and the EC25 and EC30 provide perfect accessibility to the hydraulic and engine compartments. The control valves and all hydraulic components are located in an easily accessible hydraulic compartment on the side of the machine. And for ultimate access to the engine will be a Volvo Exclusively appreciated: opening counterweight. This Volvo innovation not only provides excellent ease of entry into the engine space but also offers total protection at the rear of the machine due to the enveloping shape of the counterweight.
Intelligent, by design
For less wear and less maintenance time, all hoses that deliver the boom are loosely affixed to the outside of the machine without going into swinging. This prevents rubbing and wear; at the same time it is easy to replace the hoses when needed. It's just another of the many ways Volvo offers more care. Built in a robust, rigid X-shaped chassis. Lock controls help prevent accidents. Complete hydraulic compartment access.

Loose attachment hoses resist downtime. Durable sturdy upper case. Swinging counterweight for easy access.

Volvo Construction Equipment is different. It's designed, built and supported in a different way. That differ from an engineering heritage of more 170 years. A heritage of thinking first about the people who actually use the machines. About how they can help them be safer, more comfortable and productive. About the environment we all share. The result of this thinking is a growing range of machines and a global support network aimed at enabling you to do more.

Undercarriage
1'10 (300 mm) wide rubber tracks. Dozer blade. Towing and anchor points. Remote lubrication of the swing crown ring.
Working equipment
EC25 Only - 6'11 (2100 mm) long monobloc boom. EC30 Only - 7'7 (2300 mm) long monobloc boom. 3'11 (1200 mm) dipper. 140o hydraulic boom offset. Boom stick cushions. Handling equipment: hook on bucket with load table shown in the remote lubrication of the driver‘s offset cylinder and crown gear drive.
Working equipment
Long dipper (4'11 - 1500 mm). Mechanically controlled quick latch bracket. Hydraulically controlled quick latch bracket.
Lighting
Additional work light on the boom. Further rear working light. Turning fire.

Comfort that brings out your best
Open the cabin door and experience the spacious Volvo cab. The expansive, flat floor provides plenty of legroom even for large operators. There is also ample room for tools and personal items. Transport levers are equipped with pedals to control earthmoving equipment at the same time and forward movements. The hydraulic attachment control pedal is positioned on the right hand side for easy access, fold away if not in use.
Hydraulic system
Control pattern selector valve (ISO/SAE). Circuit for hydraulic breaker with folding control pedal and direct return of oil to the hydraulic tank. Pipeline up to dipper arm. Power-assisted control of the hydraulic boom through the left hand control lever. Control of travel movement by two levers coupled to pedals. Stage 1 FOPS (Falling Objects protective Structure). TOPS (Tip-Over Protective Structure). ROPS (Roll-Over Protective Structure). Fabric-covered, multiadjustable, suspended slip resistant floor and grab handle for access to the driver's cab. Seat belt. Cab mounted on rubber attachments. Two work lights. Dual heating and ventilation. Cabin heat adjustment. Front window with opening system Powered by 2 gas ramps. Sliding windows (right). Door stops. Provision of a radio (location for one radio and two speakers, antennas and electric wiring already fitted). Interior lighting. Corrosion protection of the cabin. Windshield wiper and windscreen washer) Emergency exit via rear window.
Canopy
Stage 1 FOPS (Falling Objects protective Structure). TOPS (Tip-Over Protective Structure). ROPS (Roll-Over Protective Structure). Vinyl covered, multiple adjustable, suspension suspended seat. Non-slip floor and grab handle for access to the driver's cab. Seat belt. Working light on canopy frame. Instrumentation and monitoring.
Hydraulic circuits for attachments
Hydraulic circuit for double-acting attachments (augers, thumbs...), hydraulic circuit to operate a clamshell bucket (open/close and turn the bucket).

You're in the safe zone
It's time to go to work, and Volvo ensures it is safe starting from the first step. Climb into the operator‘s cab, engage the safety handle and enter through the wide opening door. The cabin floor and steps are anti-skid. When the left console is raised all machine travel controls are locked in neutral position to avoid risk of an accident. Sitting in the quiet canopy you will experience excellent 360 visibility thanks to large window areas providing superior command throughout the job site. The rounded contour and very compact shape of the engine cover also provides good rear visibility, especially on congested jobsites.
Protecting what's important
Today's construction sites can be dangerous and unpredictable, which is why Volvo helps ensure operator safety with durable structures. The EC25 and EC30 function cabs and cabs of a very high level of safety guaranteed by the FOPS 1, ROPS and TOPS certifications.
Safety
System for locking the work equipment controls and travel levers when the left console is raised to access or exit the operator's stand. Engine safety begins: The left console must be raised to operate the starter. Pressure accumulator on the power assist circuit will be able to lower down with the engine engaged Key-lockable toolbox.
Comfort and safety
Radio (cab). Anti-theft (2 programmable codes). Rear wind deflector on canopy. Electrical shut down switch.
