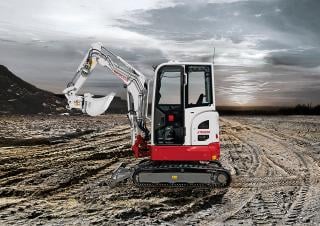

TB 325 R Takeuchi excavator specs & dimensions (2021 - 2026)

Hydraulic Joystick Controls

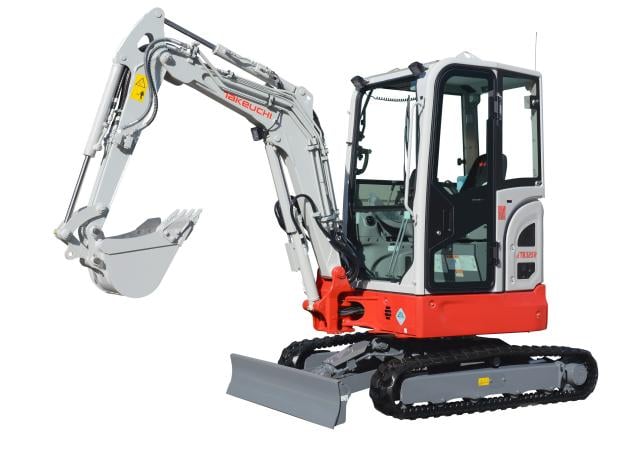

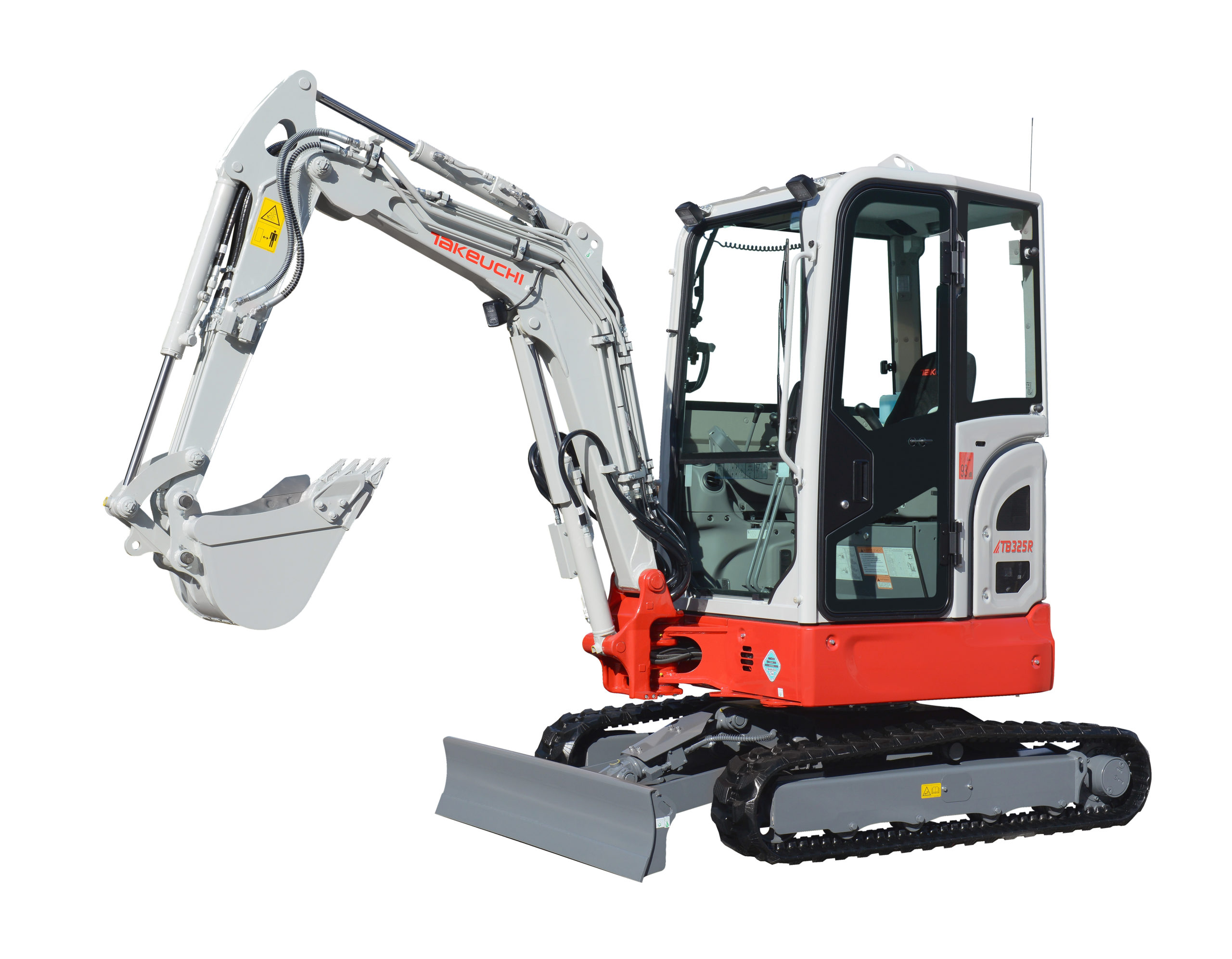

The TB325R is the latest addition to Takeuchi's 300 series excavator system. This new model features a short rear swing design that reduces overhang from counterweight and leads to improved maneuverability and increased productivity on confined jobsites. Due to its compact size and low weight, the TB325R can be easily transported. The TB325R has numerous upgrades and operator comfort functions now standard in the new 300 Series excavator range. These features include an all-new designed automotive equipment with intuitive, hydraulic pilot controls for precise operation, a 3.5 display panel and centralized rock switch bank. The station size of the operator is enlarged by the previous model, the TB23R which makes it very spacious in the short tail industry. These new features offer the operator unmatched comfort and visibility during a machine designed for optimum productivity, performance and reliability.

ENGINE
- EU Stage V Emissions compliant - Engine pre-heat starting aid - Automatic deceleration - Double element air cleaner (optional) - Automatic fuel glare system - High capacity fuel filters - Motor Safety Start System

HYDRAULIC
- Variable Displacement Piston Pump - Hydraulic Joystick Controls - Service port 1 with proportional control - Detent for service connection 1 - Service port 2 with proportional control (optional) - Service port 3 for Quick Hitch (optional) - Service port 4 with proportional control (optional) - Service port Plum on arm - Hydraulic tank with fluid sight gauge - Hydraulic dial valve (1-way / 2-way) - Pilot accumulator (optional) - Air breathing, hydraulic tank - Auto tank (The tank circuit is opened automatically (optional) - Adjustable hydraulic flow for service connections 1, 2 and 4

- 2021 Takeuchi MFG. Co., Ltd. All rights reserved. Pursuant to our established policy of continuous improvement, specifications and features may change without notice. Pictures may show options other than standard equipment. Form: TB325R Compact Excavator Spec Sheet - Feb.

- TFM (Takeuchi Fleet Management;
GPS) (optional) - Minimizing downtime - Remote Diagnostics - Utilization Tracking - Proactive Maintenance - Control Costs

- Mono Boom Swing - Padded boom and swing cylinder - Boom swing plug (optional) - 960 mm arm - 1,210 mm arm - Arm holding valve (optional) - Boom holder with lift alarm (optional) (optional) - Pattern change valve (ISO or, lifting point to bucket linkage)

ELECTRICAL
- 3.5 Multi-information display - 12 volt system with 40 amp generator - Battery switch - 2 LED Canopy Lights - 1 LED working light on the boom - 1 LED Cab front light - Additional LED Cab front light (optional) (in cab only) - Beacon pedestal and lamp switch - TSS (Takeuchi safety system; immobilizer) (optional) - Hour meter - Travel alarm (optional)
- ROPS / TOPS / OPG (Top Guard,
Level, Cab and Canopy - Suspension Seat - Cab with Heat, Defrost, Windshield wiper and Lower Disc, Skylight, AM / FM / Bluetooth Radio, 12v Power Outlet - 2 Retractable Seat Belt - Drain on the Floor - Foldable Travel Pedal (optional) - OPG Level I Front Guard (Cab optional)
