TB 235-2 Takeuchi excavator specs & dimensions (2019 - 2026)

Takeuchi TB 235-2 is a mini excavator manufactured since 2019, with a weight of 3.46 t and a track width of 300 mm. It has a trans…

Takeuchi TB 235-2 is a mini excavator manufactured since 2019, with a weight of 3.46 t and a track width of 300 mm. It has a transport length of 4.86 m, a transport width of 1.58 m, and a transport height of 2.49 m. The machine features a tear-out force of 27.1 kN, a dredging depth of 3.09 m, and a maximum horizontal reach of 4.98 m. The bucket capacity is 0.1 m³. Special equipment includes air conditioning, a blade, and rubber tracks.

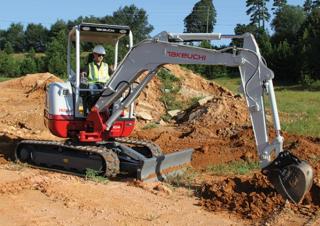

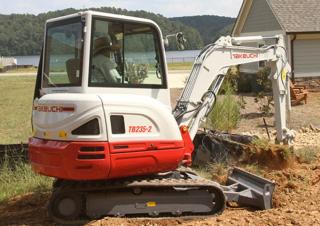

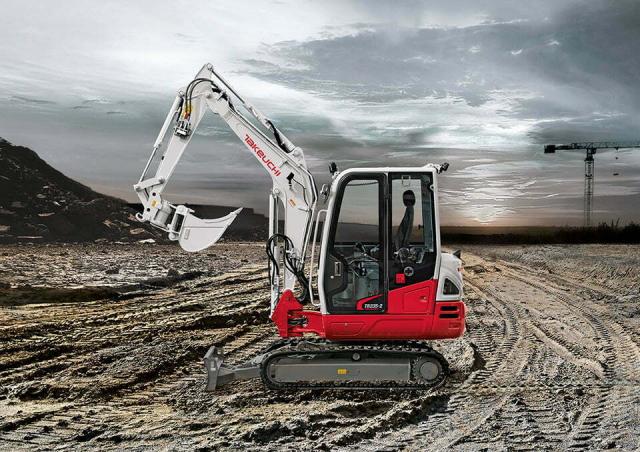

Mini Excavators Takeuchi TB 235-2
Mini Excavators Takeuchi TB 235-2
Mini Excavators Takeuchi TB 235-2
Mini Excavators Takeuchi TB 235-2
Mini Excavators Takeuchi TB 235-2
Mini Excavators Takeuchi TB 235-2
Mini Excavators Takeuchi TB 235-2
Mini Excavators Takeuchi TB 235-2

Technical specs - TB 235-2 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.46 t
Transport length
4.86 m
Transport width
1.58 m
Transport height
2.49 m
Bucket capacity
0.1 m³
Track width
300 mm
Driver protection
FD/Kb
Max. Reach horizontal
4.98 m
Dredging depth
3.09 m
Tear-out force
27.1 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV88F
Engine power
18.2 kW
Displacement
1.642 l
Revolutions at max torque
2400 rpm
Max. torque
92,2/1440 Nm
Emission level
EU V / EPA Tier 4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 235-2 FAQ

When was the Takeuchi TB 235-2 manufactured?

The Takeuchi TB 235-2 was first produced in 2019.

How much does the Takeuchi TB 235-2 weigh?

The Takeuchi TB 235-2 weighs 3.46 tons.

What are the transport dimensions of the Takeuchi TB 235-2 mini excavator?

The Takeuchi TB 235-2 has a transport length of 4.86 meters, a transport width of 1.58 meters, and a transport height of 2.49 meters.

What is the track width of the Takeuchi TB 235-2 mini excavator?

The Takeuchi TB 235-2 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Takeuchi TB 235-2?

The Takeuchi TB 235-2 has a dredging depth of 3.09 meters and a maximum horizontal reach of 4.98 meters.

What is the tear-out force of the Takeuchi TB 235-2 mini excavator?

The Takeuchi TB 235-2 mini excavator has a tear-out force of 27.1 kN.

What is the bucket capacity of the Takeuchi TB 235-2 mini excavator?

The bucket capacity of the Takeuchi TB 235-2 mini excavator is 0.1 cubic meters.

What driver protection features does the Takeuchi TB 235-2 have?

The Takeuchi TB 235-2 has driver protection features including a canopy and a cabin.

How much is a Takeuchi TB 235-2 Mini excavator (2019u20132025) worth?

The residual value of the Takeuchi TB 235-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Takeuchi TB 235-2 overview

Engine / Driveline and transmission

- EU Stage V / EPA Tier 4 Emission
Compliant - Automatic Fuel Bleed System - Automatic deceleration - Engine preheating - Working modes: Standard, ECO and High Altitude

- Triple Flanged Track Rollers - 2-Speed Travel with Automatic Shift - Sloped Frame with Open Centers - Large Wrap Around Counterweight - 300 mm Rubber Scraper - 300 mm Steel Scraper (optional) - Rubber Mats for 300 mm Steel Scraper- High Capacity Fuel Filter - Motor Safety Start System on the Left ers (optional) Console
filters (optional), large wrap around counterweight, and
emission standard compliant engine that has no DPF for low maintenance operation. Additional features include an automatic fuel fan system, a double-element air exceptional serviceability due to the engine and a side hood opening overhead for greater comfort. The operator is protected by ROPS/TOPS/OPG (TOP Guard, Level Ι) cab or canopy for more peace of mind and convenience.

Hydraulics

HYDRAULIC
- Variable Displacement Pump - Straight Travel Circuit - Hydraulic joystick controls - Proportional Control for Service Port 1 - Detent for Service Port 1 - Proportional Control for Service Port 2 - Service Port 3 for Quick Hitch (optional) - Proportional Control for Service Port 4 - Auxiliary hydraulic circuit Plum after (optional) (optional) - Hydraulic tank with fluid sight gauge - Adjustable auxiliary flow for Service Port 1, 2 and 4 - Automatic pressure release (optional) - Hydraulic selector valve (1-way / 2-way) - Pilot accumulator (optional) - Air breathing, hydraulic tank - Auto Tank (optional)

Environment

policy of continued improvement, specifications and features are subject to change without
▲ 2019 Takeuchi MFG. Co., Ltd. All Rights Reserved. According to our established notice. Pictures may show options other than standard equipment.

Tyres / Tracks

ELECTRICAL
- Engine auto stop - Fuel supply pump (optional) - Double Element Air Filter (optional) - LCD Multi-Informational Indicator (canopy) - 5.7 Colored Multi-Informational Display - Sealed Rocker Switch - 12 Volt System with 55 Ampere Alternator - Halogen Worklights - LED Light Package 1; Front cover, boom and front cab (optional) - LED light package 2; Front cover, Boom, Fore cabin and Rear Cab (optional) - Beacon Socket and Lamp switch - TFM (Takeuchi Fleet Management, only Cab) GPS) (optional) - TSS (Takeuchi Security System, Immobilizer) (optional) - Hour meter - Travel Alarm (optional) - Horn - Heavy Duty Dozer Blade with Float (optional) - Power Angle Blade with Float, and Bolt-on Cutting Edge (optional)
TAKEUCHI FLEET MANAGEMENT
- Minimizing downtime - Remote Diagnostics - Utilization Tracking - Proactive maintenance - Control costs

Dimensions and weight

OPERATING PERFORMANCE
Operating Weight - Cab3465 kg"
Operating Weight - Canopy3365 kg"
Bucket Capacity (Heaped)0.105 m³
Slew Speed9.3 min-1
Travel Speed
1st2.8 km/h
2nd4.2 km/h
Gradeability30°
Ground Pressure - Cab31.4 kPa
Ground Pressure - Canopy30.4 kPa
Maximum Bucket Breakout Force27.1 kN
MACHINE DIMENSIONS,"1,300 mm Arm1,450 mm Arm"
A Maximum Reach,"5,115 mm5,255 mm"
B Maximum Reach at Ground Level,"4,985 mm5,130 mm"
C Maximum Digging Depth,"3,095 mm3,245 mm"
D Maximum Vertical Digging Depth,"2,350 mm2,495 mm"
E Maximum Height of Cutting Edge,"4,910 mm5,010 mm"
F Maximum Dumping Height,"3,495 mm3,595 mm"
G Front Swing Radius,"1,985 mm2,005 mm"
H Front Swing Radius with Boom Offset,"1,650 mm1,660 mm"

Other features

- ROPS/TOPS/OPG (TOP Guard, Level,
Cab or canopy - Deluxe High Back Suspension Seat - 2 Retractable Seat Belt - Head Rest (optional) - 12V Power Outlet - Cabin with heat, defrost, wiper and washers, Skylight w/ Sunshade, AM / FM / MP3 / Bluetooth - Air conditioning (cab optional) - Rain screen protection (cab optional) Optional

Tables

P1 P2 Variable Displacement Pump"
Flow Rate38.9 L/min
Relief Pressure24.5 MPa
P3Gear Pump
Flow Rate21.6 L/min
Relief Pressure20.0 MPa
Service Port 1
Flow Rate60.5 L/min
Hydraulic Pressure21.0 MPa
Service Port 2
Flow Rate21.6 L/min
Hydraulic Pressure20.0 MPa
Service Port 3
Hydraulic Pressure20.0 MPa
Service Port 4
Flow Rate21.6 L/min
Hydraulic Pressure20.0 MPa
SAFETY and HEALTH
Vibration Levels
Hand / Arm< 2.5 m/s² =
Body< 0.5 m/s² =
Noise Level
ENGINE
ModelYanmar / 3TNV88F
Rated Output (ISO 14396)18.2 kW / 2400 min-1"
Maximum Torque92.2 Nm / 1440 min-1"
Displacement1642 ml"
Alternator12V - 0.66 kW
Battery (IEC 60095-1)12V - 68 A. h
FLUID CAPACITY
Engine Lubrication4.7 L
Cooling System4.0 L
Fuel Tank Capacity46.0 L
Hydraulic Reservoir Capacity35.0 L
Hydraulic System Capacity68.0 L
