TB 235 Takeuchi excavator specs & dimensions (2024 - 2026)

Weight: 3.605t – Transport length: 5.02m – Transport width: 1.63m – Transport height: 2.45m – Bucket capacity: 0.105m³ – Track wid…

Weight: 3.605t – Transport length: 5.02m – Transport width: 1.63m – Transport height: 2.45m – Bucket capacity: 0.105m³ – Track width: 350mm

Check out detailed specifications, information and technical data for Takeuchi TB 235 excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 235 digger specifications. See information, like: Weight: 3.605t – Transport length: 5.02m – Transport width: 1.63m – Transport height: 2.45m – Bucket capacity: 0.105m³ – Track width: 350mm and more.

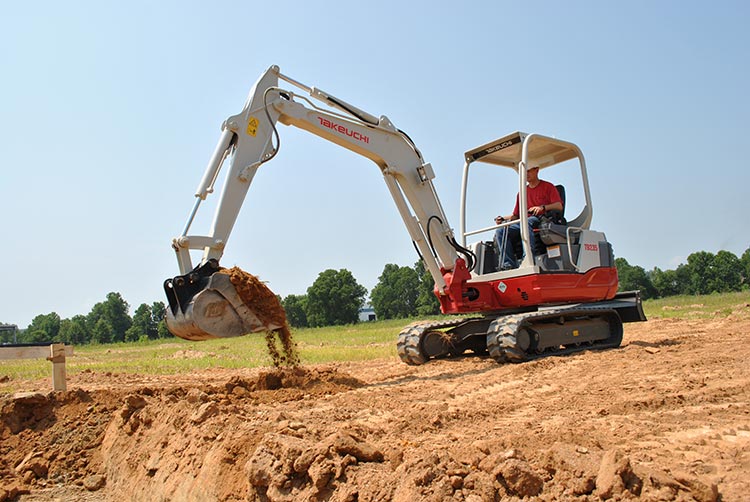

Mini Excavators Takeuchi TB 235
Mini Excavators Takeuchi TB 235
Mini Excavators Takeuchi TB 235
Mini Excavators Takeuchi TB 235
Mini Excavators Takeuchi TB 235
Mini Excavators Takeuchi TB 235
Mini Excavators Takeuchi TB 235
Mini Excavators Takeuchi TB 235
Mini Excavators Takeuchi TB 235
Mini Excavators Takeuchi TB 235

Technical specs - TB 235 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.605 t
Transport length
5.02 m
Transport width
1.63 m
Transport height
2.45 m
Bucket capacity
0.105 m³
Track width
350 mm
Driver protection
FD/Kb
Max. Reach horizontal
5.345 m
Dredging depth
3.4 m
Tear-out force
27 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
22 kW
Displacement
1.642 l
Revolutions at max torque
2400 rpm
Max. torque
107.1 Nm
Emission level
EU III A/ EPA I Tier 4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 235 FAQ

When was the Takeuchi TB 235 manufactured?

The Takeuchi TB 235 was first produced in 2024.

How much does the Takeuchi TB 235 weigh?

The Takeuchi TB 235 weighs 3.605 tons.

What are the transport dimensions of the Takeuchi TB 235 mini excavator?

The Takeuchi TB 235 has a transport length of 5.02 meters, a transport width of 1.63 meters, and a transport height of 2.45 meters.

What is the track width of the Takeuchi TB 235 mini excavator's undercarriage?

The Takeuchi TB 235 mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the Takeuchi TB 235?

The Takeuchi TB 235 has a dredging depth of 3.4 meters and a maximum horizontal reach of 5.345 meters.

What is the tear-out force of the Takeuchi TB 235 mini excavator?

The Takeuchi TB 235 mini excavator has a tear-out force of 27 kN.

What is the bucket capacity of the Takeuchi TB 235 mini excavator?

The Takeuchi TB 235 mini excavator has a bucket capacity of 0.105 cubic meters.

What operator safety and support features does the Takeuchi TB 235 have?

The Takeuchi TB 235 provides operator safety with driver protection options including a canopy and a cabin.
