TB 225 Takeuchi excavator specs & dimensions (2024 - 2026)

Weight: 2.265t – Transport length: 4.165m – Transport width: 1.5m – Transport height: 2.355m – Track width: 250mm – Driver protect…

Weight: 2.265t – Transport length: 4.165m – Transport width: 1.5m – Transport height: 2.355m – Track width: 250mm – Driver protection: FD

Check out detailed specifications, information and technical data for Takeuchi TB 225 excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 225 digger specifications. See information, like: Weight: 2.265t – Transport length: 4.165m – Transport width: 1.5m – Transport height: 2.355m – Track width: 250mm – Driver protection: FD and more.

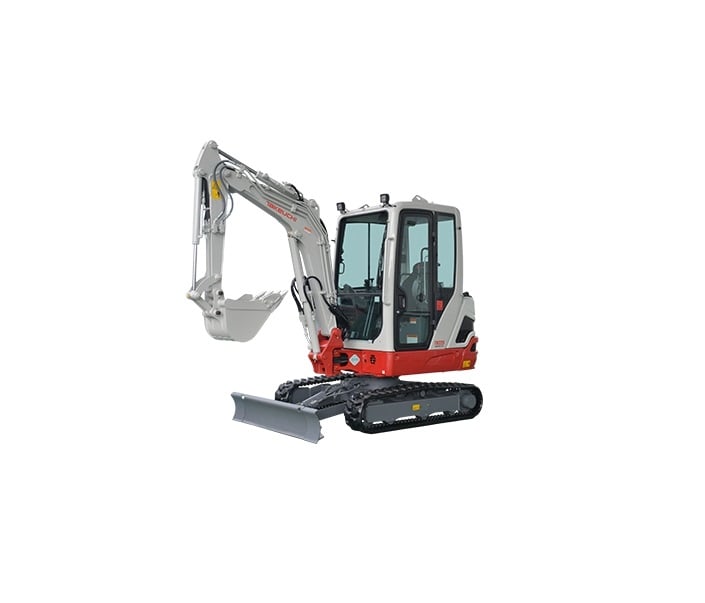

Mini Excavators Takeuchi TB 225

Technical specs - TB 225 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.265 t
Transport length
4.165 m
Transport width
1.5 m
Transport height
2.355 m
Track width
250 mm
Driver protection
FD
Max. Reach horizontal
4.13 m
Dredging depth
2.455 m
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV82A
Engine power
16.5 kW
Displacement
1.33 l
Revolutions at max torque
1320 rpm
Max. torque
85.1 Nm
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 225 FAQ

When was the Takeuchi TB 225 manufactured?

The Takeuchi TB 225 was first produced in 2024.

How much does the Takeuchi TB 225 weigh?

The Takeuchi TB 225 weighs 2.265 tons.

What are the transport dimensions of the Takeuchi TB 225 mini excavator?

The Takeuchi TB 225 has a transport length of 4.165 meters, a transport width of 1.5 meters, and a transport height of 2.355 meters.

What is the track width of the Takeuchi TB 225 mini excavator?

The Takeuchi TB 225 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Takeuchi TB 225 mini excavator?

The Takeuchi TB 225 mini excavator has a dredging depth of 2.455 meters and a maximum horizontal reach of 4.13 meters.

What operator safety and support features does the Takeuchi TB 225 have?

The Takeuchi TB 225 is equipped with a canopy for driver protection.
