TB 225 Takeuchi excavator specs & dimensions (2018 - 2026)

Takeuchi TB 225 is a mini excavator manufactured since 2018. It has a weight of 2.4 tons and a track width of 250 mm. The transpor…

Takeuchi TB 225 is a mini excavator manufactured since 2018. It has a weight of 2.4 tons and a track width of 250 mm. The transport dimensions are 4.18 meters in length, 1.5 meters in width, and 2.43 meters in height. The machine features a tear-out force of 19.3 kN, a dredging depth of 2.58 meters, and a maximum horizontal reach of 2.875 meters. The bucket capacity is 0.064 cubic meters.

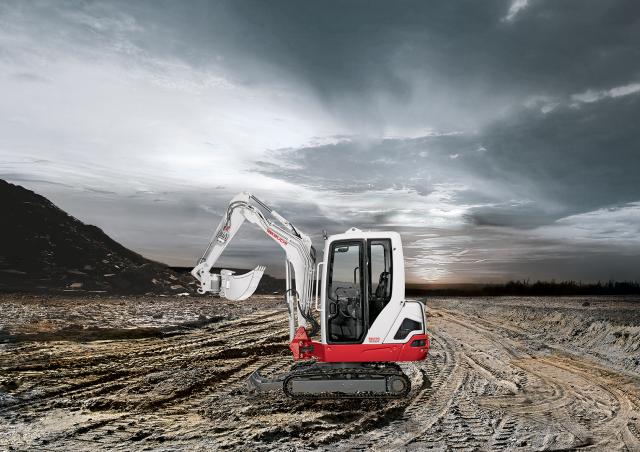

Mini Excavators Takeuchi TB 225
Mini Excavators Takeuchi TB 225
Mini Excavators Takeuchi TB 225
Mini Excavators Takeuchi TB 225

Technical specs - TB 225 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.4 t
Transport length
4.18 m
Transport width
1.5 m
Transport height
2.43 m
Bucket capacity
0.064 m³
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.25 m
Dredging depth
2.58 m
Tear-out force
19.3 kN
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV82A
Engine power
16.5 kW
Displacement
1.33 l
Revolutions at max torque
2200 rpm
Max. torque
84.1 Nm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 225 FAQ

When was the Takeuchi TB 225 manufactured?

The Takeuchi TB 225 was first produced in 2018.

How much does the Takeuchi TB 225 weigh?

The Takeuchi TB 225 weighs 2.4 tons.

What are the transport dimensions of the Takeuchi TB 225 mini excavator?

The Takeuchi TB 225 has a transport length of 4.18 meters, a transport width of 1.5 meters, and a transport height of 2.43 meters.

What is the track width of the Takeuchi TB 225 mini excavator's undercarriage?

The Takeuchi TB 225 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Takeuchi TB 225 mini excavator?

The Takeuchi TB 225 mini excavator has a dredging depth of 2.58 meters and a maximum horizontal reach of 4.25 meters.

What are the power ratings of the Takeuchi TB 225?

The available data does not provide power ratings for the Takeuchi TB 225.

What is the bucket capacity of the Takeuchi TB 225 mini excavator?

The bucket capacity of the Takeuchi TB 225 mini excavator is 0.064 cubic meters.

What driver protection features does the Takeuchi TB 225 have?

The Takeuchi TB 225 has a cabin for driver protection.

How much is a Takeuchi TB 225 Mini excavator (2018u20132025) worth?

The residual value of the Takeuchi TB 225 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Takeuchi TB 225 overview

Environment

policy of continued improvement, specifications and features are subject to change without
- 2019 Takeuchi MFG. Co., Ltd. All rights reserved. According to our established notice. Pictures may show options other than standard equipment.

Dimensions and weight

OPERATING PERFORMANCE
Operating Weight - Cab2400 kg"
Operating Weight - Canopy2265 kg"
Bucket Capacity (Heaped)0.064 m³
Slew Speed9.7 min-1
Travel Speed
1st2.5 km/h
2nd4.2 km/h
Gradeability30°
Ground Pressure - Cab30.4 kPa
Ground Pressure - Canopy28.7 kPa
Maximum Bucket Breakout Force19.3 kN
Maximum Arm Digging Force (1120 mm Arm)"13.8 kN
Maximum Arm Digging Force (1245 mm Arm)"12.8 kN
Traction Force26.7 kN
Boom Swing Angle (Left/Right)75° / 55°
,MACHINE DIMENSIONS,"1,120 mm Arm1,245 mm Arm"
A,Maximum Reach,"4,255 mm4,375 mm"
B,Maximum Reach at Ground Level,"4,130 mm4,250 mm"
C,Maximum Digging Depth,"2,455 mm2,580 mm"
D,Maximum Vertical Digging Depth,"1,980 mm2,100 mm"
E,Maximum Height of Cutting Edge,"3,985 mm4,060 mm"
F,Maximum Dumping Height,"2,800 mm2,875 mm"
G,Front Swing Radius,"1,810 mm1,830 mm"
H,Front Swing Radius with Boom Offset,"1,465 mm1,485 mm"
JSlew Radius1240 mm"
K,Overall Length,"4,165 mm4,180 mm"
LOverall Height (Cab / Canopy)2430 mm / 2355"mm
MUpper Structure Overall Width1100 mm"
NGround Clearance190 mm
OCrawler Base1415 mm"
PCrawler Overall Length1790 mm"
QCrawler Overall Width - Crawler Retracted1100 mm"
Q²Crawler Overall Width - Crawler Extended1500 mm"
RCrawler Shoe Width250 mm

Tables

P1 P2"Variable Displacement Pump
Flow Rate25.3 L/min
Relief Pressure21.0 MPa
P3Gear Pump
Flow Rate13.2 L/min
Relief Pressure19.6 MPa
Service Port 1
Flow Rate38.5 L/min
Hydraulic Pressure21.0 MPa
Service Port 2
Flow Rate13.2 L/min
Hydraulic Pressure19.6 MPa
Service Port 3
Hydraulic Pressure19.6 MPa
Service Port 4
Flow Rate13.2 L/min
Hydraulic Pressure19.6 Mpa
SAFETY and HEALTH
Vibration Levels
Hand / Arm< 2.5 m/s² =
Body< 0.5 m/s² =
Noise Level
Sound Power LevelLWA 93 dB
ENGINE
ModelYanmar / 3TNV82A
Rated Output (ISO 14396)16.5 kW / 2200 min-1"
Maximum Torque84.1 Nm / 1320 min-1"
Displacement1330 ml"
Alternator12 V - 0.48 kW
Battery (IEC 60095-1)12 V - 58.0 A. h
FLUID CAPACITY
Engine Lubrication3.6 L
Cooling System4.3 L
Fuel Tank Capacity30.5 L
Hydraulic Reservoir Capacity26.0 L
Hydraulic System Capacity36.0 L
