TB 219 S Takeuchi excavator specs & dimensions (2008 - 2026)

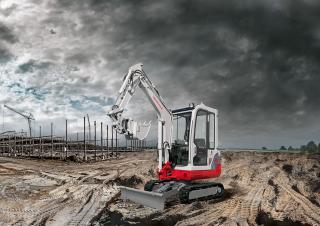

Takeuchi TB 219 S is a mini excavator manufactured since 2008, with a weight of 1.9 tons. It features a track width of 230 mm, a t…

Takeuchi TB 219 S is a mini excavator manufactured since 2008, with a weight of 1.9 tons. It features a track width of 230 mm, a transport width of 0.98 meters, and a transport height of 2.36 meters. The dredging depth is 2.27 meters, and it has a bucket capacity of 0.05 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Takeuchi TB 219 S

Technical specs - TB 219 S Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.9 t
Transport width
0.98 m
Transport height
2.36 m
Bucket capacity
0.05 m³
Track width
230 mm
Driver protection
FD
Dredging depth
2.27 m
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
11.5 kW
Displacement
0.85 l
Revolutions at max torque
2400 rpm

More technical details, like: transport length, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 219 S FAQ

When was the Takeuchi TB 219 S manufactured?

The Takeuchi TB 219 S was first produced in 2008.

How much does the Takeuchi TB 219 S weigh?

The Takeuchi TB 219 S weighs 1.9 tons.

What are the transport dimensions of the Takeuchi TB 219 S mini excavator?

The Takeuchi TB 219 S has a transport width of 0.98 meters and a transport height of 2.36 meters.

What is the track width of the Takeuchi TB 219 S mini excavator?

The Takeuchi TB 219 S mini excavator has a track width of 230 mm.

What is the dredging depth of the Takeuchi TB 219 S mini excavator?

The Takeuchi TB 219 S mini excavator has a dredging depth of 2.27 meters.

What is the bucket capacity of the Takeuchi TB 219 S mini excavator?

The bucket capacity of the Takeuchi TB 219 S mini excavator is 0.05 cubic meters.

What operator safety feature does the Takeuchi TB 219 S have?

The Takeuchi TB 219 S is equipped with a canopy for driver protection.

How much is a Takeuchi TB 219 S Mini excavator (2008u20132025) worth?

The residual value of the Takeuchi TB 219 S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Takeuchi TB 219 S overview

Engine / Driveline and transmission

ENGINE
- Engine Preheating - Extended Life Coolant - Double Element, Air Cleaner (optional) - Automatic Fuel Blood System - High Performance Fuel Filters

Hydraulics

HYDRAULIC
- Variable variable displacement pump - Hydraulic joystick controls - Foot pedal control for service port 1 - Auxiliary hydraulic circuit Plum bed - Hydraulic tank with fluid level to arm sight gauge - Hydraulic selector valve (1-way/2 way) (optional) Independent Mono Boom Swing

- Padded boom cylinders - Boom swing plug (optional) - 1,000 mm arm - 1,125 mm arm (optional) - 1,250 mm arm (optional) - Arms and boom hold valve with lift alarm (optional) - Pattern change valve (ISO or, optional)

Tyres / Tracks

- Triple Flanged Track Rollers - Hydraulically retractable track - Backfill Blade with Pin-On Extensions - 2-Speed Travel - Wraparound Protective Counterweight - 230 mm Rubber Scraper - 230 mm Steel Cracker (optional)

Dimensions and weight

OPERATING PERFORMANCE
Operating Weight - Cab2070 kg"
Operating Weight - Canopy1945 kg"
Bucket Capacity (Heaped)0.046 m³
Slew Speed8.7 min-1
Travel Speed
1st2.4 km/h
2nd4.0 km/h
Gradeability15°
Ground Pressure - Cab33.1 kPa
Ground Pressure - Canopy31.1 kPa
Maximum Bucket Breakout Force16.0 kN
Maximum Arm Digging Force11.4 kN
Traction Force20.7 kN
Boom Swing Angle (Left/Right)80° / 50°
ENGINE
MACHINE DIMENSIONS,"1,000 mm Arm1,125 mm Arm1,250 mm Arm"
A Overall Length,"4,010 mm4,055 mm",4050 mm
B Overall Height (Cab / Canopy),"2,360 mm / 2,290 mm2,360 mm / 2,290 mm2,360 mm / 2,290 mm"
C Upper Structure Overall Width (Cab / Canopy),"1,030 mm / 980 mm1,030 mm / 980 mm1,030 mm / 980 mm"
D Ground Clearance205 mm205 mm205 mm
E Crawler Base,"1,205 mm1,205 mm1,205 mm"
F Crawler Overall Length,"1,570 mm1,570 mm1,570 mm"
G Crawler Overall Width - Crawler Retracted980 mm980 mm980 mm
G’ Crawler Overall Width - Crawler Extended,"1,370 mm1,370 mm1,370 mm"
H Crawler Shoe Width230 mm230 mm230 mm
MACHINE DIMENSIONS,"1,000 mm Arm1,125 mm Arm1,250 mm Arm"
A Maximum Reach,"4,045 mm4,160 mm4,280 mm"
B Maximum Reach at Ground Level,"3,935 mm4,055 mm4,175 mm"
C Maximum Digging Depth,"2,270 mm2,395 mm2,520 mm"
D Maximum Vertical Digging Depth,"1,835 mm1,955 mm2,075 mm"
E Maximum Height of Cutting Edge (Cab / Canopy),"3,770 mm / 3,890 mm3,845 mm / 3,975 mm3,915 mm / 4,055 mm"
F Maximum Dumping Height (Cab / Canopy),"2,710 mm / 2,820 mm2,785 mm / 2,905 mm2,860 mm / 2,985 mm"
G Front Swing Radius (Cab / Canopy),"1,650 mm / 1,520 mm1,655 mm / 1,535 mm1,660 mm / 1,550 mm"
H Front Swing Radius with Boom Offset (Cab / Canopy),"1,320 mm / 1,175 mm1,325 mm / 1,185 mm1,330 mm / 1,195 mm"
J Slew Radius,"1,140 mm1,140 mm1,140 mm"

Other features

ELECTRICAL
- Color Multi-Informational Display - 12 volt system with 40 amp generator - 1 cab front light - 1 working lights on the boom - 2 Canopy Lights - Beacon Socket (Cab Only) - Hour meter - Horn - Travel Alarm (optional)
- ROPS / TOPS / OPG Level 1
- Highback suspension Adjustable canopy/cabin seat (optional) - Cab with heat loss, wiper and washers, Skylight, AM / FM / MP3 Radio - 2 Retractable Seat Belt - OPG Level 1 Front Guard (Cab optional)

Tables

Flow Rate20.0 L/min
Relief Pressure20.6 MPa
P3Gear Pump
Flow Rate11.3 L/min
Relief Pressure18.0 MPa
Service Port 1
Flow Rate40.0 L/min
Hydraulic Pressure20.6 MPa
SAFETY and HEALTH
Vibration Levels
Hand / Arm< 2.5 m/s² =
Body< 0.5 m/s² =
Noise Level
Sound Power LevelLWA 93 dB
