TB 219 Takeuchi excavator specs & dimensions (2024 - 2026)

Weight: 2.07t – Transport length: 4.05m – Transport width: 1.03m – Transport height: 2.36m – Track width: 230mm – Driver protectio…

Weight: 2.07t – Transport length: 4.05m – Transport width: 1.03m – Transport height: 2.36m – Track width: 230mm – Driver protection: Kb

Check out detailed specifications, information and technical data for Takeuchi TB 219 excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 219 digger specifications. See information, like: Weight: 2.07t – Transport length: 4.05m – Transport width: 1.03m – Transport height: 2.36m – Track width: 230mm – Driver protection: Kb and more.

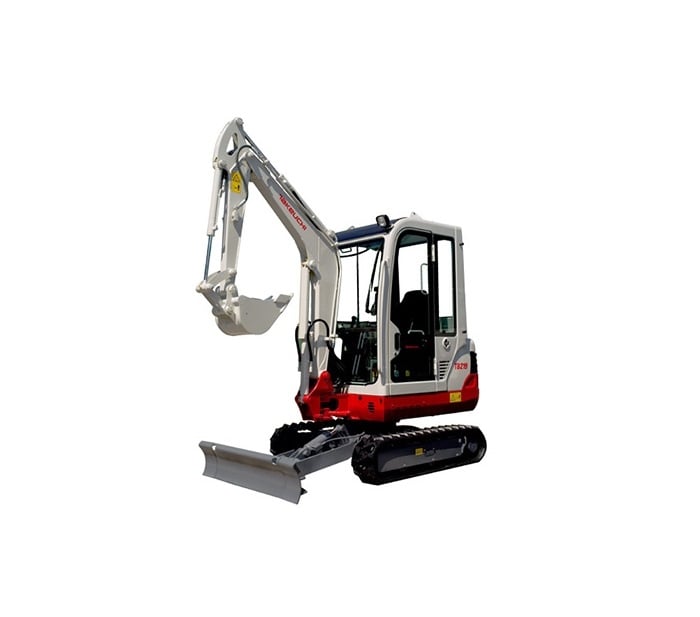

Mini Excavators Takeuchi TB 219

Technical specs - TB 219 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.07 t
Transport length
4.05 m
Transport width
1.03 m
Transport height
2.36 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
4.175 m
Dredging depth
2.52 m
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
12 kW
Displacement
0.854 l
Revolutions at max torque
2500 rpm
Max. torque
52.7 Nm
No. of cylinders
3
Emission level
EU V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 219 FAQ

When was the Takeuchi TB 219 manufactured?

The Takeuchi TB 219 was first produced in 2024.

How much does the Takeuchi TB 219 weigh?

The Takeuchi TB 219 weighs 2.07 tons.

What are the transport dimensions of the Takeuchi TB 219 mini excavator?

The Takeuchi TB 219 has a transport length of 4.05 meters, a transport width of 1.03 meters, and a transport height of 2.36 meters.

What is the track width of the Takeuchi TB 219 mini excavator's undercarriage?

The Takeuchi TB 219 mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the Takeuchi TB 219?

The Takeuchi TB 219 has a dredging depth of 2.52 meters and a maximum horizontal reach of 4.175 meters.

What operator safety features does the Takeuchi TB 219 have?

The Takeuchi TB 219 has a cabin for driver protection.
