TB 217 R Takeuchi excavator specs & dimensions (2021 - 2026)

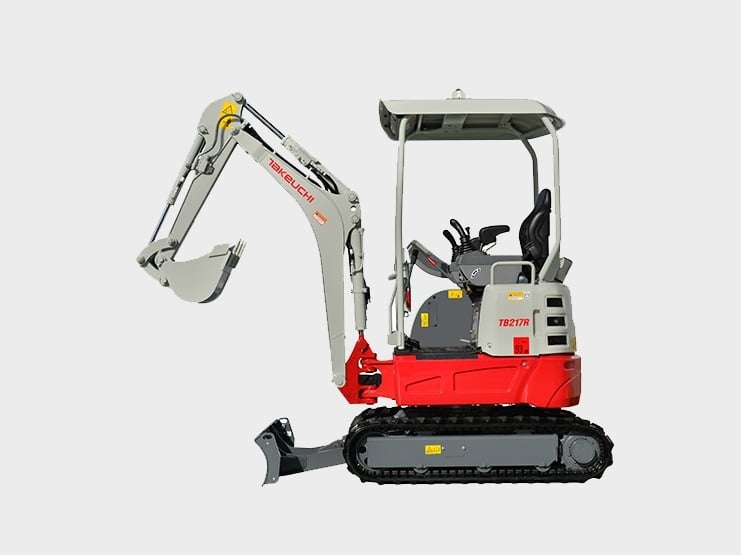

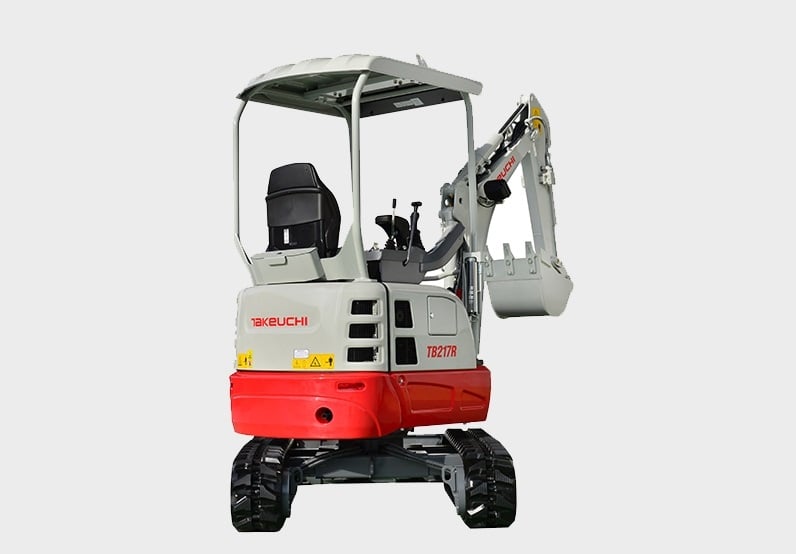

Takeuchi TB 217 R is a mini excavator manufactured since 2021. It has a weight of 1.68 tons and features a track width of 230 mm. …

Takeuchi TB 217 R is a mini excavator manufactured since 2021. It has a weight of 1.68 tons and features a track width of 230 mm. The transport dimensions are 3.46 meters in length, 0.98 meters in width, and 2.345 meters in height. The machine offers a tear-out force of 27 kN, a dredging depth of 2.39 meters, and a maximum horizontal reach of 4 meters. The bucket capacity is 0.038 cubic meters. Special equipment includes a blade and rubber tracks.

TB 217 R

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TB 217 R Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.68 t

Transport length: 3.46 m

Transport width: 0.98 m

Transport height: 2.345 m

Bucket capacity: 0.038 m³

Track width: 230 mm

Max. Reach horizontal: 4 m

Dredging depth: 2.39 m

Tear-out force: 27 kN

Model series: TB

Engine manuf.: Yanmar

Engine type: 3TNV70

Engine power: 11.5 kW

Displacement: 0.854 l

Revolutions at max torque: 1800 rpm

Max. torque: 52.5 Nm

Emission level: V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

TB 217 R Takeuchi Specification for Europe (EN)

Takeuchi TB 217 R FAQ

When was the Takeuchi TB 217 R manufactured?

The Takeuchi TB 217 R was first produced in 2021.

How much does the Takeuchi TB 217 R weigh?

The Takeuchi TB 217 R weighs 1.68 tons.

What are the transport dimensions of the Takeuchi TB 217 R mini excavator?

The Takeuchi TB 217 R has a transport length of 3.46 meters, a transport width of 0.98 meters, and a transport height of 2.35 meters.

What is the track width of the Takeuchi TB 217 R's undercarriage?

The Takeuchi TB 217 R has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the Takeuchi TB 217 R mini excavator?

The Takeuchi TB 217 R has a dredging depth of 2.39 meters and a maximum horizontal reach of 4 meters.

What is the tear-out force of the Takeuchi TB 217 R mini excavator?

The Takeuchi TB 217 R has a tear-out force of 27 kN.

What is the bucket capacity of the Takeuchi TB 217 R mini excavator?

The Takeuchi TB 217 R mini excavator has a bucket capacity of 0.038 cubic meters.

How much is a Takeuchi TB 217 R Mini excavator (2021u20132025) worth?

The residual value of the Takeuchi TB 217 R depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Takeuchi TB 217 R overview

Environment

- 2021 Takeuchi MFG. Co., Ltd. All rights reserved. Pursuant to our established policy of continuous improvement, specifications and features may change without notice. Pictures may show options other than standard equipment.

Tyres / Tracks

Retractable Undercarriage
The TB217R has many features to make any job easier. Standard equipment includes a multi-informatic display, automatic travel shift, pilot operated joystick controls, high capacity cooling system and convenient filter and service access. The retractable undercarriage of the TB217R enables the machine to easily pass through standard door openings and jobsites with limited access. Auxiliary hydraulics and boom pivot are controlled using foot pedals located on the left and right side of the floor. The large back suspension seat as standard provides optimum comfort for the operator. The TB217R is powerful, robust and versatile.

Dimensions and weight

OPERATING PERFORMANCE
Operating Weight	1	680 kg"
Bucket Capacity (Heaped)	0.038 m³
Slew Speed	9.2 min-1
Travel Speed
1st	2.2 km/h
2nd	4.2 km/h
Gradeability	15°
Ground Pressure	27.0 kPa
Maximum Bucket Breakout Force	14.0 kN
Maximum Arm Digging Force (930 mm Arm)	9.5 kN
Maximum Arm Digging Force (1	130 mm Arm)"	8.2 kN
Traction Force	19.4 kN
Boom Swing Angle (Left/Right)	70° / 50°

	MACHINE DIMENSIONS	930 mm Arm	1	130 mm Arm"
A,Maximum Reach,"3,815 mm	4,000 mm"
B,Maximum Reach at Ground Level,"3,760 mm	3,945 mm"
C,Maximum Digging Depth,"2,190 mm	2,390 mm"
D,Maximum Vertical Digging Depth,"1,780 mm	1,970 mm"
E,Maximum Height of Cutting Edge,"3,430 mm	3,570 mm"
F,Maximum Dumping Height,"2,400 mm	2,545 mm"
G,Front Swing Radius,"1,450 mm	1,470 mm"
H,Front Swing Radius with Boom Offset,"1,185 mm	1,210 mm"
J	Slew Radius	730 mm	730 mm
K,Overall Length,"3,460 mm	3,460 mm"
L,Overall Height,"2,345 mm	2,345 mm"
M	Upper Structure Overall Width	980 mm	980 mm
N	Ground Clearance	205 mm	205 mm
O,Crawler Base,"1,205 mm	1,205 mm"
P,Crawler Overall Length,"1,570 mm	1,570 mm"
Q	Crawler Overall Width - Crawler Retracted	980 mm	980 mm
Q’,Crawler Overall Width - Crawler Extended,"1,300 mm	1,300 mm"
R	Crawler Shoe Width	230 mm	230 mm

Tables

HYDRAULIC SYSTEM
P1	P2"	Variable Displacement Pump
Flow Rate	16.8 L/min
Relief Pressure	21.0 MPa
P3	Gear Pump
Flow Rate	10.8 L/min
Relief Pressure	20.0 MPa
Service Port 1
Flow Rate	33.6 L/min
Hydraulic Pressure	21.0 MPa
Service Port 2
Flow Rate	10.8 L/min
Hydraulic Pressure	20.0 MPa
Service Port 3
Hydraulic Pressure	20.0 MPa
SAFETY and HEALTH
Vibration Levels
Hand / Arm	< 2.5 m/s² =
Body	< 0.5 m/s² =
Noise Level
Sound Power Level	LWA 93 dB
