TB 216 Hybrid Takeuchi excavator specs & dimensions (2017 - 2026)

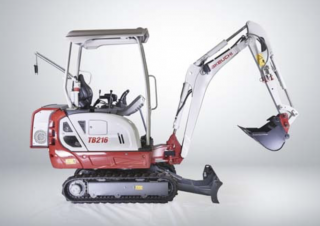

Takeuchi TB 216 Hybrid is a mini excavator manufactured since 2017, with a weight of 1.9 tons. It features a track width of 230 mm…

Takeuchi TB 216 Hybrid is a mini excavator manufactured since 2017, with a weight of 1.9 tons. It features a track width of 230 mm, a transport length of 4.13 meters, a transport width of 0.98 meters, and a transport height of 2.27 meters. The machine has a tear-out force of 14 kN, a dredging depth of 2.39 meters, and a maximum horizontal reach of 4.03 meters. It comes equipped with a blade and rubber tracks.

TB 216 Hybrid

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TB 216 Hybrid Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.9 t

Transport length: 4.13 m

Transport width: 0.98 m

Transport height: 2.27 m

Track width: 230 mm

Max. Reach horizontal: 4.03 m

Dredging depth: 2.39 m

Tear-out force: 14 kN

Model series: TB

Engine manuf.: Yanmar

Engine type: 3TNV70

Engine power: 11.1 kW

Displacement: 0.993 l

Max. torque: 52.7 Nm

No. of cylinders: 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Takeuchi TB 216 Hybrid FAQ

When was the Takeuchi TB 216 Hybrid manufactured?

The Takeuchi TB 216 Hybrid was first produced in 2017.

How much does the Takeuchi TB 216 Hybrid weigh?

The Takeuchi TB 216 Hybrid weighs 1.9 tons.

What are the transport dimensions of the Takeuchi TB 216 Hybrid mini excavator?

The Takeuchi TB 216 Hybrid has a transport length of 4.13 meters, a transport width of 0.98 meters, and a transport height of 2.27 meters.

What is the track width of the Takeuchi TB 216 Hybrid's undercarriage?

The Takeuchi TB 216 Hybrid has a track width of 230 mm on its undercarriage.

What are the excavation performance specifications of the Takeuchi TB 216 Hybrid?

The Takeuchi TB 216 Hybrid has a dredging depth of 2.39 meters and a maximum horizontal reach of 4.03 meters.

What power rating information is available for the Takeuchi TB 216 Hybrid?

There is no power rating information available for the Takeuchi TB 216 Hybrid in the provided data.

How much is a Takeuchi TB 216 Hybrid Mini excavator (2017u20132025) worth?

The residual value of the Takeuchi TB 216 Hybrid depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Takeuchi TB 216 Hybrid overview

Dimensions and weight

OPERATING PERFORMANCE
Operating Weight,"4,277 lb	(1,940 kg)"
,Max. Bucket Breakout Force,"4,250 lb	(1,928 kg)"
	Max. Arm Digging Force	1	843 lb"	(836 kg)
	Arm Length	3 ft 8.5 in	(1	130 mm)"
	Slew Speed	9.2 rpm
,Traction Force,"4,361 lb	(1,978 kg)"
	Ground Pressure	4.3 psi
	Max. Travel Speed
	Low Range	1.4 mph	(2.2 km / hr)
	High Range	2.6 mph	(4.2 km / hr)

	HYDRAULIC
	Total Hydraulic Flow	13.4 gal / min	(50.9 L / min)
	Auxiliary Hydraulic Flow	8.9 gal / min	(33.6 L / min)
	System Operating Pressure	3	046 psi"	(21.0 mpa)

MACHINE DIMENSIONS
A Maximum Reach	13 ft 5.0 in	(4	090 mm)"
B Maximum Dig Height	12 ft 3.2 in	(3	740 mm)"
C Maximum Dump Height	8 ft 10.5 in	(2	705 mm)"
D Maximum Dig Depth	7 ft 10.0 in	(2	390 mm)"
E Maximum Vertical Dig Depth	6 ft 9.1 in	(2	060 mm)"
F Front Swing Radius	4 ft 10.3 in	(1	480 mm)"
G Front Swing Radius (Offset)	3 ft 9.4 in	(1	155 mm)"
H Tail Swing Radius	4 ft 4.6 in	(1	335 mm)"
I Transport Height	7 ft 4.8 in	(2	255 mm)"
J Transport Length	13 ft 6.8 in	(4	135 mm)"
K Undercarriage Length	4 ft 11.9 in	(1	520 mm)"
L Track Width	9.0 in	(230 mm)
M Ground Clearance	8.1 in	(205 mm)
N Track Width Retracted	38.6 in	(980 mm)
O Track Width Extended	51.2 in	(1	300 mm)"

Tables

Model / Make	Yanmar / 3TNV74
Displacement	60.0 cu in (.99 L)
Max. Torque @ 1	800 rpm"	38.2 ft-lb (51.8 Nm)
