TB 216 Takeuchi excavator specs & dimensions (2024 - 2026)

Weight: 1.77t – Transport length: 3.87m – Transport width: 0.985m – Transport height: 2.28m – Track width: 230mm – Driver protecti…

Weight: 1.77t – Transport length: 3.87m – Transport width: 0.985m – Transport height: 2.28m – Track width: 230mm – Driver protection: FD

Check out detailed specifications, information and technical data for Takeuchi TB 216 excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 216 digger specifications. See information, like: Weight: 1.77t – Transport length: 3.87m – Transport width: 0.985m – Transport height: 2.28m – Track width: 230mm – Driver protection: FD and more.

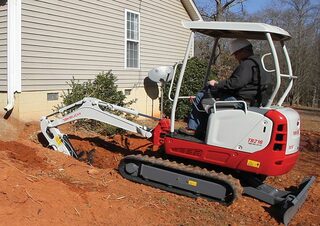

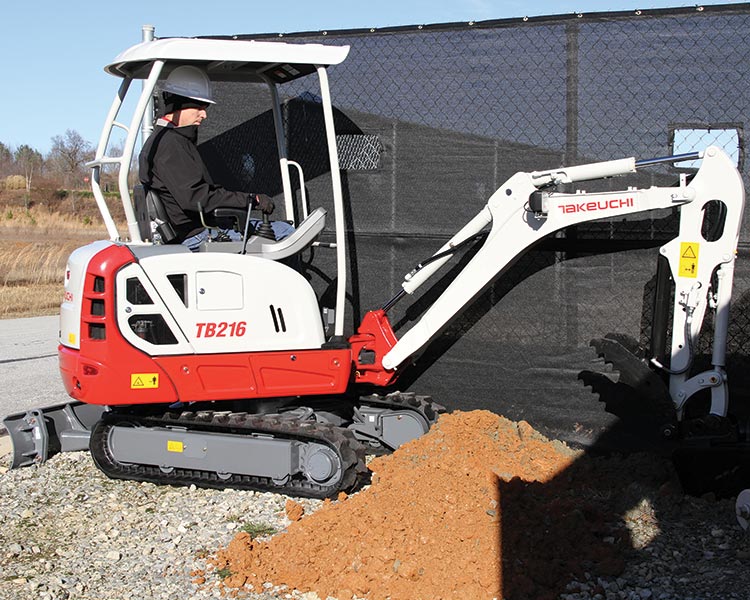

Mini Excavators Takeuchi TB 216
Mini Excavators Takeuchi TB 216
Mini Excavators Takeuchi TB 216
Mini Excavators Takeuchi TB 216
Mini Excavators Takeuchi TB 216
Mini Excavators Takeuchi TB 216

Technical specs - TB 216 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.77 t
Transport length
3.87 m
Transport width
0.985 m
Transport height
2.28 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
4.035 m
Dredging depth
2.39 m
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV74
Engine power
11.2 kW
Displacement
0.993 l
Revolutions at max torque
2400 rpm
Max. torque
51.8 Nm
Emission level
EU V / EPA Tier 4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 216 FAQ

When was the Takeuchi TB 216 manufactured?

The Takeuchi TB 216 was first produced in 2024.

How much does the Takeuchi TB 216 weigh?

The Takeuchi TB 216 weighs 1.77 tons.

What are the transport dimensions of the Takeuchi TB 216 mini excavator?

The Takeuchi TB 216 has a transport length of 3.87 meters, a transport width of 0.985 meters, and a transport height of 2.28 meters.

What is the track width of the Takeuchi TB 216 mini excavator?

The Takeuchi TB 216 mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the Takeuchi TB 216 mini excavator?

The Takeuchi TB 216 mini excavator has a dredging depth of 2.39 meters and a maximum horizontal reach of 4.035 meters.

What operator safety and support features does the Takeuchi TB 216 have?

The Takeuchi TB 216 is equipped with a canopy for driver protection.

How much is a Takeuchi TB 216 Mini excavator (2024u20132025) worth?

The residual value of the Takeuchi TB 216 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
