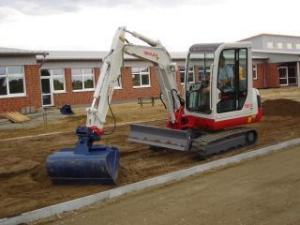

TB 135 Takeuchi excavator specs & dimensions (2005 - 2009)

Takeuchi TB 135 is a mini excavator manufactured from 2005 to 2009, with a weight of 3.43 tons. It features a track width of 350 m…

Takeuchi TB 135 is a mini excavator manufactured from 2005 to 2009, with a weight of 3.43 tons. It features a track width of 350 mm, a transport length of 4.93 meters, a transport width of 1.63 meters, and a transport height of 2.45 meters. The machine has a dredging depth of 3.415 meters and a bucket capacity of 0.06 cubic meters. It is equipped with a blade and rubber tracks.

Mini Excavators Takeuchi TB 135

Technical specs - TB 135 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.43 t
Transport length
4.93 m
Transport width
1.63 m
Transport height
2.45 m
Bucket capacity
0.06 m³
Track width
350 mm
Driver protection
Kb
Max. Reach horizontal
3.8 m
Dredging depth
3.415 m
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
20.7 kW
Displacement
2.642 l

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 135 FAQ

When was the Takeuchi TB 135 manufactured?

The Takeuchi TB 135 was manufactured from 2005 to 2009.

How much does the Takeuchi TB 135 weigh?

The Takeuchi TB 135 weighs 3.43 tons.

What are the transport dimensions of the Takeuchi TB 135 mini excavator?

The Takeuchi TB 135 has a transport length of 4.93 meters, a transport width of 1.63 meters, and a transport height of 2.45 meters.

What is the track width of the Takeuchi TB 135 mini excavator?

The Takeuchi TB 135 mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the Takeuchi TB 135 mini excavator?

The Takeuchi TB 135 mini excavator has a dredging depth of 3.415 meters and a maximum horizontal reach of 3.8 meters.

What is the bucket capacity of the Takeuchi TB 135 mini excavator?

The Takeuchi TB 135 mini excavator has a bucket capacity of 0.06 cubic meters.

What operator safety and support features does the Takeuchi TB 135 have?

The Takeuchi TB 135 provides operator safety with a protective cabin.

How much is a Takeuchi TB 135 Mini excavator (2005u20132009) worth?

The residual value of the Takeuchi TB 135 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Takeuchi TB 135 overview

Takeuchi TB 135 features overview

STANDARD FEATURES
Tiltable TOPS/FOPS cab, electro-hydraulic push buttons control Auxiliary hydraulics, emergency engine shutdown/return to Idle system, Electronic engine monitoring system, cast iron, wrap around Protective counterweight, Steel engine cover, Automatic fuel deflation system, Variable lift variable displacement piston pumps, Safety lock lever for travel and operator controls, Remote rotation greasing system, Dual mode of travel, Two way auxiliary hydraulics plowed to the dipper arm, Double flange track rollers, Spring applied, Hydraulically released disc type Turning and parking brakes, Precise response, proportional main control valves, Simultaneous operation of cabin swings and two digging functions without reduction in speed, Straight travel with simultaneous operation of dig and rocker functions, Cushion Main Boom, Arm & Swing Cylinder, Hydraulic oil cooler, Protective guidance of bucket and arm cylinder hydraulic hoses, Pilot operated joystick checks with arm rest, Stem boom cylinder protection, Low noise level and EPA fully compliant (EPO) Engine retractable Excavator System

Tyres / Tracks

OPTIONS
Boom mounted work lights, Short pitch rubber tracks, 2 year warranty, TKB201 hydraulic breaker, steel rails, Augers, Quickhitch

Dimensions and weight

DIMENSIONS & WEIGHTOPERATING INFORMATION
Operating Weight (kg)3440Max. Dig Depth3415
Length (transport)4945Max. Dump Height3800
Width1630Max. reach at ground level5345
Height2450Max. Vertical Dig Depth2615
Ground Clearance295Max. Bucket Dig Force (Kn)26.5
Min front swing radiusMax. Arm Dig Force (Kn)18.0
(800 boom swing)1470UNDERCARRIAGE
Tail swing radius1400Traction MotorAxial Piston
Dozer Blade (wxh)1630x400Traction DrivePlanetary
ENGINETraction BrakeDisc
Make/ModelYanmar/3TNE88-TBTrack Width350
Rated Output/RPM20.7kW/2300Ground Contact Length1665
Maximum Torque106.9NmGround Pressure (kpa)27.1
Cylinders/Displacement3/1642ccTravel Speed (K/ph)2.7/4.8
Electrical System12volt 40ampMaximum Gradeability300
SWING SYSTEMHYDRAULIC SYSTEM
Boom Swing angle (L/R)800 /600Set Pressure (bar)210
Slew Speed (rpm)9.2Pump TypeVariable(P1+P2)+Gear(P3)
Slew MotorAxial PistonHydraulic Flow (l/min)37.3x2+21.9
Slew BrakeDiscAuxiliary Flow (l/min)59
CAPACITIES (l)
Hydraulic system85
Fuel tank52
Engine Lubrication4.8
Cooling System4.9

Other features

THE HIGH SPE TB135 MINI E
One of Takeuchi's 100 Series mini-excavators weighs the TB135 at 3440kg., offering the operator unparalleled power and comfort on this weight. The TB135 features two speed rides on rubber tracks and a fully equipped tilting cab that allows excellent access and routine maintenance - also included in the cabin is an AM/FM radio and heater. Just look at the list of standard functions and compare them with those of the competition - besides legendary Japanese construction quality means reliability up to zero.
