TB 015 S Takeuchi excavator specs & dimensions (1991 - 1999)

Takeuchi TB 015 S is a mini excavator manufactured from 1991 to 1999, with a weight of 1.45 tons. It features a track width of 230…

Takeuchi TB 015 S is a mini excavator manufactured from 1991 to 1999, with a weight of 1.45 tons. It features a track width of 230 mm and a transport width of 0.96 meters. The bucket capacity is 0.04 cubic meters, and it includes special equipment for track adjustment.

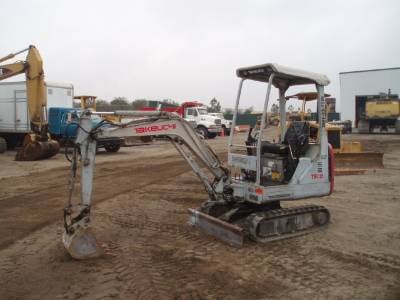

Mini Excavators Takeuchi TB 015 S
Mini Excavators Takeuchi TB 015 S
Mini Excavators Takeuchi TB 015 S
Mini Excavators Takeuchi TB 015 S

Technical specs - TB 015 S Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.45 t
Transport width
0.96 m
Bucket capacity
0.04 m³
Track width
230 mm
Model series
TB
Engine manuf.
Yanmar
Engine type
3TNA72L
Engine power
12 kW
Displacement
0.88 l
Revolutions at max torque
2550 rpm

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, max. torque...

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Takeuchi TB 015 S FAQ

When was the Takeuchi TB 015 S manufactured?

The Takeuchi TB 015 S was manufactured from 1991 to 1999.

How much does the Takeuchi TB 015 S weigh?

The Takeuchi TB 015 S weighs 1.45 tons.

What is the transport width of the Takeuchi TB 015 S mini excavator?

The transport width of the Takeuchi TB 015 S mini excavator is 0.96 meters.

What is the track width of the Takeuchi TB 015 S mini excavator?

The Takeuchi TB 015 S mini excavator has a track width of 230 mm.

What is the bucket capacity of the Takeuchi TB 015 S mini excavator?

The Takeuchi TB 015 S mini excavator has a bucket capacity of 0.04 cubic meters.

How much is a Takeuchi TB 015 S Mini excavator (1991u20131999) worth?

The residual value of the Takeuchi TB 015 S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Machine inspection

Ask for inspection of your Takeuchi TB 015 S from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Mini Excavator Buyers Guide - price ranges of new and used models

At LECTURA we watch data since 40 years and based on this knowledge, we can support you with pricing lists of used mini excavators, such as Takeuchi TB 015 S.

Check what new and used models of mini excavators you can get in each price range:

Data provided by Lectura logo

Compare Takeuchi TB 015 S with similar Mini Excavators

Takeuchi TB 015 S

Takeuchi TB 015 S

Weight:
1.45 t
Transport width:
0.96 m
Bucket capacity:
0.04 m³
Track width:
230 mm
JCB 801

JCB 801

Weight:
1.43 t
Transport width:
0.98 m
Track width:
230 mm
Bobcat X 220

Bobcat X 220

Weight:
1.5 t
Transport width:
0.98 m
Bucket capacity:
0.077 m³
Track width:
250 mm
