REX30 RHINO excavator specs & dimensions (2017 - 2026)

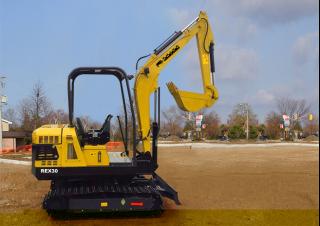

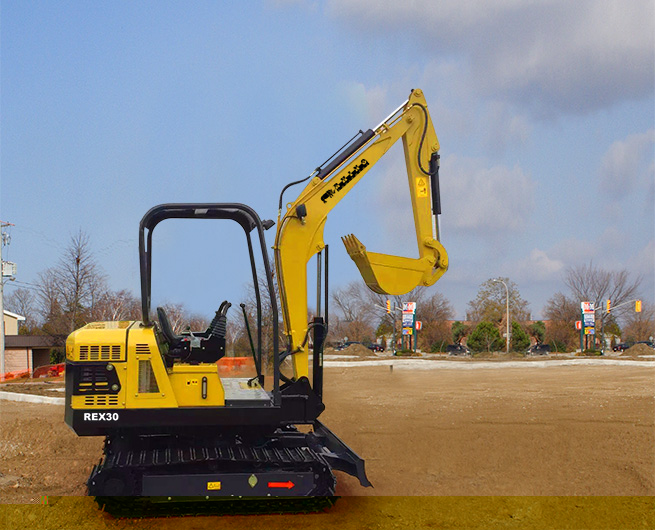

RHINO REX30 is a Mini Excavator manufactured since 2017, with a weight of 3 tons. It features a track width of 280 mm, a transport…

RHINO REX30 is a Mini Excavator manufactured since 2017, with a weight of 3 tons. It features a track width of 280 mm, a transport length of 4.5 meters, a transport width of 1.48 meters, and a transport height of 2.25 meters. The machine has a tear-out force of 18 kN, a dredging depth of 2.99 meters, and a maximum horizontal reach of 4.56 meters. The bucket capacity is 0.1 cubic meters, and it comes equipped with a blade and rubber tracks.

Mini Excavators RHINO REX30

Technical specs - REX30 RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3 t
Transport length
4.5 m
Transport width
1.48 m
Transport height
2.25 m
Bucket capacity
0.1 m³
Track width
280 mm
Driver protection
FD
Max. Reach horizontal
4.56 m
Dredging depth
2.99 m
Tear-out force
18 kN
Model series
REX

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

RHINO REX30 FAQ

When was the RHINO REX30 manufactured?

The RHINO REX30 was first produced in 2017.

How much does the RHINO REX30 weigh?

The RHINO REX30 weighs 3 tons.

What are the transport dimensions of the RHINO REX30 mini excavator?

The RHINO REX30 has transport dimensions of 4.5 meters in length, 1.48 meters in width, and 2.25 meters in height.

What is the track width of the RHINO REX30 mini excavator?

The RHINO REX30 mini excavator has a track width of 280 mm.

What are the excavation performance specifications of the RHINO REX30 mini excavator?

The RHINO REX30 mini excavator has a dredging depth of 2.99 meters and a maximum horizontal reach of 4.56 meters.

What is the tear-out force of the RHINO REX30 mini excavator?

The RHINO REX30 mini excavator has a tear-out force of 18 kN.

What is the bucket capacity of the RHINO REX30 mini excavator?

The RHINO REX30 mini excavator has a bucket capacity of 0.1 cubic meters.

What operator safety and support features does the RHINO REX30 have?

The RHINO REX30 is equipped with a canopy for driver protection.

How much is a RHINO REX30 Mini excavator (2017u20132025) worth?

The residual value of the RHINO REX30 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

RHINO REX30 overview

Hydraulics

OPTIONEN Rhino Excavators can come with various options such as: Tier2, Tier3, Tier4 Engine, Close cab, Rock bucket, Trench bucket, thumb cutter and more depending on work requirements. ATTACHMENTS Rhino Excavators are standard with the hydraulic line for attachments.Rhino Hydraulic Hammer Match: 254SK Many Options Buckets Hydraulic Hammers Trencher Augers u.v.m.

Dimensions and weight

DIMENSIONS
A. Total Length mm (ft)4500 (14.8)"
B. Total Height mm (ft)2250 (7.4)"
C. Overall width mm (ft)1480 (4.9)"
D. Track width mm (in)280 (0.9)
E. Platform radius of turn mm (ft)1350 (4.4)"
F. Track Length mm (ft)1800 (5.9)"
G. Tread mm (ft)1400 (4.6)"
H. Height above ground mm (ft)238 (0.8)
I. End total Height of boom mm (ft)1600 (5.2)"
J. Wide Platform outside mm (ft)1160 (3.8)"
K. Hood Height mm (ft)1280 (4.2)"
L. Platform height above ground mm (in)515 (20.3)
OPERATING RANGE
A. Maximum digging height mm (ft)4350 (14.2)"
B. Maximum unloading height mm (ft)2850 (9.3)"
C. Maximum digging depth mm (ft)2990 (9.9)"
D. Maximum reach mm (ft)4900 (16.1)"
D1. Maximum digging reach at ground level mm (ft)4560 (15)"
E. Maximum digging height radius mm (ft)3050 (10)"
F. Minimum turning radius mm (ft)2100 (6.9)"
G. Maximum depth of the bucket dozer mm (ft)290 (1.0)
H. Maximum lift height dozer mm (ft)270 (0.9)
WEIGHT
Operating Weight kgs (lb)3000 (6.614)"

Tables

Engine (optional)Rhino (Yanmar)
Engine power kw (hp)24 (33)
Emissions (optional)Tier 2 (Tier 3 Tier 4)"
Rated engine speed rpm2200"
Bucket capacity m3 (cu.Yd)0.1 (0.14)
Hydraulic system presure Mpa (psi)18 (2611)"
Dosing pumps L/min (gpm)56 (15)
Maximum digging force kN (lb)18 (4047)"
Gradeability30º
Ground pressure Kpa (psi)32 (4.6)
Walking speed km/h (mph)2.7 (1.7)
Maximum traction kN (lb)20 (4497)"
