6003 Neuson excavator specs & dimensions (2004 - 2008)

Neuson 6003 is a Mini Excavator manufactured from 2004 to 2008. It has a weight of 5.5 tons and a track width of 400 mm. The trans…

Neuson 6003 is a Mini Excavator manufactured from 2004 to 2008. It has a weight of 5.5 tons and a track width of 400 mm. The transport dimensions are 5.8 meters in length, 1.99 meters in width, and 2.57 meters in height. The dredging depth is 3.845 meters, and the bucket capacity is 0.13 cubic meters. Special equipment includes a blade and rubber track.

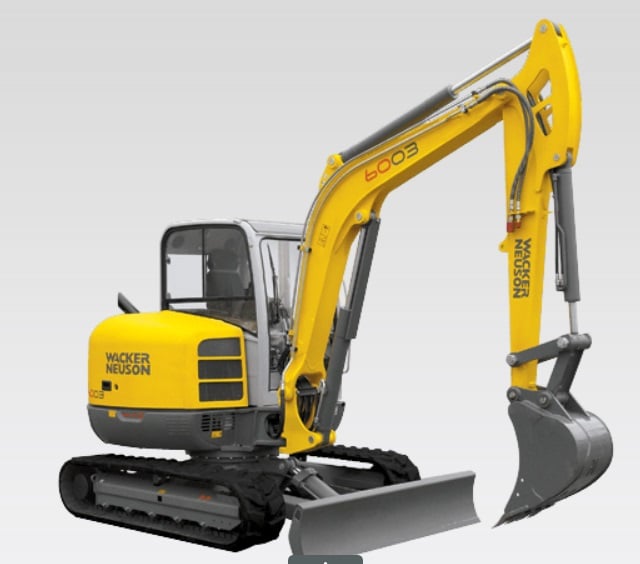

Mini Excavators Neuson 6003
Mini Excavators Neuson 6003
Mini Excavators Neuson 6003
Mini Excavators Neuson 6003

Technical specs - 6003 Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.5 t
Transport length
5.8 m
Transport width
1.99 m
Transport height
2.57 m
Bucket capacity
0.13 m³
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.66 m
Dredging depth
3.845 m
Tear-out force
28.1 kN
Engine manuf.
Yanmar
Engine type
4TNV98VNS
Engine power
51.1 kW
Displacement
3.318 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Neuson 6003 FAQ

When was the Neuson 6003 manufactured?

The Neuson 6003 was manufactured from 2004 to 2008.

How much does the Neuson 6003 weigh?

The Neuson 6003 weighs 5.5 tons.

What are the transport dimensions of the Neuson 6003 mini excavator?

The Neuson 6003 has a transport length of 5.8 meters, a transport width of 1.99 meters, and a transport height of 2.57 meters.

What is the track width of the Neuson 6003 mini excavator's undercarriage?

The Neuson 6003 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Neuson 6003 mini excavator?

The Neuson 6003 mini excavator has a dredging depth of 3.845 meters and a maximum horizontal reach of 5.66 meters.

What is the tear-out force of the Neuson 6003?

The Neuson 6003 has a tear-out force of 28.1 kN.

What is the bucket capacity of the Neuson 6003 mini excavator?

The Neuson 6003 mini excavator has a bucket capacity of 0.13 cubic meters.

What is the driver protection feature of the Neuson 6003?

The Neuson 6003 has driver protection in the form of a cabin.

How much is a Neuson 6003 Mini excavator (2004u20132008) worth?

The residual value of the Neuson 6003 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
