9057FZTS Liugong excavator specs & dimensions (2023 - 2026)

Weight: 5.7t – Transport length: 5.65m – Transport width: 1.96m – Transport height: 2.57m – Bucket capacity: 0.16m³ – Track width:…

Weight: 5.7t – Transport length: 5.65m – Transport width: 1.96m – Transport height: 2.57m – Bucket capacity: 0.16m³ – Track width: 400mm

Check out detailed specifications, information and technical data for Liugong 9057FZTS excavator manufactured between 2023 - 2026. Get more in-depth insight with Liugong 9057FZTS digger specifications. See information, like: Weight: 5.7t – Transport length: 5.65m – Transport width: 1.96m – Transport height: 2.57m – Bucket capacity: 0.16m³ – Track width: 400mm and more.

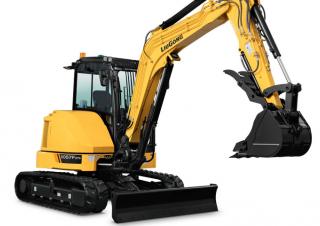

Mini Excavators Liugong 9057FZTS

Visit Liugong live at

Technical specs - 9057FZTS Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.7 t
Transport length
5.65 m
Transport width
1.96 m
Transport height
2.57 m
Bucket capacity
0.16 m³
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.04 m
Dredging depth
3.6 m
Model series
F
Engine manuf.
Yanmar
Engine type
4TNV86CT-PLY
Engine power
35.5 kW
Displacement
2.09 l
Revolutions at max torque
1560 rpm
Max. torque
176.6 Nm
No. of cylinders
4
Cylinder bore x stroke
86x90 mm
Emission level
EPA Tier 4 Final/Stage V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
