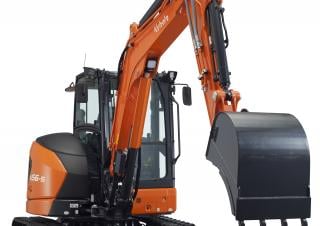

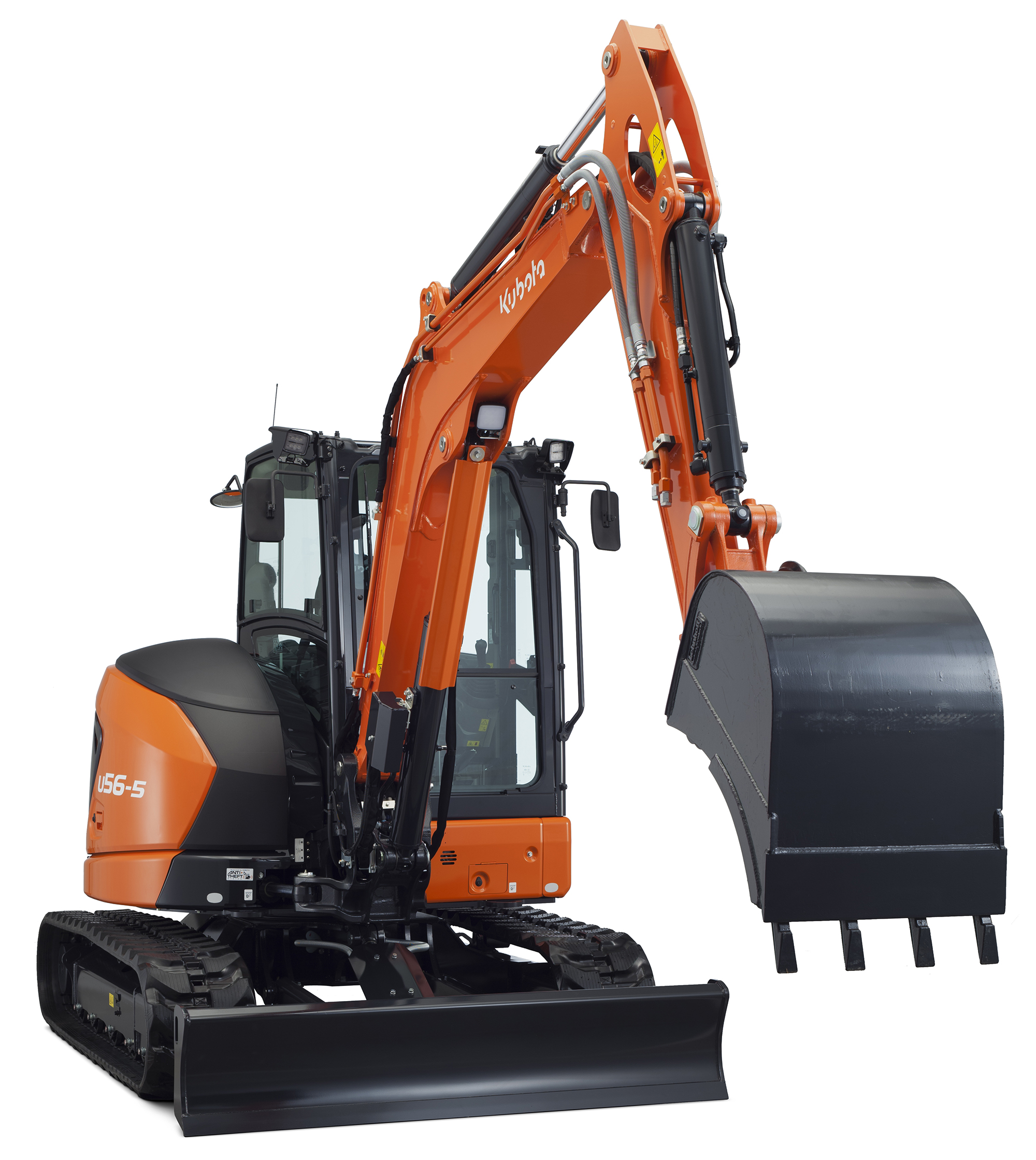

U56-5 Kubota excavator specs & dimensions (2020 - 2026)

Kubota U56-5 is a mini excavator manufactured since 2020. It has a weight of 5.52 tons and a track width of 400 mm. The transport …

Kubota U56-5 is a mini excavator manufactured since 2020. It has a weight of 5.52 tons and a track width of 400 mm. The transport dimensions are 5.49 meters in length, 1.96 meters in width, and 2.55 meters in height. The machine features a tear-out force of 42.3 kN, a dredging depth of 3.83 meters, and a maximum horizontal reach of 6.105 meters. The bucket width is 0.6 meters with a capacity of 0.14 cubic meters. Special equipment includes a blade and rubber tracks.

U56-5

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - U56-5 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.52 t

Transport length: 5.49 m

Transport width: 1.96 m

Transport height: 2.55 m

Bucket capacity: 0.14 m³

Bucket width: 0.6 m

Track width: 400 mm

Driver protection: KbR

Max. Reach horizontal: 6.105 m

Dredging depth: 3.83 m

Tear-out force: 42.3 kN

Model series: U

Engine manuf.: Kubota

Engine type: V2607-CR-E5

Engine power: 35 kW

Displacement: 0.2615 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

Cylinder bore x stroke: 87x110 mm

Emission level: V

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Kubota U56-5 FAQ

When was the Kubota U56-5 manufactured?

The Kubota U56-5 was first produced in 2020.

How much does the Kubota U56-5 weigh?

The Kubota U56-5 weighs 5.52 tons.

What are the transport dimensions of the Kubota U56-5 mini excavator?

The Kubota U56-5 has a transport length of 5.49 meters, a transport width of 1.96 meters, and a transport height of 2.55 meters.

What is the track width of the Kubota U56-5 mini excavator's undercarriage?

The Kubota U56-5 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Kubota U56-5 mini excavator?

The Kubota U56-5 mini excavator has a dredging depth of 3.83 meters and a maximum horizontal reach of 6.105 meters.

What is the tear-out force of the Kubota U56-5 mini excavator?

The Kubota U56-5 mini excavator has a tear-out force of 42.3 kN.

What are the specifications of the primary work tool on the Kubota U56-5 mini excavator?

The Kubota U56-5 mini excavator has a bucket with a capacity of 0.14 cubic meters and a width of 0.6 meters.

What operator safety and support features does the Kubota U56-5 have?

The Kubota U56-5 is equipped with a cabin that includes ROPS for driver protection.

How much is a Kubota U56-5 Mini excavator (2020u20132025) worth?

The residual value of the Kubota U56-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kubota U56-5 overview

Environment

LO W NOI S E
The world-class noise reduction helps protect the operator's ears and gives the operator a more stress free working environment.

Tyres / Tracks

REAR-VIEW CAMERA (OPTION) 1
An optional rearview camera improves visibility by displaying the view on the 7 LCD screen in the cab.

Dimensions and weight

Model	U50-5	U56-5	KX060-5
Operating weight*1 kg	4965	5595	5635
Bucket capacity	std. CECE m3"	0.13	0.14	0.14
Bucket width (without teeth) mm	550	600	600
Engine
Manufacturer		KUBOTA	KUBOTA	KUBOTA
Model		D1803-CR-T-E5	V2607-CR-E5	V2607-CR-E5
Type,,"Water cooled, diesel engine	Water cooled, diesel engine	Water cooled, diesel engine"
Output (ISO 14396:2002)	kW/rpm	29.7 / 2200	35.0 / 2200	35.0 / 2200
	PS/rpm	40.4 / 2200	47.6 / 2200	47.6 / 2200
Number of cylinder		3	4	4
Bore × Stroke	mm	87 × 102	87 × 110	87 × 110
Displacement	cc	1826	2615	2615
Overall length	mm	5355	5490	5520
Overall height	mm	2550	2550	2550
Swivelling speed	rpm	9.2	9.2	9.2
Rubber shoe width	mm	400	400	400
Tumbler distance	mm	1990	1990	1990
Dozer size (width × height)	mm	1960 × 410	1960 × 410	1960 × 410
Hydraulic pumps
P1	P2"		Variable displacement pump	Variable displacement pump	Variable displacement pump
Flow rate	/min	118.8	56.1 + 56.1	56.1 + 56.1
Hydraulic pressure	MPa	24.5	27.4	27.4
P3		–	Gear type	Gear type
Flow rate	/min	–	37	37
Hydraulic pressure	MPa	–	19.1	19.1
Max. digging force (arm / bucket)	kN	22.6 / 32.8	26.4 / 42.3	24.5 / 42.3
Boom swing angle	deg	70 / 55	70 / 53	70 / 53
Auxiliary circuit (SP1)
Flow rate	e /min	65	75	75
Hydraulic pressure	MPa	20.6	20.6	20.6
Auxiliary circuit (SP2)
Flow rate	e /min	37	37	37
Hydraulic pressure	MPa	20.6	20.6	20.6
Hydraulic reservoir (tank / full)	e	40 / 67	41.9 / 77	41.9 / 77
Fuel tank capacity	l	66	66	73
Max. travelling speed (low / high)	km/h	2.8 / 4.8	2.8 / 4.8	2.8 / 4.8
Ground contact pressure	kPa (kgf/cm2 )	28.0 (0.286)	31.6 (0.322)	31.8 (0.324)
Ground clearance	mm	310	310	310
Noise level
LpA / LwA (2000/14/EC)	dB (A)	74 / 96	74 / 96	74 / 96
Vibration*2
Hand arm system (ISO 5349-2:2001)
Digging / Levelling	m/s2 RMS	<2.5 / <2.5	<2.5 / <2.5	<2.5 / <2.5
Driving / Idling	m/s2 RMS	<2.5 / <2.5	<2.5 / <2.5	<2.5 / <2.5
Whole body (ISO 2631-1:1997)
Digging / Levelling	m/s2 RMS	<0.5 / <0.5	<0.5 / <0.5	<0.5 / <0.5
Driving / Idling	m/s2 RMS	<0.5 / <0.5	<0.5 / <0.5	<0.5 / <0.5

Other features

D OU BLE ADJ US TABLE AIR SUSPENSI ON S EAT
As part of the new design, the cab is now equipped with a seat fitted with a slide that can be double adjusted to improve comfort. The joystick consoles on the left and right side of the seat can also be customized to individual operator requirements regardless of the seat. An ISO compliant air suspension seat for the standard-installed model L.

Tables

Model	U50-5	U56-5	KX060-5
Type	S	M	L	S	M	L	S	M L
Air conditionning	–	–	•	–	–	•	–	• –
Air suspention seat	–	–	•	–	–	•	–	• R1300 –
AUX SP1 / SP2 735	• / –	• / •	• / •	• / –	• / •	• / •	• / –	• / • • / •
Electronic third line 550	–	–	–	–	•	•	–	• •
Refuelling pump	–	–	–	–	–	–	–	• •

Model	U50-5	U56-5	KX060-5
Safety system
Engine start safety system on the left console	•	•	•
Travel motor with disc brake	•	•	•
Swivel motor with disc brake	•	•	•
Overload warning buzzer	•	•	•
Kubota original anti-theft system	•	•	•
Anti-drop valve on the boom (ISO8643)	•	•	•
Anti-drop valve on the arm (ISO8643)	•	•	•
Bracket and harness for beacon light	•	•	•
Working equipment
Auxiliary hydraulic circuits (SP1 and SP2*2 ) piping to the arm end	•	•	•
2 LED working lights on cabin and 1 LED light on the boom	•	•	•
1820 mm arm			•
1635 mm arm		•
1450 mm arm	•
Cabin
ROPS (Roll-over Protective Structure	ISO3471)"	•	•	•
OPG (Operator Protective Guard) Level1	•	•	•
Double adjustable air suspension seat	Type L	Type L	Type L
Double adjustable full suspension seat	Type S & M	Type S & M	Type S & M
Retractable orange seatbelt with alert function	•	•	•
Hydraulic pilot control levers with wrist rests	•	•	•
Travel levers with foot pedals	•	•	•
Air conditioning	Type L	Type L	Type L
Cabin heater for defrosting and demisting	•	•	•
Emergency exit hammer	•	•	•
Front window power-assisted with gas damper	•	•	•
12V power source	•	•	•
2 speakers and radio aerial	•	•	•
Location for radio	•	•	•
Side/Rear mirrors (left	right and rear)"	•	•	•
Cup holder	•	•	•
Engine/Fuel system
Double-element air filter	•	•	•
Engine electric fuel pump	•	•	•
Auto idling system	•	•	•
Tank electric refuelling pump			R1010 / R1065 Type M & L
Water separator with drain cock 1960 810	•	•	• 1855 1960

Model	U50-5	U56-5	KX060-5
Working equipment / Undercarriage
1570 mm arm			Type L
400 mm steel track (+ 100 kg)	•	•	•
550 mm steel track (+ 300 kg)		•	•
Safety system
Anti-drop valve unit (dozer)	•	•	•
Travel alarm	•	•	•
Others
Rear-view camera*1	•	•	•
Special paint upon request	•	•	•

Model	U50-5	U56-5	KX060-5
Undercarriage
400 mm rubber track	•	•	•
1 x upper track roller	•	•	•
5 double-flange track rollers on each track		•	•
4 double-flange track rollers on each track	•
2-speed travel switch on dozer lever	•	•	•
Hydraulic system
Two-speed travel with auto-shift	•	•	•
Dozer blade with float function	•	•	•
Pressure accumulator	•	•	•
Hydraulic pressure checking ports	•	•	•
Straight travel circuit	•	•	•
Third line hydraulic return	•	•	•
Electronically controlled third line hydraulic return		Type M & L	Type M & L
Load-sensing hydraulic system	•	•	•
Adjustable maximum oil flow on auxiliary circuits (SP1 and SP2 *2 )	•	•	•
Auxiliary switch (SP1) on right control lever	•	•	•
Auxiliary switch (SP2) on left control lever	Type M & L	Type M & L Type M & L
