U30-6S Kubota excavator specs & dimensions (2023 - 2026)

Weight: 3.12t – Transport length: 4.53m – Transport width: 1.55m – Transport height: 2.455m – Bucket capacity: 0.1m³ – Bucket capa…

Weight: 3.12t – Transport length: 4.53m – Transport width: 1.55m – Transport height: 2.455m – Bucket capacity: 0.1m³ – Bucket capacity min.: 0.1m³

Check out detailed specifications, information and technical data for Kubota U30-6S excavator manufactured between 2023 - 2026. Get more in-depth insight with Kubota U30-6S digger specifications. See information, like: Weight: 3.12t – Transport length: 4.53m – Transport width: 1.55m – Transport height: 2.455m – Bucket capacity: 0.1m³ – Bucket capacity min.: 0.1m³ and more.

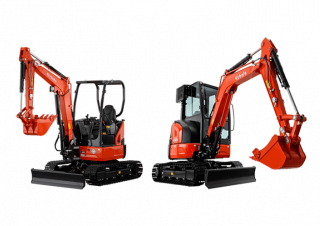

Mini Excavators Kubota U30-6S

Technical specs - U30-6S Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.12 t
Transport length
4.53 m
Transport width
1.55 m
Transport height
2.455 m
Bucket capacity
0.1 m³
Bucket capacity min.
0.1 m³
Bucket width
0.57 m
Track width
300 mm
Max. Reach horizontal
4.905 m
Dredging depth
2.805 m
Tear-out force
30 kN
Model series
U
Engine manuf.
Kubota
Engine type
D1703-M-E3-BH-11
Engine power
20.5 kW
Displacement
1.647 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity max., standard tyres, driver protection, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota U30-6S FAQ

When was the Kubota U30-6S manufactured?

The Kubota U30-6S was first produced in 2023.

How much does the Kubota U30-6S weigh?

The Kubota U30-6S weighs 3.12 tons.

What are the transport dimensions of the Kubota U30-6S mini excavator?

The Kubota U30-6S has a transport length of 4.53 meters, a transport width of 1.55 meters, and a transport height of 2.46 meters.

What is the track width of the Kubota U30-6S mini excavator?

The Kubota U30-6S mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Kubota U30-6S mini excavator?

The Kubota U30-6S has a dredging depth of 2.805 meters and a maximum horizontal reach of 4.905 meters.

What is the tear-out force of the Kubota U30-6S mini excavator?

The Kubota U30-6S mini excavator has a tear-out force of 30 kN.

What are the bucket specifications of the Kubota U30-6S mini excavator?

The Kubota U30-6S has a bucket capacity of 0.1 cubic meters, a minimum bucket capacity of 0.1 cubic meters, and a bucket width of 0.57 meters.

How much is a Kubota U30-6S Mini excavator (2023u20132025) worth?

The residual value of the Kubota U30-6S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
