RX506E Kubota excavator specs & dimensions (2022 - 2026)

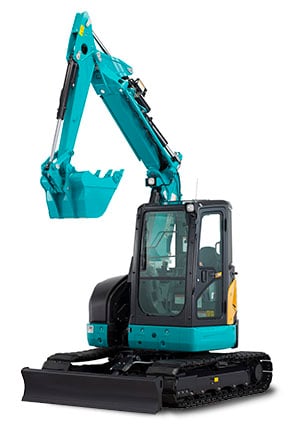

Kubota RX506E is a mini excavator manufactured since 2022, with a weight of 5.4 tons. It has a transport length of 5.17 meters, a …

Kubota RX506E is a mini excavator manufactured since 2022, with a weight of 5.4 tons. It has a transport length of 5.17 meters, a transport width of 2 meters, and a transport height of 2.54 meters. The machine features a tear-out force of 36.5 kN, a dredging depth of 4.07 meters, and a maximum horizontal reach of 5.73 meters. The bucket width is 0.63 meters, and the bucket capacity is 0.21 cubic meters.

Mini Excavators Kubota RX506E

Technical specs - RX506E Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.4 t
Transport length
5.17 m
Transport width
2 m
Transport height
2.54 m
Bucket capacity
0.21 m³
Bucket width
0.63 m
Max. Reach horizontal
5.73 m
Dredging depth
4.07 m
Tear-out force
36.5 kN
Model series
RX
Engine manuf.
Kubota
Engine type
D1803-CR-T-YDM
Engine power
30.1 kW
Displacement
1.83 l

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota RX506E FAQ

When was the Kubota RX506E manufactured?

The Kubota RX506E was first produced in 2022.

How much does the Kubota RX506E weigh?

The Kubota RX506E weighs 5.4 tons.

What are the transport dimensions of the Kubota RX506E mini excavator?

The Kubota RX506E has a transport length of 5.17 meters, a transport width of 2 meters, and a transport height of 2.54 meters.

What is the excavation performance of the Kubota RX506E?

The Kubota RX506E has a dredging depth of 4.07 meters and a maximum horizontal reach of 5.73 meters.

What is the tear-out force of the Kubota RX506E mini excavator?

The Kubota RX506E mini excavator has a tear-out force of 36.5 kN.

What are the specifications of the primary work tool bucket on the Kubota RX506E?

The Kubota RX506E's primary work tool bucket has a capacity of 0.21 cubic meters and a width of 0.63 meters.
