PC20-5 Komatsu excavator specs & dimensions (1988 - 1995)

Komatsu PC20-5 is a mini excavator manufactured from 1988 to 1995. It has a weight of 2.75 tons and a track width of 300 mm. The t…

Komatsu PC20-5 is a mini excavator manufactured from 1988 to 1995. It has a weight of 2.75 tons and a track width of 300 mm. The transport dimensions are 4.485 meters in length, 1.52 meters in width, and 1.325 meters in height. The tear-out force is 20.1 kN, and the bucket capacity is 0.1 cubic meters. It is equipped with a rubber track.

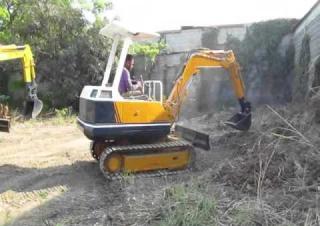

Mini Excavators Komatsu PC20-5

Visit Komatsu live at

Technical specs - PC20-5 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.75 t
Transport length
4.485 m
Transport width
1.52 m
Transport height
1.325 m
Bucket capacity
0.1 m³
Track width
300 mm
Driver protection
KbR
Tear-out force
20.1 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
3D84-1F
Engine power
18.4 kW
Displacement
1.413 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC20-5 FAQ

When was the Komatsu PC20-5 manufactured?

The Komatsu PC20-5 was manufactured from 1988 to 1995.

How much does the Komatsu PC20-5 weigh?

The Komatsu PC20-5 weighs 2.75 tons.

What are the transport dimensions of the Komatsu PC20-5 mini excavator?

The Komatsu PC20-5 has a transport length of 4.49 meters, a transport width of 1.52 meters, and a transport height of 1.33 meters.

What is the track width of the Komatsu PC20-5 mini excavator?

The Komatsu PC20-5 mini excavator has a track width of 300 mm.

What is the tear-out force of the Komatsu PC20-5 mini excavator?

The Komatsu PC20-5 mini excavator has a tear-out force of 20.1 kN.

What is the bucket capacity of the Komatsu PC20-5 mini excavator?

The Komatsu PC20-5 mini excavator has a bucket capacity of 0.1 cubic meters.

What operator safety and support features does the Komatsu PC20-5 have?

The Komatsu PC20-5 is equipped with a cabin that includes ROPS for driver protection.

How much is a Komatsu PC20-5 Mini excavator (1988u20131995) worth?

The residual value of the Komatsu PC20-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Komatsu PC20-5 overview

Komatsu PC20-5 features overview

The Komatzu 3D84-1 F 4 wheel, water cooled, top valve Diesel diesel engine.3 cylinder 3.3 cylinders,34 mm (3-3-3.1") bore x 85 mm (3 3.31") Bore (85 mm (3 - 3.33)") hole x 85 mm (3:35) Stroke to 3D84-1 F 4-wheel, water coolized, upper valve Valve Diesel diesel diesel oil engine.3 cylinder....3 cylinder.13mm (3) mm (3-3.3.31") Borations Comatezu 3D84-1 F4 Wheel, water cooled, high valve Hydraulic ball ball ball bearing are incorporated into the series of shearing class type Ball ball ball ball bearings can be found in a single load with an Inlet guinee Reflif valve setting lmplement circuits Travel circles Swing circuis Control valves 2-Spull, 3 spool and 4 swing pogel controlsVen The hydraulic cylinders Cyl inder Bucket Boom offset Nu m Beers 80 mm (3.1") 80 mm (3.1 cm 80 mm ( 3.1) 70 mm (2.8"1 70 mm 2.8 "1 70 mm (2.8" 1 90 mm-2.81 90 mm (3.5) Steering/driving controls are activated with hand levers. Sliding both levers move forward or f moving towards the front. By reversing them back-to-back respectively once a lever is drawn into neutral and the other one to pull forward allows one machine to turn away from each other; can be turned on turns: One Wend while pulling down the other backward ahead of the rearward travel below the riser being tightened by Pulling up against the engager The other recoiler has been pulled off after another turning backwards forward onto the other side for more than any other Front Abrade push over time before it's 5th step further 2rd wheel drive continues at all times during

Tables

Type of shoesGround pressure kg/cm2 (PSI/kPa)
400 mm (15.7"") double-grouser shoes"0.23 (3.27/23)
400 mm (15.7"") swamp shoes"0.23 (3.27/23)
250 mm ( 9.8"") flat shoes"0.36 (5.12/35)
300 mm (11.8"") rubber pad shoes"0.90 (12.8/88)
Capacity : m3 (cu.yd)
Heaped (struck x 2)0.05 (0.07)0.07 (0.09)0.12 (0.13)0.13 (0.17)
JIS CECE heaped"0.028 (0.04)0.043 (0.06)0.07 (0.09)0.08 (0.10)
SAE PCSA heaped"0.03 (0.04)0.05 (0.07)0.07 (0.09)0.10 (0.13)
Struck0.025 (0.03)0.037 (0.05)0.06 (0.07)0.07 (0.09)
Bucket width : mm (in) without side cutters250 (9.8)350 (13.8)450 (17.7)600 (23.6)
with side cutters270 (11"")"370 (14.6)480 (18.9)620 (23.6)
No. of bucket teeth3345
Bucket typeNarrow bucketStd. bucketLight-duty bucket
Arm lengthwith 1150 mm (3'9"") arm"
AMax. digging height4.15 m (13'7"")"
BMax. dumping height2.85 m ( 9'4"")"
CMax. digging depth2.70 m ( 8'10"")"
DMax. vertical wall digging depth1.90 m ( 6'3"")"
EMax. digging reach at ground level4.51 m (14'10"")"
Bucket digging force2050 kg (4520 lb/20.1 kN)"
