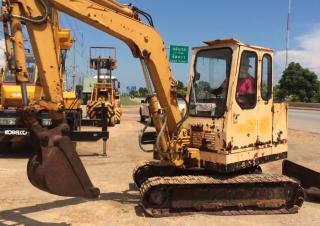

PC40-1 Komatsu excavator specs & dimensions (1981 - 1984)

Komatsu PC40-1 is a mini excavator manufactured from 1981 to 1984. It has a weight of 4.335 tons and a track width of 400 mm. The …

Komatsu PC40-1 is a mini excavator manufactured from 1981 to 1984. It has a weight of 4.335 tons and a track width of 400 mm. The transport dimensions are 5.255 meters in length, 1.75 meters in width, and 2.395 meters in height. The tear-out force is 26.6 kN, and it features a bucket capacity of 0.14 cubic meters. This model is equipped with a rubber track.

Mini Excavators Komatsu PC40-1

Visit Komatsu live at

Technical specs - PC40-1 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.335 t
Transport length
5.255 m
Transport width
1.75 m
Transport height
2.395 m
Bucket capacity
0.14 m³
Track width
400 mm
Driver protection
Kb
Tear-out force
26.6 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
3D94-2A
Engine power
26 kW
Displacement
2.21 l
Revolutions at max torque
2250 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC40-1 FAQ

When was the Komatsu PC40-1 manufactured?

The Komatsu PC40-1 was manufactured from 1981 to 1984.

How much does the Komatsu PC40-1 weigh?

The Komatsu PC40-1 weighs 4.34 tons.

What are the transport dimensions of the Komatsu PC40-1 mini excavator?

The Komatsu PC40-1 has a transport length of 5.26 meters, a transport width of 1.75 meters, and a transport height of 2.4 meters.

What is the track width of the Komatsu PC40-1 mini excavator?

The Komatsu PC40-1 mini excavator has a track width of 400 mm.

What is the tear-out force of the Komatsu PC40-1 mini excavator?

The Komatsu PC40-1 mini excavator has a tear-out force of 26.6 kN.

What is the bucket capacity of the Komatsu PC40-1 mini excavator?

The bucket capacity of the Komatsu PC40-1 mini excavator is 0.14 cubic meters.

What operator safety feature does the Komatsu PC40-1 have?

The Komatsu PC40-1 has a driver protection cabin.

How much is a Komatsu PC40-1 Mini excavator (1981u20131984) worth?

The residual value of the Komatsu PC40-1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
