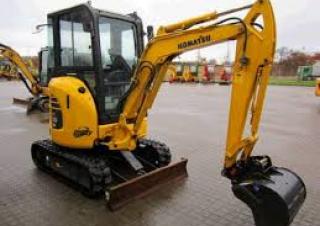

PC20 Komatsu excavator specs & dimensions (1995 - 1996)

Komatsu PC20 is a mini excavator manufactured from 1995 to 1996. It has a weight of 3 tons and a track width of 300 mm. The transp…

Komatsu PC20 is a mini excavator manufactured from 1995 to 1996. It has a weight of 3 tons and a track width of 300 mm. The transport dimensions are 4.7 meters in length, 1.4 meters in width, and 2.39 meters in height. The dredging depth is 2.6 meters, and the maximum horizontal reach is 4.66 meters. The bucket width is 0.45 meters with a capacity of 0.075 cubic meters. This model includes a blade as special equipment.

Mini Excavators Komatsu PC20

Visit Komatsu live at

Technical specs - PC20 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3 t
Transport length
4.7 m
Transport width
1.4 m
Transport height
2.39 m
Bucket capacity
0.075 m³
Bucket width
0.450 m
Track width
300 mm
Max. Reach horizontal
4.66 m
Dredging depth
2.6 m

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, tear-out force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, tear-out force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC20 FAQ

When was the Komatsu PC20 manufactured?

The Komatsu PC20 was manufactured from 1995 to 1996.

How much does the Komatsu PC20 weigh?

The Komatsu PC20 weighs 3 tons.

What are the transport dimensions of the Komatsu PC20 mini excavator?

The Komatsu PC20 has a transport length of 4.7 meters, a transport width of 1.4 meters, and a transport height of 2.39 meters.

What is the track width of the Komatsu PC20 mini excavator?

The Komatsu PC20 mini excavator has a track width of 300 mm.

What is the excavation performance of the Komatsu PC20 mini excavator?

The Komatsu PC20 mini excavator has a dredging depth of 2.6 meters and a maximum horizontal reach of 4.66 meters.

What are the bucket specifications of the Komatsu PC20 mini excavator?

The Komatsu PC20 mini excavator has a bucket capacity of 0.075 cubic meters and a bucket width of 0.45 meters.

How much is a Komatsu PC20 Mini excavator (1995u20131996) worth?

The residual value of the Komatsu PC20 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Komatsu PC20 overview

Komatsu PC20 features overview

Mxim n pen: SxGearp (36 hp) 19, 5 kw 2626 h at 2500, P., 19.5.KW27 27 ps/cv) Ot 2500, P., T9. 2 kW 26 Hpi st 25500, P. 4, P. 2. 2 kmw 26, 8 kw (36 hp) 19.5 kw (46 hp)19. 5 kw (26/26.5 HP) on 2500, P., T9. 2 kW 26 MPi st 2500, P 500, P.4, P. 4, P.2, 2 kmw 26.6 kw (2kmwh). 8 kw (36 hp) 11,5 kw (46 hp)19. 5 kw (256/26th 5 hp) on 2500, P., 21st 19.2 x Axial piston moloors I x Orbitsl molor noise level sound force level Sound power level No-power level Soundproofing Power Level noise pressure levels Lpa 80 db, The voles inside outside the Coh snnd out of the coh snd exterior of the coh are according to the direc Live-EC Live-EC S6/661662. Lwao2 Lwaway 96 Db, 20.6.6 l,llpa (206 l,llpa (206 l,llpa (206 l,llpa (206 bs bobor) 20.6 MPa (206MPa (206 bsr) 30.6-206 Bsr (206 bsr(206 bsr) 15.12 lt[Ipa (152 lt[ima (152 hr152 hahar) RE]II11ING tullele trete / i 11A.11ING tuil tin sld lol tontok stol Tonk radiator Hydroul from hydraulic motor Hydraulic engine Motor Moio re ri oal hydroulk boom R: fry : fi cb, 20 th; frie with two: cold oilic defier and 30 flb, 10 mined in accordance as perdiec Single-ball bearing ring w i lh inside, induction hsrdened looling. 0.06 m3

Tables

Arm lenghtA4 m3 m2 m
B
1160 mm2 m*450* 400*450340* 600*580* 920* 585
1 mC*490320*520330* 750560* 960* 690
0*480300*490320* 790550* 990840
-1 m*475310*500330770560* 930900
1460 mm0C*450275*500300* 700530* 900820
Arm lengthmm
11601460
CABCANOPYCABCANOPY
A Digging heightmm4430465046504880
B Dumping heightmm3220333534503600
C Digging depthmm2650265029502950
D Vertical digging depthmm2085208523602360
E Maximum outreachmm4790479050705070
F Outreach at ground levelmm4665466549504950
G Swing radiusmm1765145018701705
G' Swing radius
with boom swungmm11501150
L Total lengthmm47504750
H Heightmm14101410
Bucket digging force daN (ISO 6015)(kg)2280 (2326)2280 (2326)
Arm breakout force (ISO 6015) daN(kg)1470(1500)1270 (1296)
Arm lenghtA B4 m3 m2 m
1160 mm21410* 400350340650*580* 900* 585
1 m340320*400330690560* 950* 690
0C* 390300*390320* 700550* 980840
-1 m400310*400330710560* 910900
1460 mm0C320275*350300* 650530* 850820
