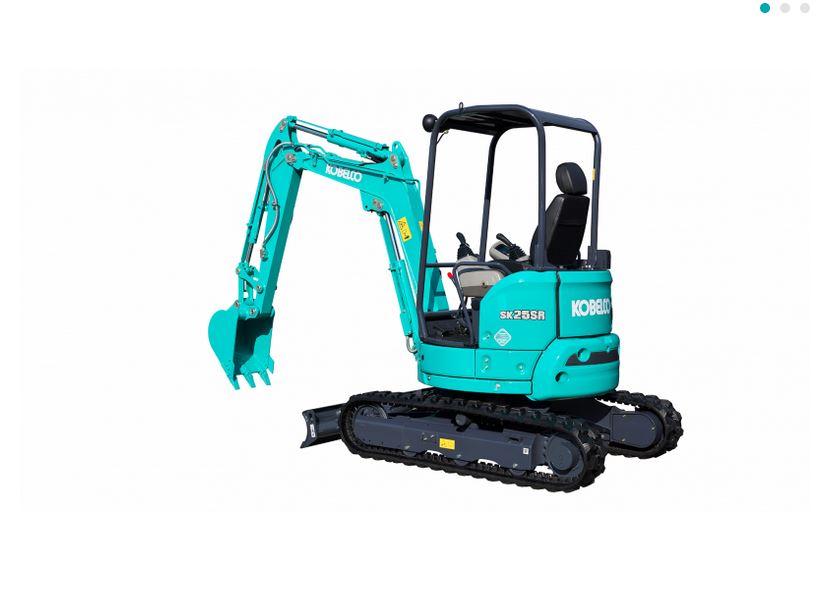

SK 25 SR 6E Kobelco excavator specs & dimensions (2018 - 2024)

Kobelco SK 25 SR 6E is a mini excavator manufactured since 2018. It has a weight of 2.67 tons and a track width of 250 mm. The tra…

Kobelco SK 25 SR 6E is a mini excavator manufactured since 2018. It has a weight of 2.67 tons and a track width of 250 mm. The transport dimensions are 4.11 meters in length, 1.5 meters in width, and 2.53 meters in height. The machine features a tear-out force of 14.4 kN, a dredging depth of 2.74 meters, and a maximum horizontal reach of 4.7 meters. The bucket capacity is 0.06 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Kobelco SK 25 SR 6E

Visit Kobelco live at

Technical specs - SK 25 SR 6E Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.67 t
Transport length
4.11 m
Transport width
1.5 m
Transport height
2.53 m
Bucket capacity
0.08 m³
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.7 m
Dredging depth
2.74 m
Tear-out force
14.4 kN
Model series
SK
Engine manuf.
Yanmar
Engine type
3TNV76-NBVA3
Engine power
15.2 kW
Displacement
1.115 l
Revolutions at max torque
1800 rpm
Max. torque
66.2 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 25 SR 6E FAQ

When was the Kobelco SK 25 SR 6E manufactured?

The Kobelco SK 25 SR 6E was first produced in 2018.

How much does the Kobelco SK 25 SR 6E weigh?

The Kobelco SK 25 SR 6E weighs 2.67 tons.

What are the transport dimensions of the Kobelco SK 25 SR 6E mini excavator?

The Kobelco SK 25 SR 6E has a transport length of 4.11 meters, a transport width of 1.5 meters, and a transport height of 2.53 meters.

What is the track width of the Kobelco SK 25 SR 6E mini excavator?

The Kobelco SK 25 SR 6E mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Kobelco SK 25 SR 6E mini excavator?

The Kobelco SK 25 SR 6E has a dredging depth of 2.74 meters and a maximum horizontal reach of 4.7 meters.

What are the power ratings of the Kobelco SK 25 SR 6E mini excavator?

The source data does not provide any power ratings for the Kobelco SK 25 SR 6E mini excavator.

What is the bucket capacity of the Kobelco SK 25 SR 6E mini excavator?

The Kobelco SK 25 SR 6E mini excavator has a bucket capacity of 0.08 cubic meters.

What operator safety and support features does the Kobelco SK 25 SR 6E have?

The Kobelco SK 25 SR 6E provides operator safety with a cabin for driver protection.

How much is a Kobelco SK 25 SR 6E Mini excavator (2018u20132025) worth?

The residual value of the Kobelco SK 25 SR 6E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kobelco SK 25 SR 6E overview

Kobelco SK 25 SR 6E features overview

Backlit Liquid Crystal Monitor
The backlit liquid crystal monitor is provided standard. Operating information as well as the full range of machine status information can be easily checked. Warning indicators LED lamp temperature Normal display Main menu Machine operation management Menu switch Function keys Maintenance Operation Language setting Function Key guidance

Engine / Driveline and transmission

Reliable Swing Power, Faster Working Speed
Increased swing force and a world-class oscillating speed deliver shorter cycle times.
Auto Deceleration (Option)
If the operating levers have been in neutral for more than 4 seconds, the engine automatically drops back to idle, which lowers noise, emissions and fuel consumption.

Hydraulics

For more efficient work performance.
Max arm displacement force: 14. 7 kn Max bucket digging force: 24. 5 kn

Dimensions and weight

Unit: mm
MODELSK25SR
a-Max. digging reach4520"
b-Max. digging reach at ground level4400"
c-Max. digging depth2540"
d-Max. digging height4170"
e-Max. dumping clearance2780"
f-Min. dumping clearance950
g-Max. vertical wall digging depth2240"
h-Min. swing radius1950"
Min. swing radius at boom swing1650"
i-Dozer blade (height/depth)340/355
GENERAL
MODELSK25SR
TypeSK25SR-6E
PERFORMANCE
Shoe TypeRubberSteel
Bucket Capacitym30.08
Travel Speed (high/low)km/h4.5/2.8
Swing Speedmin-1 {rpm}10.0
Gradeability% (degree)47(30)
Traction ForcekN24.426.7
Bucket Digging ForcekN24.524.5
Arm Crowding ForcekN14.714.7
WEIGHT
Machine Mass Cab,kg,"2,6702,780"
Canopy,kg,"2,5652,675"
Ground Pressure CabkPa30.932.0
CanopykPa29.730.9

Tables

PumpTwo variable displacement pumps + two gear pumps
Max. Discharge FlowL/min2 x 30.0 21.3 11.3"
Relief Valve SettingMPa2 x 20.6 18.1 2.9"
Hydraulic Oil Tank (system)L25 (39)
DOZER BLADE
Width x Heightmm1500 x 295"
Working Ranges (height/depth)mm340/355
SIDE DIGGING MECHANISM
TypeBoom swing
Offset AngleTo the leftdegree47
To the rightdegree74
ENGINE
ModelYanmar 3TNV76-NBVA1
TypeWater cooled 4-cycle 3-cylinder"
Power Output NET(ISO9249)kW/min-1 {rpm}15.2/2500"
Max. Torque NET(ISO9249)N·m/min-1 {rpm}66.2/1800"
DisplacementL1.115
Fuel TankL30.5
HYDRAULIC SYSTEM
RS52KS:tekcuB tuohtiW rebbuR :eohS 052 mm
BA2.0 m2.5 m3.0 mAt. Max. reachRadius
3.0 mkg*450*530*520*530*5203.02 m
2.5 mkg*470*500*490*5203903.39 m
2.0 mkg*550*550*530*5204003403.62 m
1.0 mkg1000"7907005705204303503003.81 m
G. L.kg8707106205104804203603003.67 m
-1.0 mkg8406906105004703904403703.13 m
-1.5 mkg890700*6505105804902.61 m
