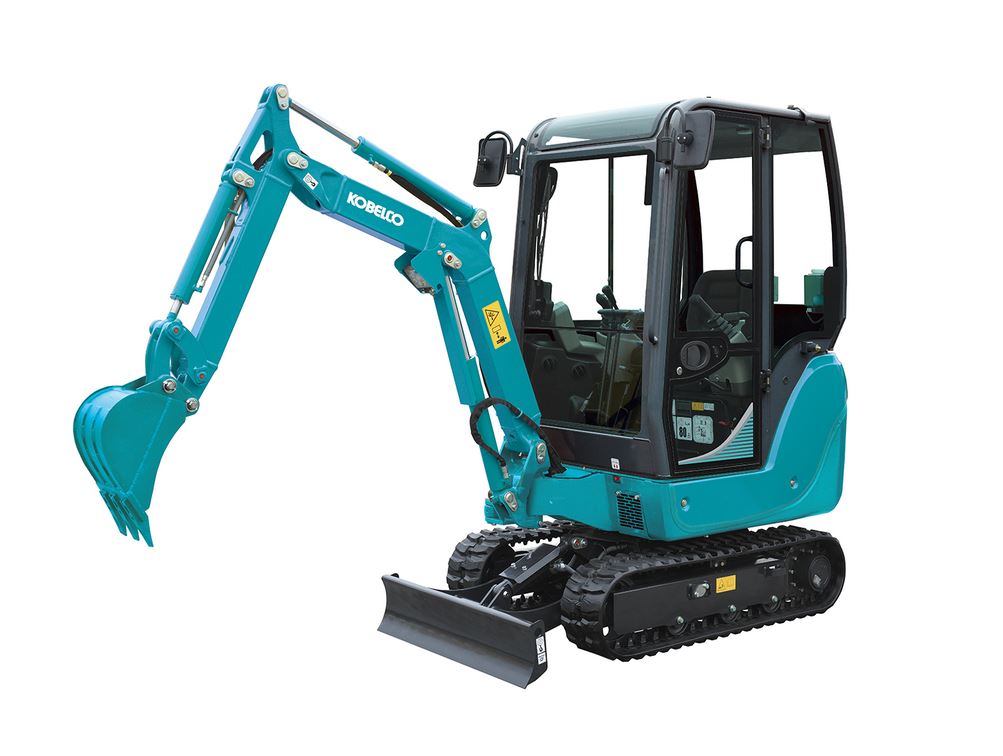

SK 16 Kobelco excavator specs & dimensions (2015 - 2017)

Backlit Liquid Crystal Monitor
The backlit liquid crystal monitor is provided as standard. Perfectly integrated into the right-hand console, the screen provides excellent visibility even in bright sunlight or at night and allows easy access to information about operation and machine status. Warning indicators LED lamp water temperature indicator Normal display Main menu Machine operator management Menu switch Function keys Maintenance Machine Operation Language setting function key guidance Mini excavators are increasingly popular for working on confined spaces such as residential areas and buildings. But trifle alone does not satisfy users who also demand more stability and first-class operating performance. These requirements meet the KOBELCO SK16 mini excavator with a high output engine providing plenty of power for tough, efficient operation. In addition, it delivers excellent stability through superior weight distribution, well designed, comfortable cab with LCD monitor plus simple maintenance. These features make the SK16 mini excavator ideal for those who want powerful, basic functions and lasting reliability. If you need to engage fully using a compact machine, the SK16 is your answer.
Compact Swing Radius
The SK16 has a very small swing radius, providing easy access and efficient operation in places where space is limited. Compact design maintains power, productivity and stability that allow you to work with confidence.
Exceptional Stability and Lifting Strength
A wide counterweight and excellent weight distribution provide the SK16 with impressive stability and exceptional lift capaziMinimum front swing radius: 1,480/1.520mm with boom oscillation: 1,290/1,320mm Lift capacity: 465kg at 2.0m (ground level) Final pivot radius:
Compactness and Versatility
With its compact design, the SK16 delivers fast work performance even in limited space.

Auxiliary Circuit for Hammer or Auger
A proportional control auxiliary line accommodates many accessories such as a hammer or a snail, with the amount of oil optimized for each implement.
Reliable Swing Power, Faster Working Speed
Increased swing force and a world-class oscillating speed provide shorter cycle times. Swing Speed:
Powerful Engine (ISO 9249) Power output: 12. 1kw/2,600min-1 Easy Transportability
With a weight of only 1,655 kg, the SK16 is easily transported on a 2.7-ton trailer with plenty of space for simultaneous transport of a bucket or other attachments. with long arm End overhang: Overall machine width: with long arm

Comfortable Slide Seat
There is plenty of legroom, and the control lever, wrist rests, travel lever and operator panel are ergonomically arranged allowing the operator to work for long hours without fatigue. The sliding seat can be adjusted to suit the size and body posture of the operator.
Wrist Rest
The wrist rests on the respective control lever box provide fatigue-free operation.
Amenities
Control panel Travel up/low selector switch and throttle lever Automatic ceiling light and optional radio with USB port Storage compartment for operator manuals Large cup

Cylinder Rod Guard
The tough durability of the SK16 makes it ideal for working in tight spaces, keeping repair costs low. Cylinder stick guard is fitted as standard for boom cylinders.
LED Work Light
The LED working light is mounted ed u nder the e boom to protect it from damage. Dozer cylinder rod protection protects dozer cylinders from damage.
