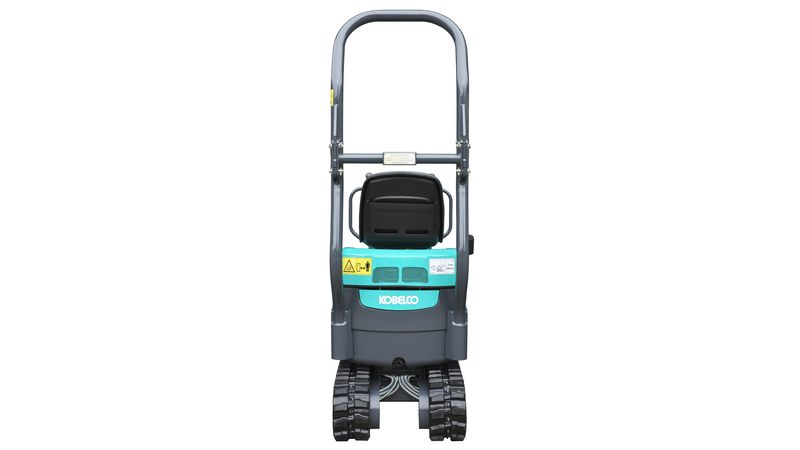

SK 08 Kobelco excavator specs & dimensions (2017 - 2018)

Kobelco SK 08 is a mini excavator manufactured from 2017 to 2018. It has a weight of 1.03 tons and a track width of 180 mm. The tr…

Kobelco SK 08 is a mini excavator manufactured from 2017 to 2018. It has a weight of 1.03 tons and a track width of 180 mm. The transport dimensions are 2.81 meters in length, 0.84 meters in width, and 1.55 meters in height. The dredging depth is 1.5 meters, and the maximum horizontal reach is 2.8 meters. The bucket width is 0.35 meters, with a minimum bucket capacity of 0.028 cubic meters.

Visit Kobelco live at

SK 08

Years of manufacture: 2017—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - SK 08 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.03 t

Transport length: 2.81 m

Transport width: 0.84 m

Transport height: 1.55 m

Bucket capacity min.: 0.028 m³

Bucket width: 0.35 m

Track width: 180 mm

Driver protection: Ü

Max. Reach horizontal: 2.8 m

Dredging depth: 1.5 m

Engine manuf.: Yanmar

Engine type: 2TE67L

Engine power: 7.7 kW

Displacement: 0.507 l

Max. torque: 31.5 Nm

More technical details, like: bucket capacity, bucket capacity max., standard tyres, tear-out force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Kobelco SK 08 FAQ

When was the Kobelco SK 08 manufactured?

The Kobelco SK 08 was manufactured from 2017 to 2018.

How much does the Kobelco SK 08 weigh?

The Kobelco SK 08 weighs 1.03 tons.

What are the transport dimensions of the Kobelco SK 08 mini excavator?

The Kobelco SK 08 has a transport length of 2.81 meters, a transport width of 0.84 meters, and a transport height of 1.55 meters.

What is the track width of the Kobelco SK 08 mini excavator's undercarriage?

The Kobelco SK 08 mini excavator has a track width of 180 mm on its undercarriage.

What are the excavation performance specifications of the Kobelco SK 08 mini excavator?

The Kobelco SK 08 mini excavator has a dredging depth of 1.5 meters and a maximum horizontal reach of 2.8 meters.

What are the bucket specifications of the Kobelco SK 08 mini excavator?

The Kobelco SK 08 mini excavator has a minimum bucket capacity of 0.03 cubic meters and a bucket width of 0.35 meters.

What operator safety and support features does the Kobelco SK 08 have?

The Kobelco SK 08 is equipped with a roll-over bar for driver protection.

How much is a Kobelco SK 08 Mini excavator (2017u20132018) worth?

The residual value of the Kobelco SK 08 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kobelco SK 08 overview

Kobelco SK 08 features overview

The super mini SK08 – a new dependable rising star in the 0.8 ton class
The most important factor that influences the value of a machine in the 0.8-ton class is its working capability in tight spaces. The Kobelco SK08 can enter and work efficiently in even narrower passages than ever before. This new supercompact excavator is a reliable partner for jobs in residential areas with many space restrictions.
Maximum 310 mm outside-crawler digging width
A boom swing type is used, providing a maximum digging width of 310 mm outside the left crawler (crawler retractors) when the boom is pivoted 85 degrees to the right.
Sixty-eight centimeters crawler width – the smallest in its class
The slim 730mm wide upper structure allows this machine to enter narrow passages with retracted crawlers.

Engine / Driveline and transmission

10. 0 kn powerful bucket digging force
The 7 kw high performance engine delivers 10,0 kn {1,015 kgf} digging force in the top level of class.
Ample legroom for the operator's seat
The floor offers an open foot space, which is significantly large for varying comfort. Retracted: 680 mm Extended: 840 mm Dirt and Debris Easy-to-see warning lights. Full opening hood for large access room. Corrosion resistant aluminum radiator. Fuel tank indicator indicating fuel level at a glance. Easy-to-control hydraulic oil tank gauge. Fuel filter allowing easy water drainage. durable hydraulic oil with 1,000 hours replacement cycle (photo shows the hydraulic oil port).

Dimensions and weight

Gradeability	% (degree)	58 (30)	Unnamed: 0	Unnamed: 1	Unnamed: 2	Unnamed: 3	Unnamed: 4	Unnamed: 5
Drawbar Pulling Force	kN	9.8
Bucket Digging Force	kN	10.0
Arm Crowding Force	kN	5.9		d
WEIGHT				e
Machine Mass	kg	1	035"
Ground Pressure	kPa	27.9
					f
Shoe Type		Rubber
ENGINE								i
Model		YANMAR 2TE67L-BV3
Type		Vertical type	water cooled	2-cylinder diesel engine	4 cycle"
Power Output NET (ISO 9249)	kW/min-1 (rpm)	7.7/2	400"		c g
Max. Torque NET (ISO 9249) N•m/min-1 (rpm)		31.5/2	000"
Displacement	L	0.507
Fuel Tank	L	9.7
HYDRAULIC SYSTEM
Pump		2 Gear pump						Unit: mm
Max. Discharge Flow	L/min	9.8×2	MODEL				SK08
Relief Valve Setting	MPa	18.1	a- Max. digging reach				2	830"
Hydraulic Oil Tank (system)	L	5.7 (10.7)	b- Max. digging reach at ground level				2	730"
DOZER BLADE			c- Max. digging depth				1	460"
Width x Height	mm	680/840 × 180	d- Max. digging height				2	730"
Working Ranges (height/depth)	mm	160/210	e- Max. dumping clearance				1	940"
SIDE DIGGING MECHANISM			f- Min. dumping clearance				850
Type		Boom Swing	g- Max. vertical wall digging depth				1	160"
To the left	degree	45	h- Min. swing radius (at swing)				1	210 (985)"
O set Angle
To the right	degree	85	i- Dozer blade (height/depth)				160/210

	Unit: mm
MODEL	SK08
a- Max. digging reach	2	830"
b- Max. digging reach at ground level	2	730"
c- Max. digging depth	1	460"
d- Max. digging height	2	730"
e- Max. dumping clearance	1	940"
f- Min. dumping clearance	850
g- Max. vertical wall digging depth	1	160"
h- Min. swing radius (at swing)	1	210 (985)"
i- Dozer blade (height/depth)	160/210

Safety

Preventing damage to hydraulic cylinders and piping
Bucket cylinder hose inside the arm Hose guard cover on back of Boom Cylinder guard cover Dozer cylinder protection.

Tables

SK08	Bucket: without Shoe: 180 mm
B	A	Mini	1.5 m	2.0 m	Maxi	Radius

2.0 m	kg	—	—	—	—	—	—	190	160	1	860"
1.5 m	kg	—	—	*240	200	190	140	150	130	2	220"
1.0 m	kg	340	280	250	210	170	140	130	110	2	390"
0.5 m	kg	310	230	250	200	170	170	130	110	2	410"
G. L.	kg	310	240	230	190	170	140	120	110	2	300"
-0.5 m	kg	—	—	250	200	170	130	160	130	2	030"
-1.0 m	kg	—	—	—	—	—	—	*230	*210	1	450"

MODEL	SK08
Type		SK08
PERFORMANCE
Bucket Capacity	m3	0.022
Travel Speed	km/h	1.8
Swing Speed	min-1 (rpm)	8.4
Gradeability	% (degree)	58 (30)
Drawbar Pulling Force	kN	9.8
Bucket Digging Force	kN	10.0
Arm Crowding Force	kN	5.9
WEIGHT
Machine Mass	kg	1	035"
Ground Pressure	kPa	27.9
Shoe Type		Rubber
