HD50V5 Kato excavator specs & dimensions (2023 - 2026)

Weight: 4.912t – Transport length: 5.283m – Transport width: 1.981m – Bucket capacity: 0.142m³ – Bucket capacity min.: 0.142m³ – B…

Weight: 4.912t – Transport length: 5.283m – Transport width: 1.981m – Bucket capacity: 0.142m³ – Bucket capacity min.: 0.142m³ – Bucket width: 0.61m

Check out detailed specifications, information and technical data for Kato HD50V5 excavator manufactured between 2023 - 2026. Get more in-depth insight with Kato HD50V5 digger specifications. See information, like: Weight: 4.912t – Transport length: 5.283m – Transport width: 1.981m – Bucket capacity: 0.142m³ – Bucket capacity min.: 0.142m³ – Bucket width: 0.61m and more.

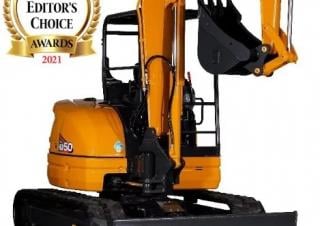

Mini Excavators Kato HD50V5

Technical specs - HD50V5 Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.912 t
Transport length
5.283 m
Transport width
1.981 m
Bucket capacity
0.142 m³
Bucket capacity min.
0.142 m³
Bucket width
0.61 m
Max. Reach horizontal
6.198 m
Dredging depth
3.835 m
Model series
B
Engine manuf.
Kubota
Engine type
V2403-CR-E5B
Engine power
32 kW
Revolutions at max torque
2400 rpm

More technical details, like: transport height, bucket capacity max., track width, standard tyres, driver protection, tear-out force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD50V5 FAQ

When was the Kato HD50V5 manufactured?

The Kato HD50V5 was first produced in 2023.

How much does the Kato HD50V5 mini excavator weigh?

The Kato HD50V5 mini excavator weighs 4.91 tons.

What are the transport dimensions of the Kato HD50V5 mini excavator?

The Kato HD50V5 has a transport length of 5.28 meters and a transport width of 1.98 meters.

What are the excavation performance specifications of the Kato HD50V5 mini excavator?

The Kato HD50V5 mini excavator has a dredging depth of 3.835 meters and a maximum horizontal reach of 6.198 meters.

What are the bucket specifications of the Kato HD50V5 mini excavator?

The Kato HD50V5 has a bucket capacity of 0.142 cubic meters, a minimum bucket capacity of 0.14 cubic meters, and a bucket width of 0.61 meters.
